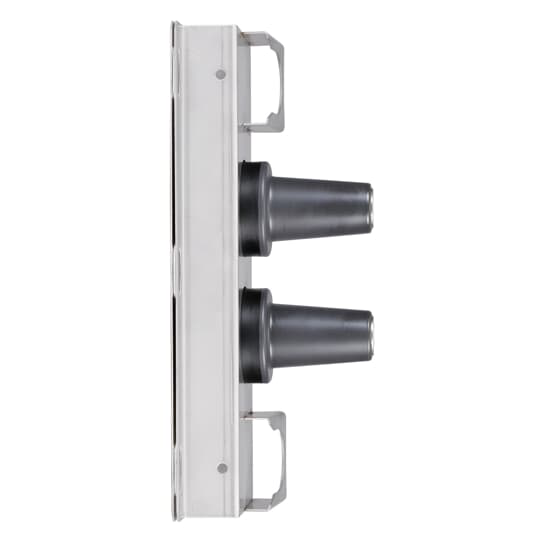

Product image for ABB Elastimold K650-J2 15/25kV 600 Series Deadbreak 2-Point Junction
Email

ABB Elastimold K650-J2 15/25kV 600 Series Deadbreak 2-Point Junction

Manufacturer: Blackburn / Thomas & Betts | Catalog # K650-J2 | Cooper Electric Part # 585695
$934.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
15/25kV 600 Series Deadbreak 2-Point Junction

Technical Information

Applications
Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
Connection Type
Push-In
Material
Rubber
Size
5.87 inches (149. mm) Tall, 6.75 inch (171.5 mm) Wide, 15.00 inch (381.0 mm) Long, 4.00 inch (101.6 mm) Center Junction to Center Junction. 5.50 inch (139.7 mm) Center Slot to Center Slot on Short Side, 12.00 inch (304.8 mm) on Long Side, and 1.50 inch (38.1 mm) Center Slot from Edge on Long Side.
TC Connection
Push-In
Temperature Rating
-40 To 65 degrees C
Type
2-Way Junction

Manufacturer Information

Brand
Elastimold

General Product Info

12-Digit UPC
783786649006
GTiN
00783786649006
Product UPC
78378664900
Application
  • 600 Series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits.
Notes
  • Two - six-position multi-point junctions shown on pages H-20 - H-21
  • For 900-amp ratings, substitute 675 for 650 and 655; 676 for 656; K675 for K650 and K655; K676 for K656; 775 for 750 and 755; 776 for 756 and 2x for 0x in the catlog number. The 900-amp rating requires copper current-carrying connector components and copper conductor cable.
  • Rubber junction with stainless steel mounting plate and back plate. Add \"-U\" for rubber junction with stainless steel mounting plate, back plate and adjustable mounting bracket. Add \"-4\" for rubber junction only. Add \"-5\" for rubber junction, stainless steel U-straps and back plate.
  • Two - six-position multi-point junctions
