3M 7000132405 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7000132405 | Cooper Electric Part # 585041
$0.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

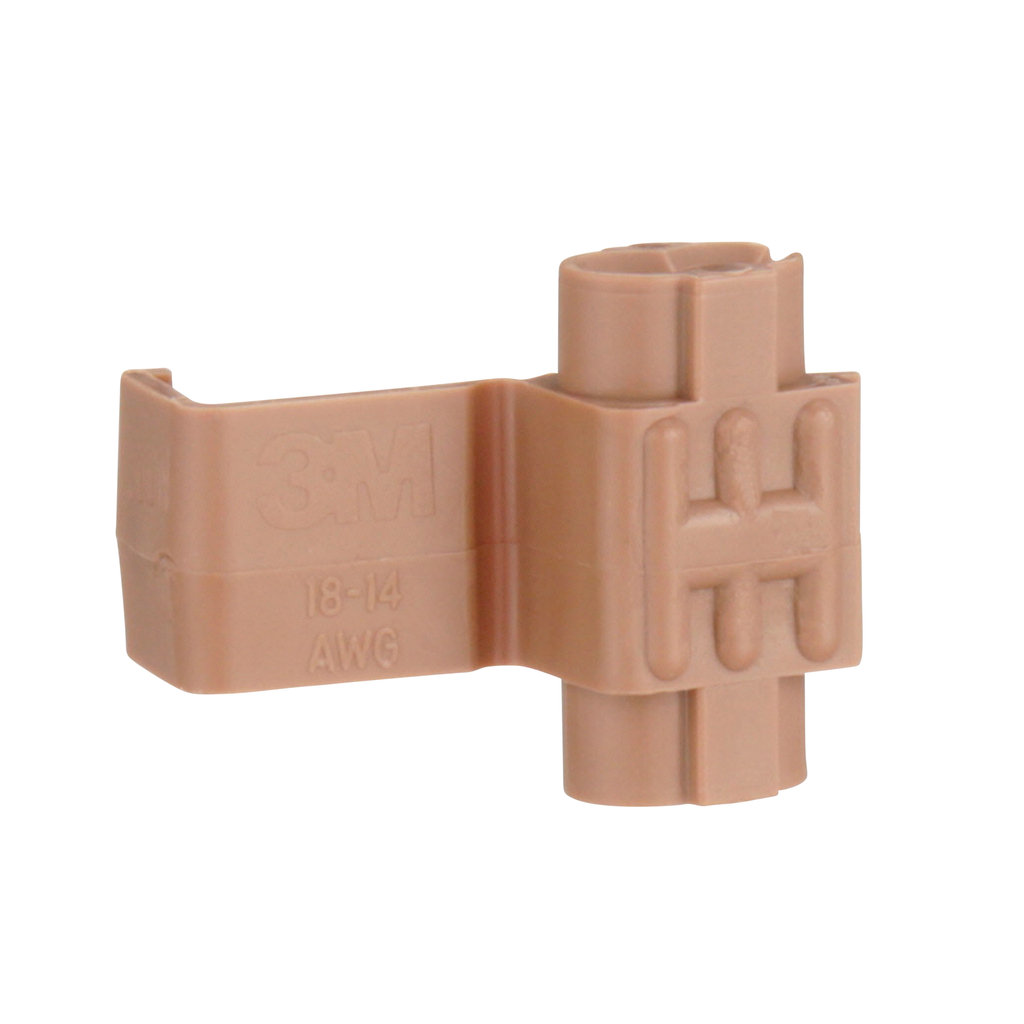

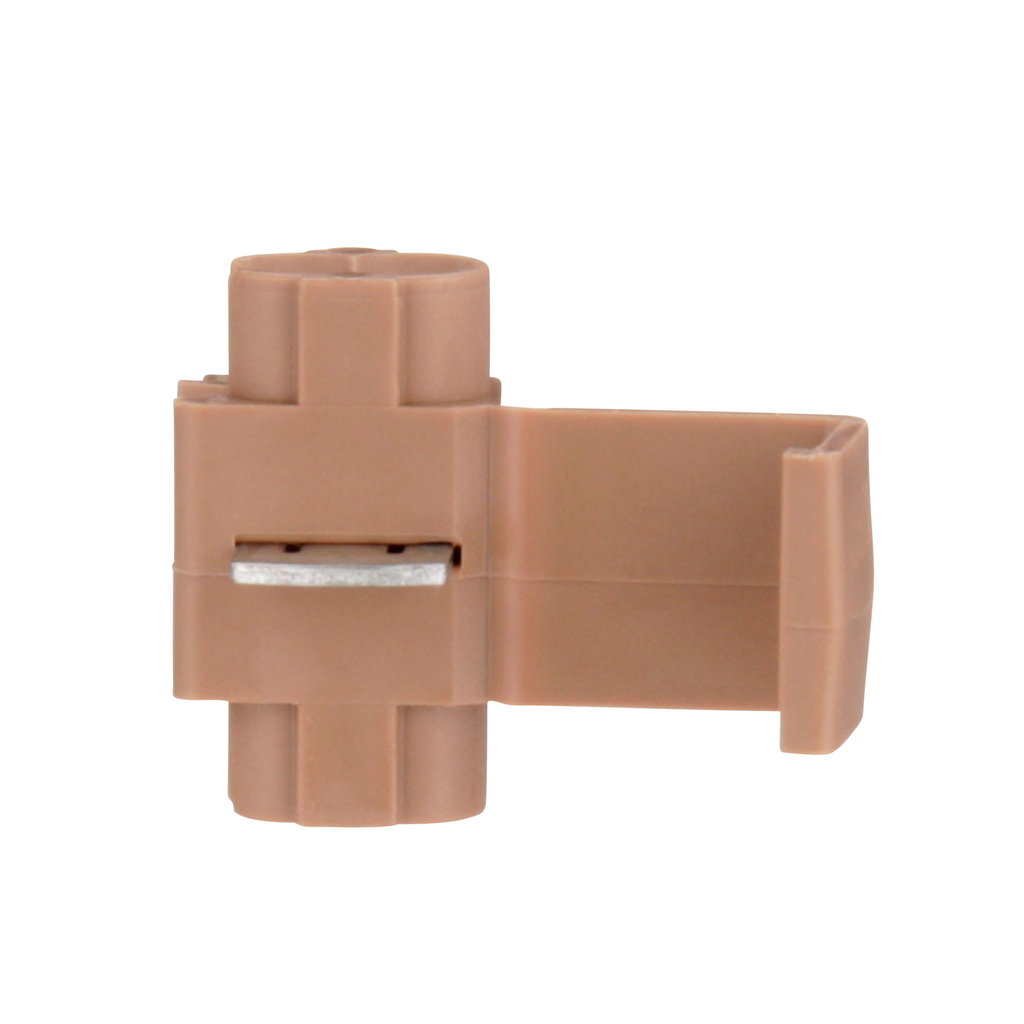

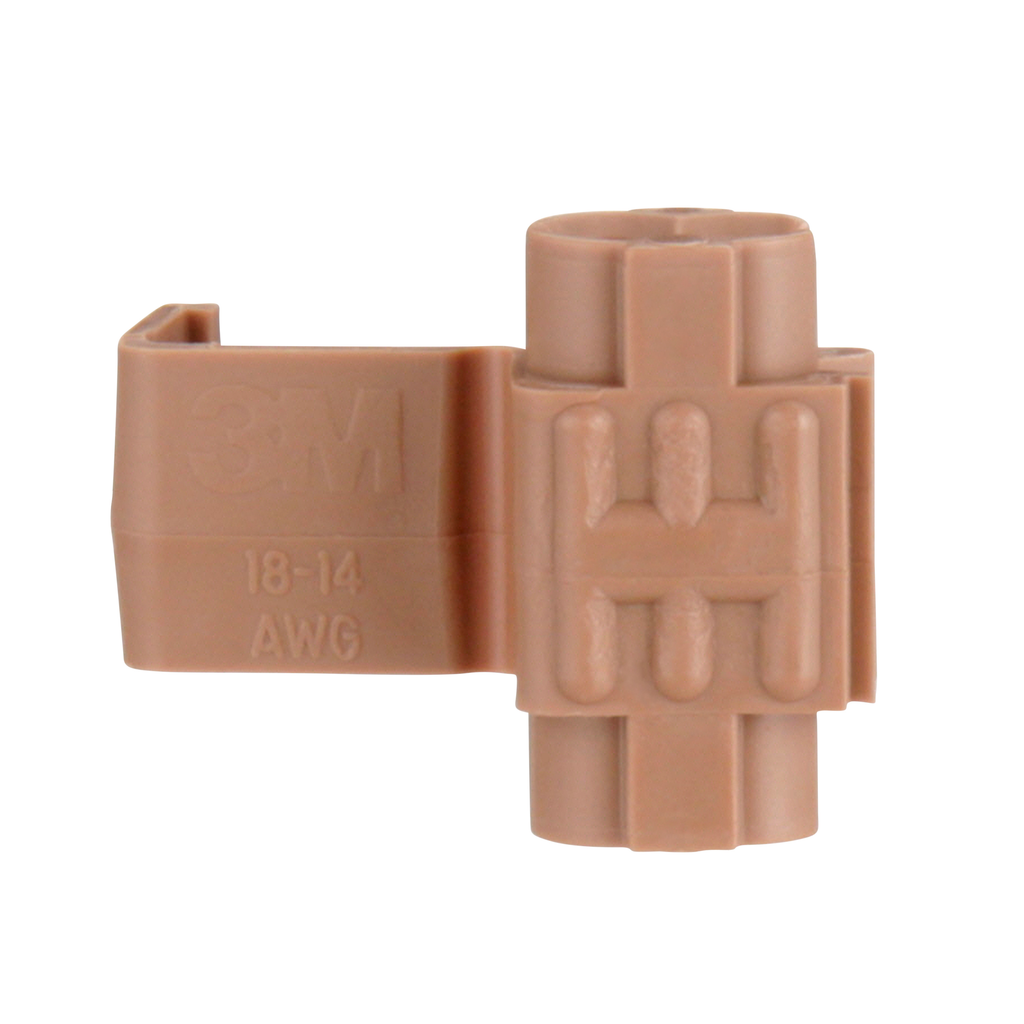

3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a wire end (tap) to a through (run) wire and insulates the connection. It has a maximum insulation O.D. diameter of 0.190 inches (4.82 mm) and an operating temperature of 221 degrees Fahrenheit (105 degrees Celsius). The suggested application tool for this connector is the 3M™ Scotchlok™ Crimping Tool, E-9BM.

Technical Information

Conductor Size
14 AWG
Connection Type
Double Run Or Tap
Material
Plastic
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-16 AWG / 14 AWG Stranded

Packaging

Units Per Case
5000

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007095132
Color
Brown
GTiN
10054007095139
Product Type
Connector
Product UPC
05400709513

Certifications and Compliance

Country of Origin
USA
Features
  • Brown polypropylene-insulated connector for parallel splicing
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Accommodates 12 AWG solid/stranded, 10 AWG stranded
  • UL Listed and RoHS 2011/65/EU Compliant
