Leviton 25249-TFB 15 Amp 125 Volt NEMA 5-15R 2-Pole 3-Wire Commercial Grade Ivory Tamper-Resistant Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 25249-TFB | Cooper Electric Part # 584472
$172.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Brass-Finish Plate - Ivory Receptacle

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-10 AWG
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Floor Box
NEMA
WD-1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
4.50 H x 3.75 W x 4.50 D IN
Standard
ANSI C-73
Temperature Rating
-40 To 60 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Type
Floor Box Duplex Receptacle
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
FLOOR BOXES and POKE THROUGHS

General Product Info

12-Digit UPC
078477411520
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477411520
Product UPC
07847741152

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-15R
Features

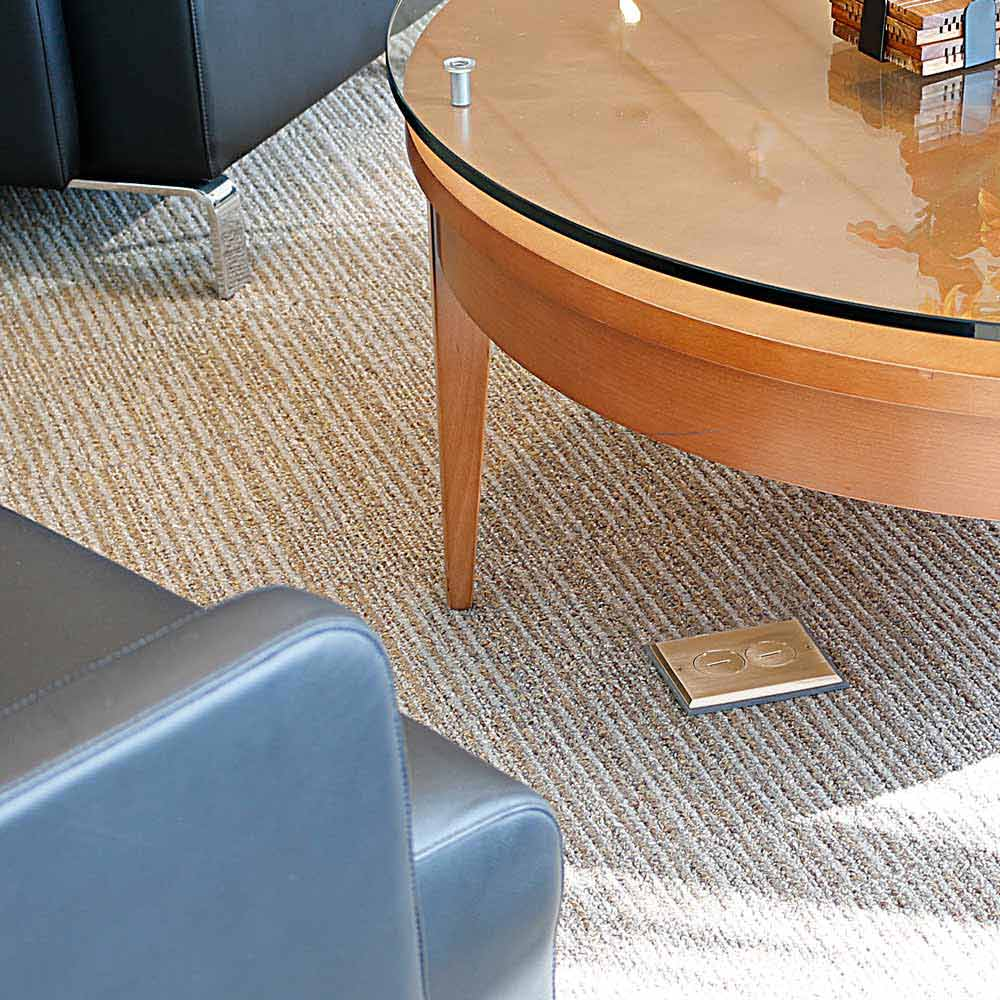

  • For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
