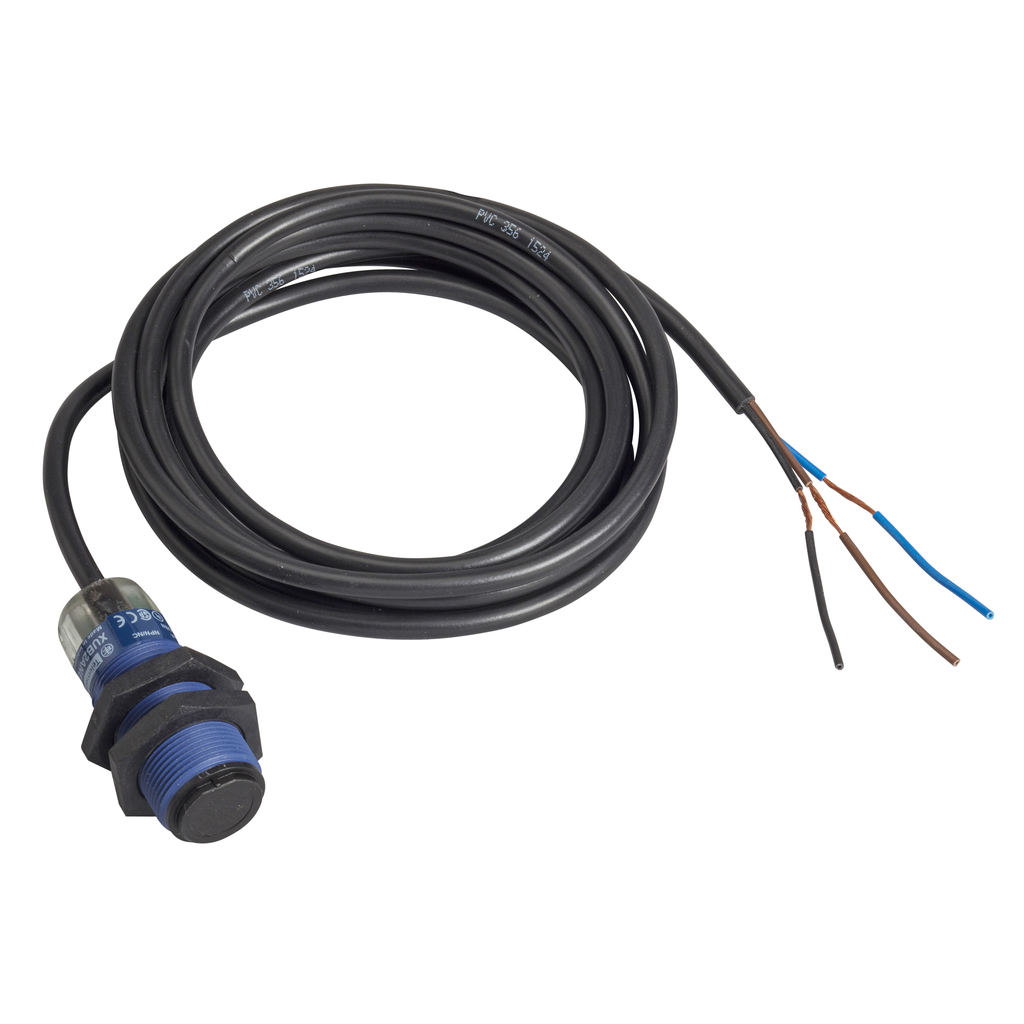

Product image for TES XUB1APBNL2 Photoelectric sensors XU, XUB, reflex, Sn 4 m, 12...24 VDC, cable 2 m
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XUB1APBNL2 Photoelectric sensors XU, XUB, reflex, Sn 4 m, 12...24 VDC, cable 2 m

Manufacturer: TES Electric | Catalog # XUB1APBNL2 | Cooper Electric Part # 584471
$63.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This design 18 single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
35 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Operating Cycles
<= 500 Hz
Operating Temperature
-25-55 degrees C
Output
1 NC;PNP;Solid state;Discrete
Sensing Range
4-4 M REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M)
Size
0.71 in
Storage Temperature
-40-70 degrees C
TC Connection
CABLE
Type
Reflex;Photo-electric sensor;Cylindrical M18;General purpose single mode
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
785901928737
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
GTiN
03389110148732
Product UPC
78590192873

Dimensions

Cable Length
2 m
Diameter
18 mm
Length
46 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Indonesia
