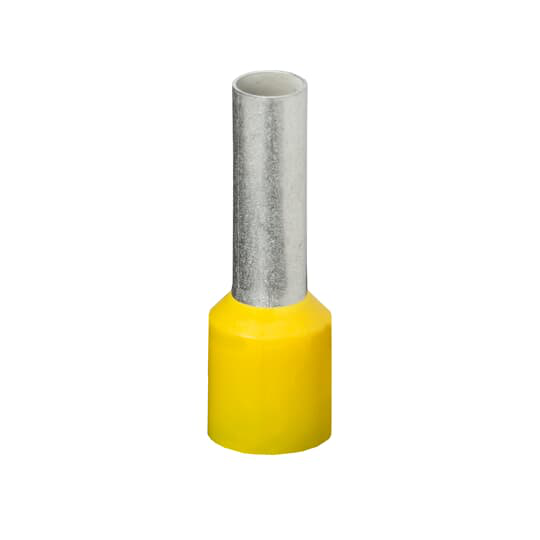

Product image for Thomas & Betts F4002 18-17 AWG 1 mm.. Wire Range Nylon Insulated Old DIN Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F4002 18-17 AWG 1 mm.. Wire Range Nylon Insulated Old DIN Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F4002 | Cooper Electric Part # 583127
$42.76/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

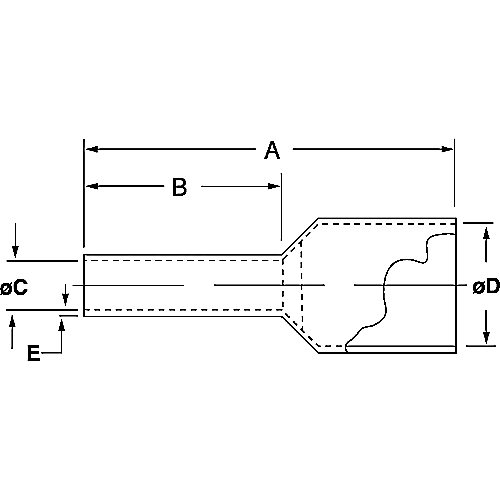

Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .059 Inches/1.5mm, Base Diameter .118 Inches/3.0mm, Wire Range #18-17 AWG/1.00mm2, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
18-17 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
8 mm
Temperature Rating
105 degrees C
Type
Standard, Old DIN
Wire Size
18-17 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336718
Color
Yellow
Finish
Tin Plated
GTiN
05415022255034
Product UPC
78621033671
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
