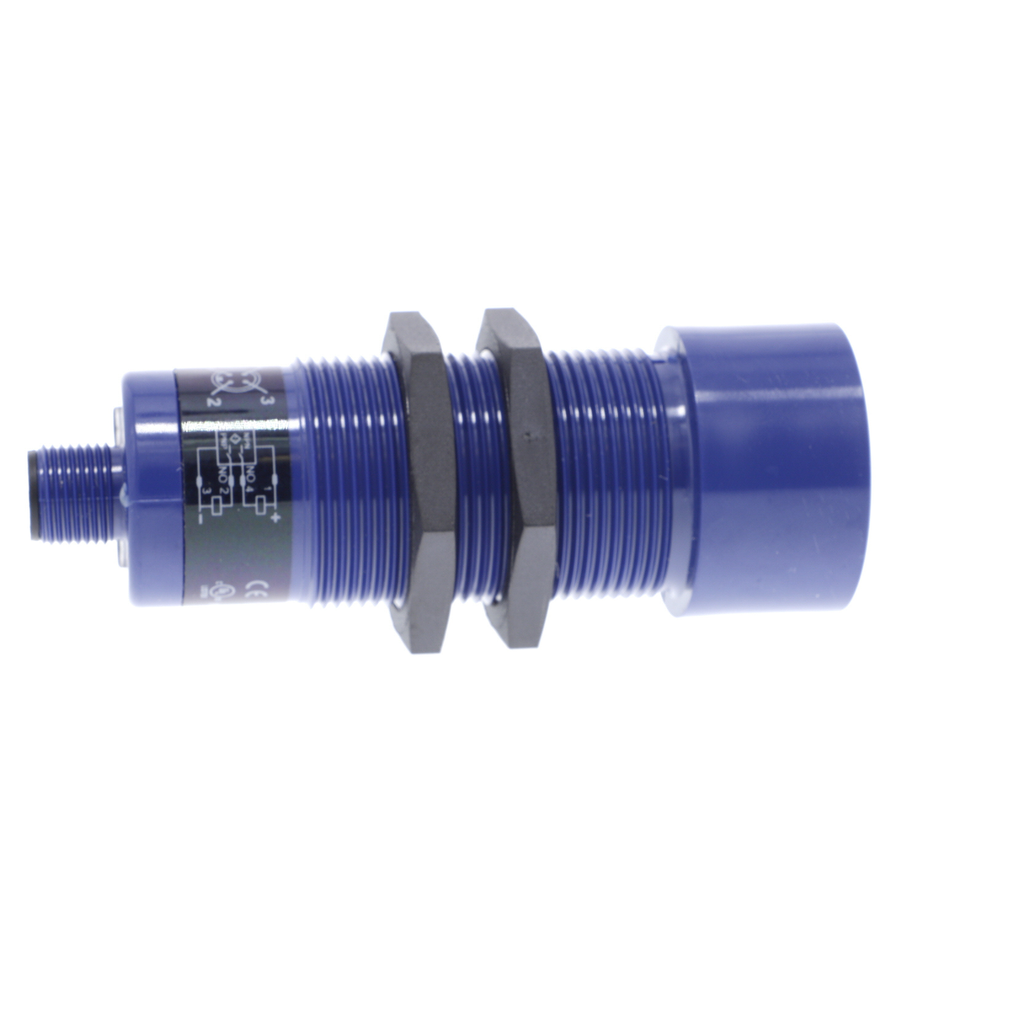

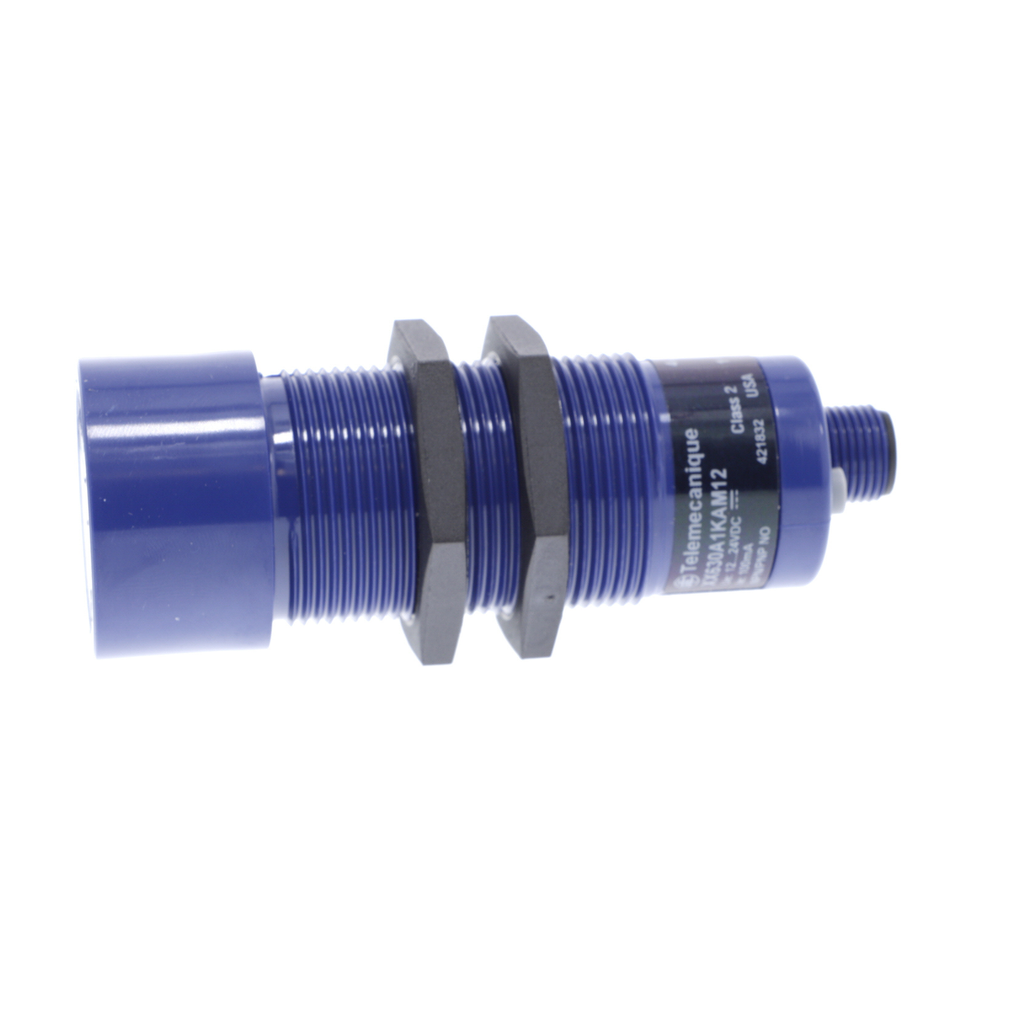

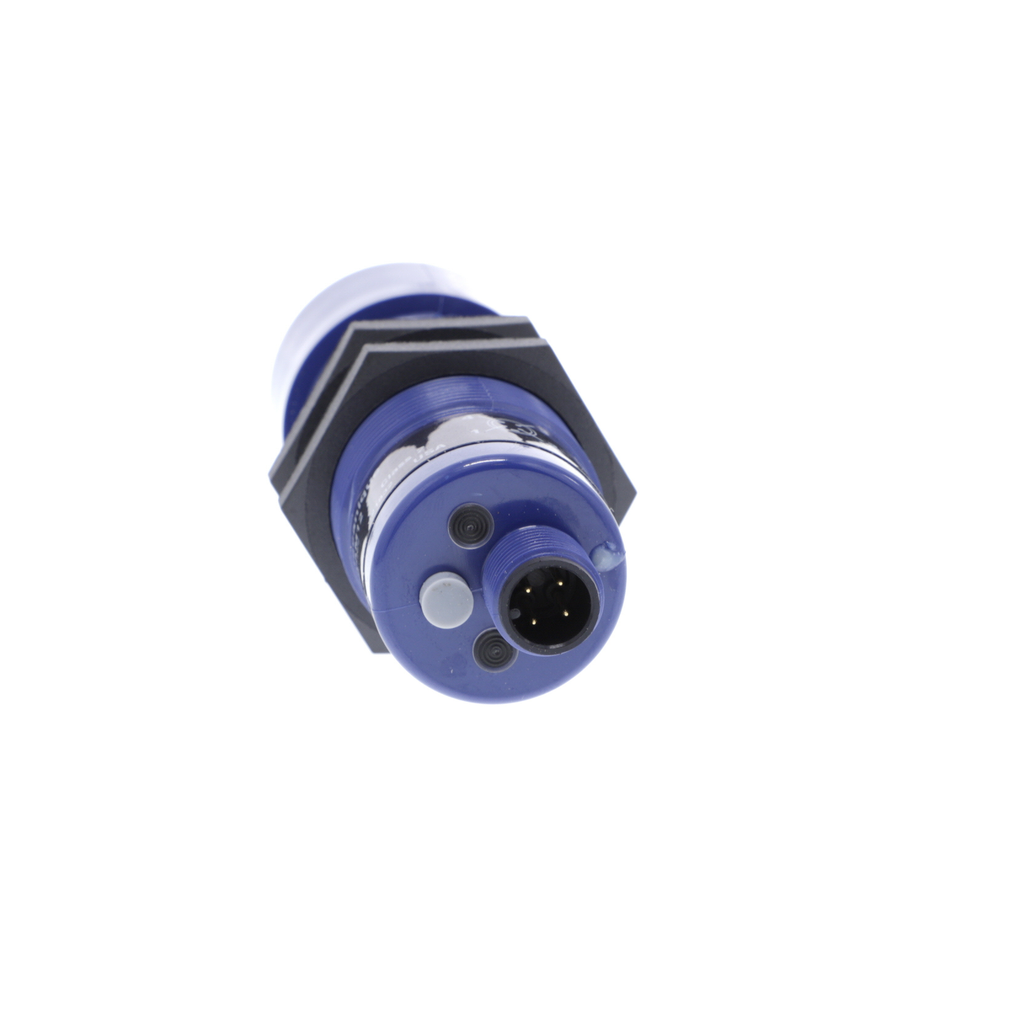

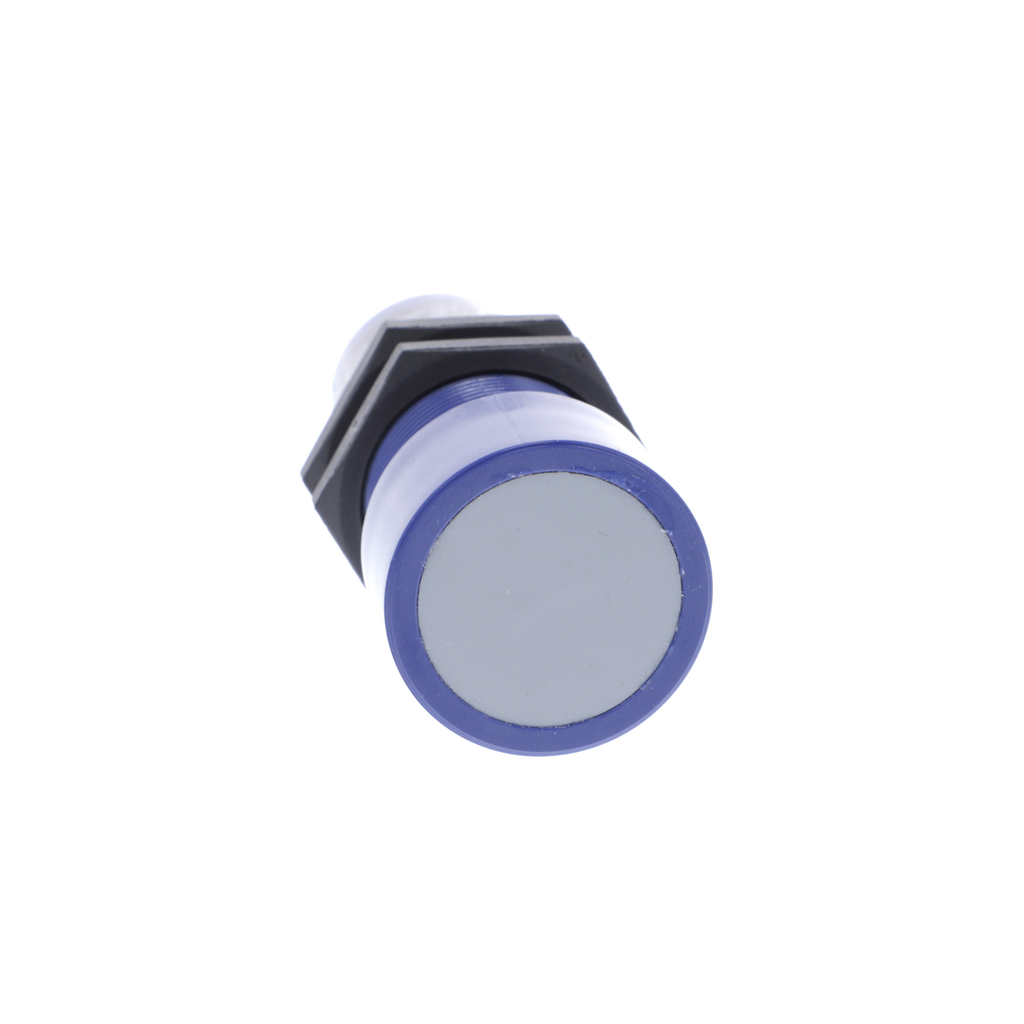

Square D XX630A1KAM12 24 VDC 100 mA NO/PNP/NPN 4-Wire Polarized Retroreflective Ultrasonic Sensor

Manufacturer: Square-D / Schneider | Catalog # XX630A1KAM12 | Cooper Electric Part # 581641
$503.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This cylindrical (diffuse system) ultrasonic sensor has a ULTEM case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. ULTEM® high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +60.C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.

Technical Information

Applications
GENERAL PURPOSE
Beam Angle
10
Current
50 mA
Enclosure
ULTEM
Enclosure Material
ULTEM
Indicator
SETTING-UP ASSISTANCE 1 LED GREEN/RED (FLASHING))
Material
Plastic
Net Weight
0.091 kg
Operating Temperature
0-60 Adegrees C
Sensing Range
0.173.25 ft (0.0510.991 m)
Standard
IEC 60947-5-2
Storage Temperature
-40-80 degrees C
Thread Type
M30 X 1.5
Type
Cylindrical M30;Ultrasonic sensor

Manufacturer Information

Brand
Telemecanique
Sub Brand
XX6

General Product Info

12-Digit UPC
785901376347
GTiN
03389110277548
Product UPC
78590137634
Weight
0.20 lb

Dimensions

Depth
85 mm
Height
35 mm
Warranty Length
18 mth
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCSAus,UL
Country of Origin
USA
