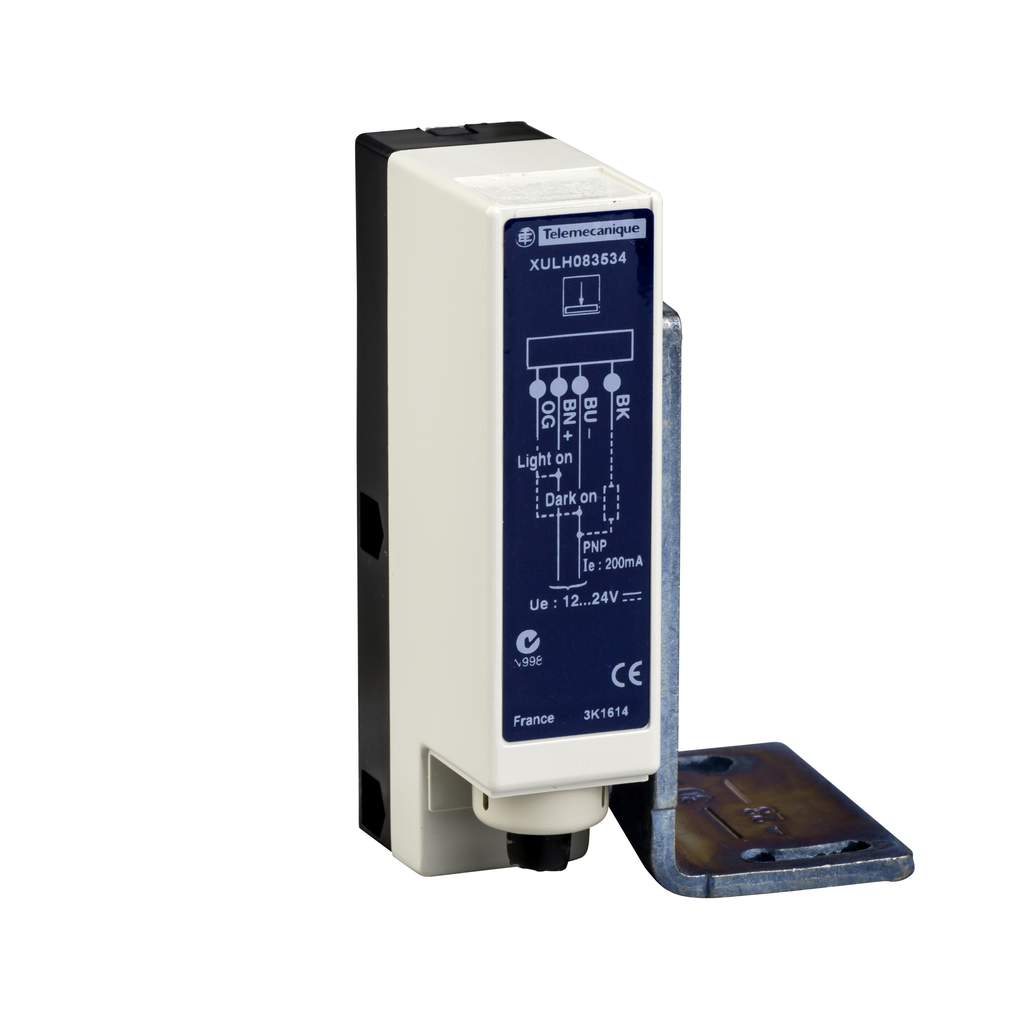

Product image for Square D XULH083534 24 VDC 200 mA PNP 3-Wire Thru Beam Photoelectric Sensor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D XULH083534 24 VDC 200 mA PNP 3-Wire Thru Beam Photoelectric Sensor

Manufacturer: Square-D / Schneider | Catalog # XULH083534 | Cooper Electric Part # 581005
$87.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1
photo-electric sensor - XUL - thru beam - Sn 8m - 12..24VDC - cable 2m

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
35 mA
Enclosure
ABS,IP671 CONFORMING TO NF C 20-010-IP67 CONFORMING TO IEC 60529
Enclosure Material
ABS Plastic
Material
Plastic
Operating Cycles
<= 250 HZ
Operating Temperature
-25-55 Adegrees C
Output
1 NO OR 1 NC PROGRAMMABLE,PNP,DISCRETE,SOLID STATE
Response Time
2m s
Sensing Range
8-8 M THRU BEAM NEED TRANSMITTER XULK030,> 16.4...49.21 FT (> 5...15 M)
Size
18 MM,35 MM,70 MM
TC Connection
CABLE
Type
COMPACT,GENERAL PURPOSE SINGLE MODE,PHOTO-ELECTRIC SENSOR,THRU BEAM
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Osisense
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
785901699422
GTiN
03389110699425
Product UPC
78590169942
Weight
0.43 lb

Dimensions

Cable Length
6.56 ft
Chain Cable Diameter
0.24 in
Depth
1.38 Inch
Height
2.76 Inch
Warranty Length
18 mth
Width
0.71 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CSA,UR
Country of Origin
France
