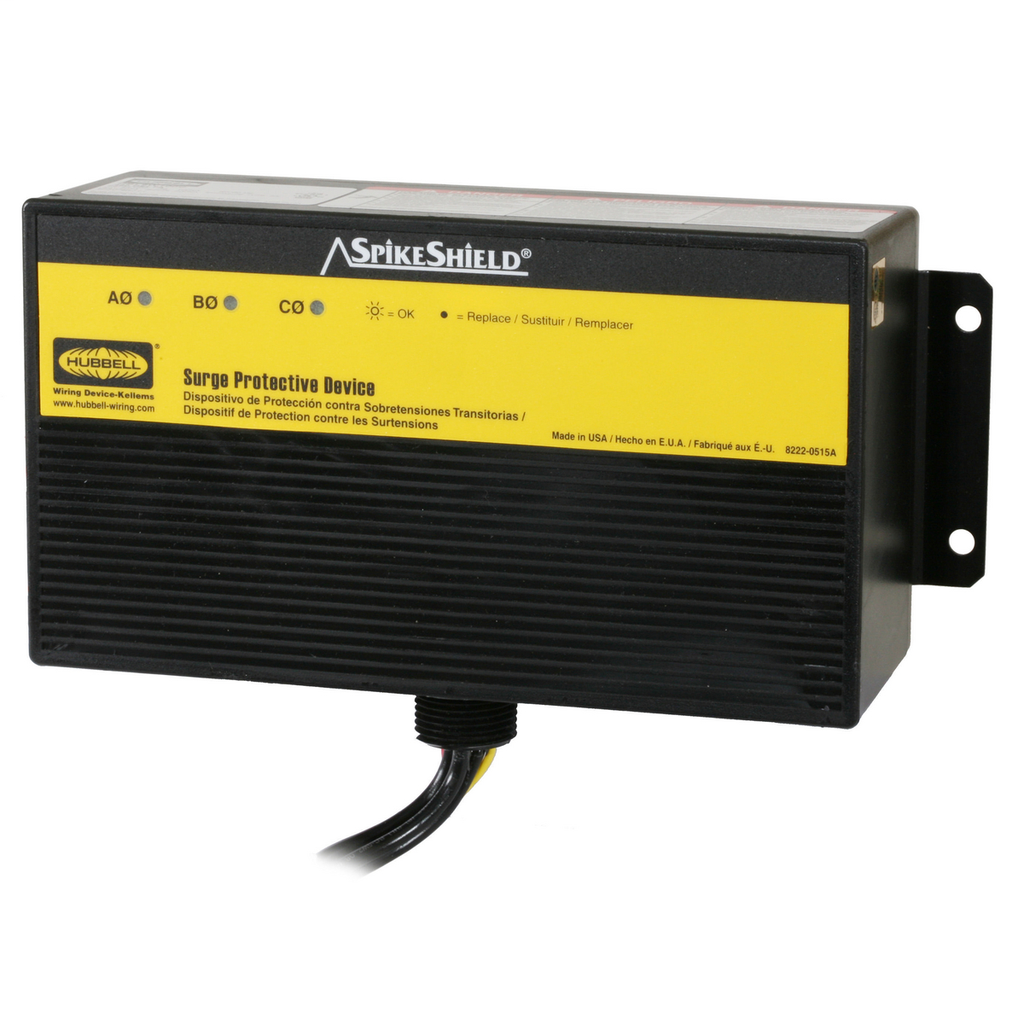

Product image for Hubbell HBL4W100C SPD BLOCK, 100KA, 120/208V
Email

Hubbell HBL4W100C SPD BLOCK, 100KA, 120/208V

Manufacturer: Hubbell Wiring Device | Catalog # HBL4W100C | Cooper Electric Part # 580129
$4,328.01/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Surge Protective Devices, Surface Mount Block, 100KA, 3-Phase 120/208V AC

Technical Information

Applications
For Surface Mount Brick with Leads
Enclosure Rating
4X
Enclosure Type
NEMA 4X
Frequency
60 Hz
Material
Steel
Mounting Type
Screw, Direct
Nominal Discharge Current
100 kA
Number of Phases
3 Phase
Operating Temperature
-40 To 65 degrees C
Response Time
5 Nanosecond
Size
100kA Peak
Standard
CULus UL1449-3Rd Edition Type 2 Spd
TC Connection
Leads
Temperature Rating
-40 to 149 degrees F
Terminal Type
Lead
Type
Wired-In Branch, Type 2
Voltage
120 VAC Nominal, 208 VAC Continuous Wye

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585120799
Class
C
Environmental Conditions
Indoor or Outdoor Use Only
GTiN
00783585120799
Product Series
In Panels,Wired
Product UPC
78358512079

Dimensions

Height
5.3 Inch
Length
10.9 Inch
Width
7.600 in

Certifications and Compliance

Country of Origin
USA
Features
  • Brick design for space consumption
  • NEMA 4X housing and a 200kA SCCR rating
  • Dry Contacts, NEMA 4X
Performance
  • Electrical - Diagnostics - Green Status LEDs, Audible Alarm, Dry Contacts
  • Electrical - Surge Current per Phase - 100kA
  • Environmental - Operating Temperature - -40F to 140F (-40C to 60C)
  • Mechanical - Terminal Accommodation - #10 AWG 18.0\" Wire Leads
Voltage Rating
  • Wye 120 VAC
  • Wye 208 VAC
