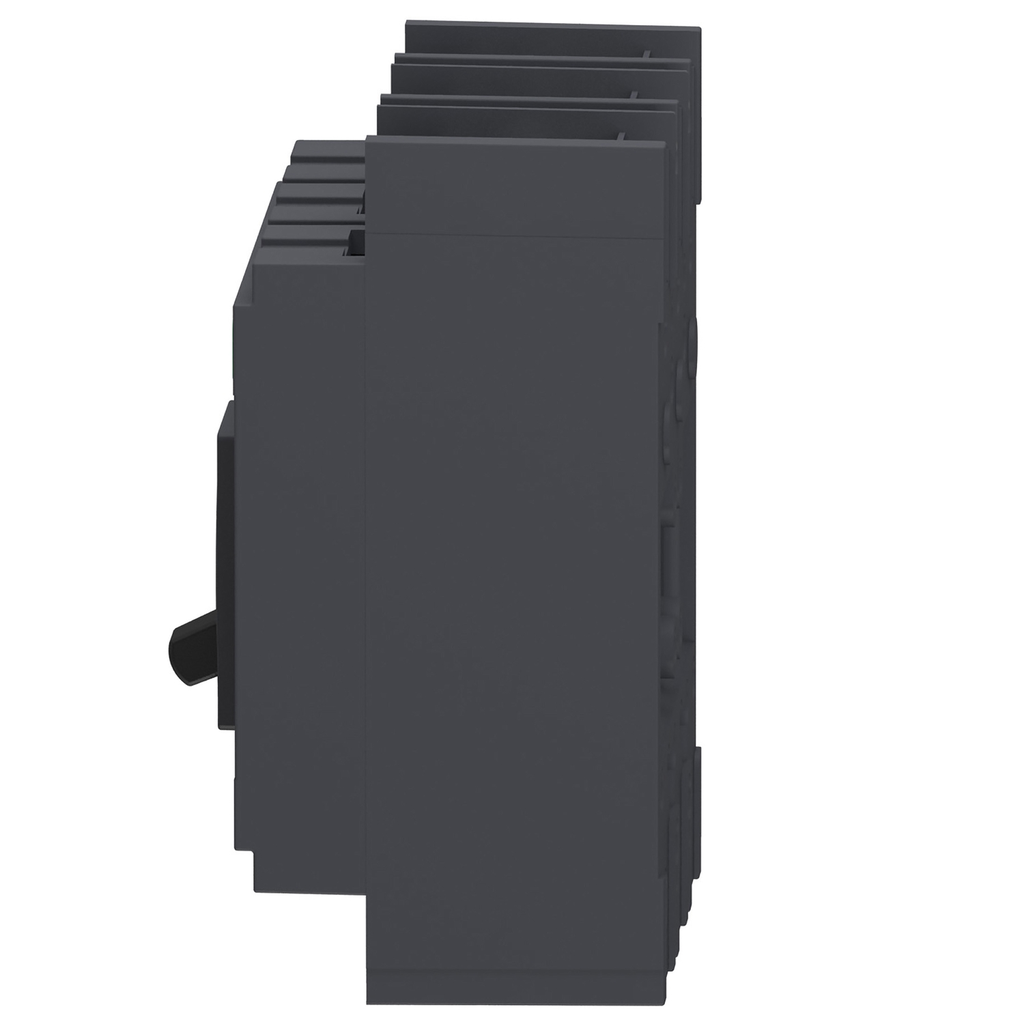

SQD QGL32110 Circuit breaker, Power

Manufacturer: Square-D / Schneider | Catalog # QGL32110 | Cooper Electric Part # 578773
$3,663.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole

Technical Information

Amperage
110 Amp
Frame
G
Interrupt Rating
65 kAIC
Line Rated Current
110-110 A
Mounting Type
Unit Mount Lug)
Number of Poles
3 Pole
Standard
CSA,NEMA,NOM-003-SCFI-2000,UL
Strip Length
22 mm
TC Connection
LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER
Trip Point
2400-2400 A
Trip Range
110 A,1200 A,2400 A
Trip Type
THERMAL-MAGNETIC
Type
Circuit breaker
Voltage
240 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901415350
GTiN
00785901415350
Product UPC
78590141535

Dimensions

Depth
3.93 Inch
Height
6.47 Inch
Length
22 mm
Warranty Length
18 mth
Width
4.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
CSA,NOM,UL
Country of Origin
Mexico
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=48996-020-01&p_File_name=48996-020-01.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=48996-020-01&p_File_name=48996-020-01.dxf
Mounting Mode
  • unit mount lug)
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Mechanical Durability
  • 1000 cycles loaded
  • 5000 cycles no load
Carbon Footprint Of The Installation Phase A5
  • 0.41436454334715167
  • 0.4 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 4 kg CO2 eq.
  • 3.620324773879172
Electrical Connection
  • lugs, load
  • lugs, line
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 15 kg CO2 eq.
  • 14.700646228636082
Accessories
  • QBMIK
  • QBPA
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 24 kg CO2 eq.
  • 23.949989910386538
Accessory Products
  • QBMIK
  • QBPA
Persona Type Ids
  • LC
  • OM
  • OM8
  • PB
Carbon Footprint Of The Distribution Phase A4
  • 0.6198783862898292
  • 0.6 kg CO2 eq.
Tightening Torque
  • 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Local Signalling
  • 1 trip indicator green)
UE Rated Operational Voltage
  • 240 V AC 50/60 Hz UL
Product Certifications
  • UL
  • CSA
  • NOM
UIMP Rated Impulse Withstand Voltage
  • 8 kV UL
