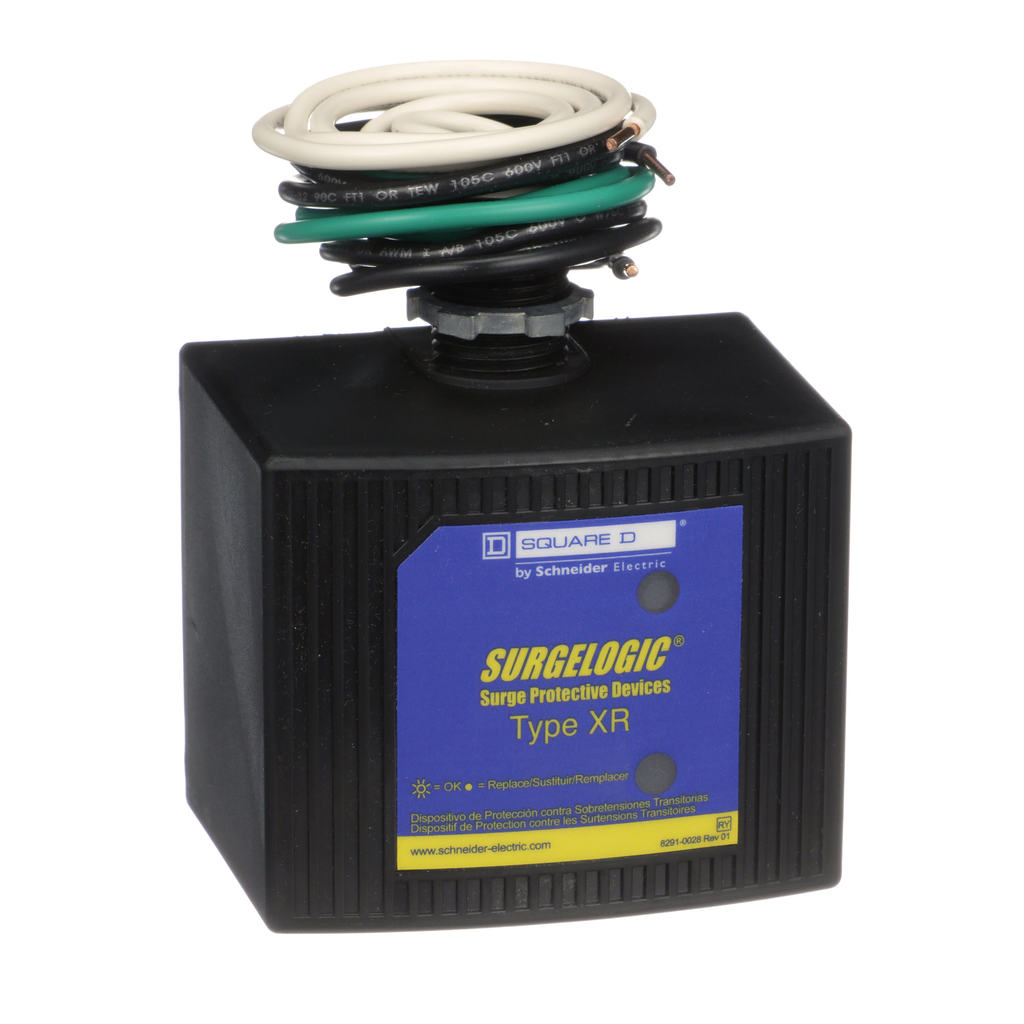

Square D TVS120XR50S 120/240 VAC 50 kA 1-Phase 3-Wire NEMA 4X Modular Surge Protective Device

Manufacturer: Square-D / Schneider | Catalog # TVS120XR50S | Cooper Electric Part # 578297
$315.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Square D™ load center surge protective devices, TVS120XR50S, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Ca

Technical Information

Applications
Side
Enclosure
4X
Enclosure Material
Plastic
Mounting Type
Flush Fixing Kit
NEMA Size
4X
Nominal Discharge Current
10 kA
Number of Phases
1 Phase
Size
24 in
Standard
CSA C22.2 No 8:1986,UL 1449:ed. 4
TC Connection
Wire phase and neutral AWG 12 copper;Wire ground AWG 12 copper
Type
Surge protection device;3-wire
Voltage
120/240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
XR

General Product Info

12-Digit UPC
785901897125
GTiN
00785901897125
Product UPC
78590189712

Dimensions

Cable Length
24 in
Depth
2.68 in
Height
3.58 in
Warranty Length
18 mth
Width
2.99 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Connections Terminals
  • wire phase and neutral AWG 12 copper
  • wire ground AWG 12 copper
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards
  • UL 1449:ed. 4
  • CSA C22.2 No 8:1986
Ue Rated Operational Voltage
  • 120/240 V AC
Local Signalling
  • status LED green per phase normal operation
  • status LED red per phase fault
  • status LED red p
Enclosure Material
  • Black Plastic
