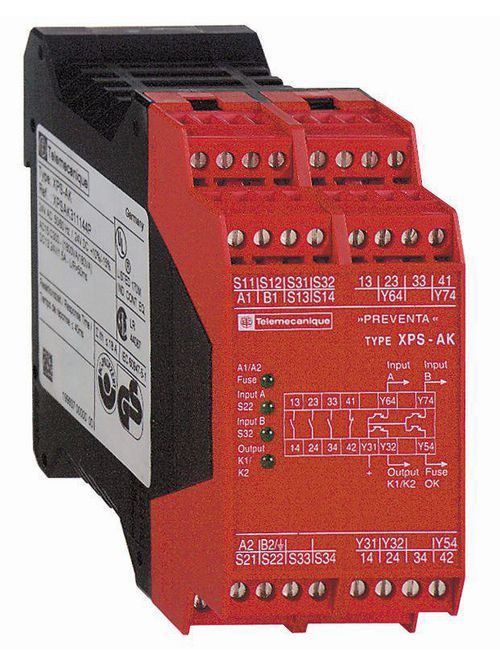

Square D XPSAK311144P 24 VDC 3NO 4-LED Display Safety Relay Module

FOR EMERGENCY STOP, SWITCH, SENSING MAT/EDGES OR SAFETY LIGHT CURTAIN MONITORING,MONITORING OF A MOVABLE GUARD ASSOCIATED WITH 2 SWITCHES AND AUTOMATIC START-MONITORING OF ELECTRO-SENSITIVE PROTECTION EQUIPMENT (ESPE)-SENSING MAT AND EDGES MONITORING-EMERGENCY STOP MONITORING 1-CHANNEL WIRING-EMERGENCY STOP WITH 2 NC CONTACTS MONITORING 2-CHANNEL WIRING-MULTIPLE EMERGENCY STOP MONITORING 2-CHANNEL WIRING-PROXIMITY SENSOR MONITORING-MONITORING OF A MOVABLE GUARD

3 N.O. (INSTANTANEOUS) 1 N.C. - 4 SOLID STATE

1.5 A 24 V DC-13)50 MS RELAY OUTPUT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT

RELAY INSTANTANEOUS OPENING, 3 NO, VOLT-FREE

24 V AC - 15...10 -24 V DC - 15...10

-13degrees To 185 degrees F (-25degrees To 85 degrees C)

CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL

PREVENTA SAFETY MODULE

Preventa

PREVENTA

785901291657

03389110291650

78590129165

18 mth

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Indonesia
