Thomas & Betts G2-12 12 Inch 600 Volt Non-Insulated Standard Ring

Manufacturer: ABB | Thomas & Betts | Catalog # G2-12 | Cooper Electric Part # 57545
$1,382.66/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

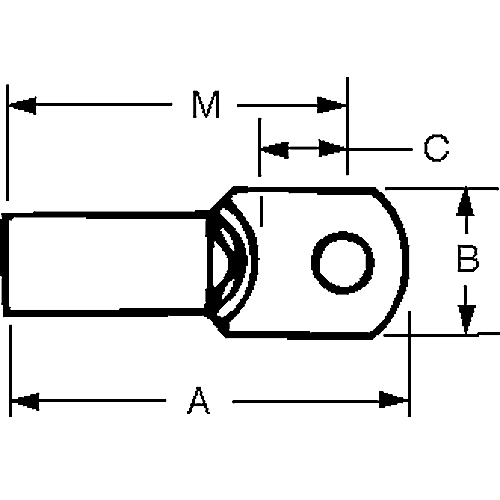

Non-Insulated Tubular Ring Terminal, Length 1.79 Inches, Width .80 Inches, Bolt Hole 1/2 Inch, Wire Range 2/2AN, Copper, Tin Plated

Technical Information

Applications
For Military Applications
Barrel Type
Brazed Seam, Serrated
Conductor Size
2 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Non-Insulated - Tubular
Material
Copper
Standard
UL E9809
Stud Size
1/2 in
Temperature Rating
150 degrees C
Terminal Type
G
Type
Non-Insulated, Large, Tubular
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210871950
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363151630
Product UPC
78621087195

Dimensions

Height
2.9 Inch
Thickness
.05 in
Width
1.1 in
Certifications
  • CSA
  • UL
Notes
  • Not available on Mylar Tape.
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
