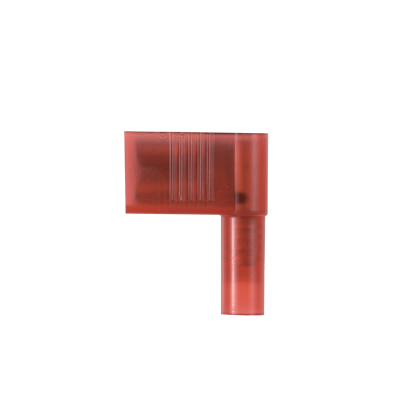

Product image for Panduit DNFR18-206B-L Loose Piece Disconnect
Email

Panduit DNFR18-206B-L Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DNFR18-206B-L | Cooper Electric Part # 573521
$215.17/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in red nylon. It has a tab size of 0.205/0.187 x 0.020 (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.62" (15.7 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
E1 Plus Solid State Relay
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983128037
Color
Amber,Green,Red,White
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983128037
Product Type
Terminals
Product UPC
07498312803
UNSPSC
39121409

Dimensions

Depth
0.6 Inch
Height
0.2 Inch
Length
0.78 Inch
Overall Length
0.78 in
Width
0.62 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
