Thomas & Betts RC1253 #10 Bolt Hole 12-10 AWG Wire Range Insulated Nylon Fork Terminal Flange

Manufacturer: ABB | Thomas & Betts | Catalog # RC1253 | Cooper Electric Part # 573276
$235.11/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

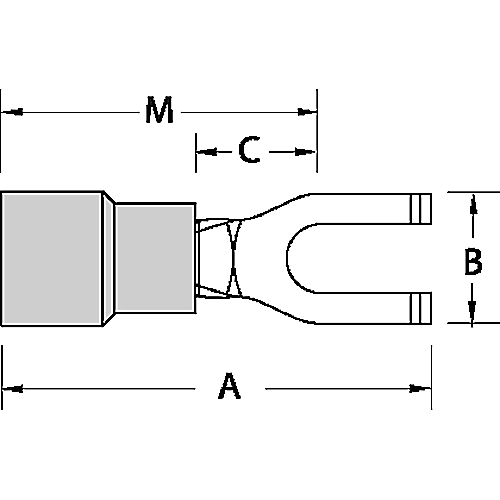

Nylon Insulated Fork Terminal with Flanged Tongue, Length 1.00 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Flanged, Insulated
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210820378
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363159209
Product UPC
78621082037
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
