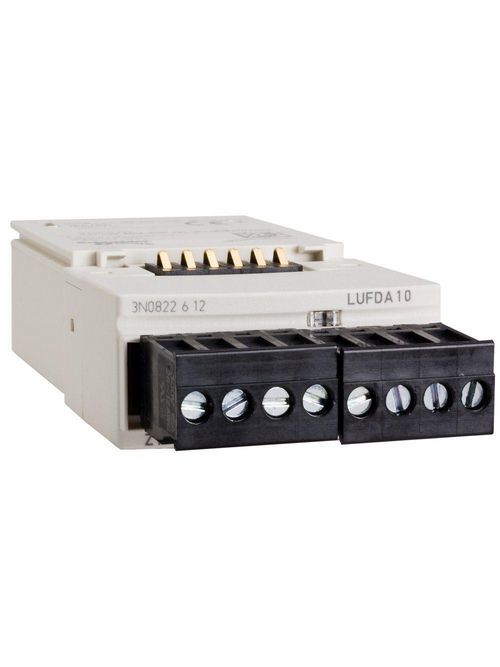

Product image for Square D LUFDA10 24 to 240 VAC/VDC 1NO Screw Clamp Terminal Starter Function Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D LUFDA10 24 to 240 VAC/VDC 1NO Screw Clamp Terminal Starter Function Module

Manufacturer: Square-D / Schneider | Catalog # LUFDA10 | Cooper Electric Part # 572924
$188.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
LUCB;LUCC;LUCD
Contact Configuration
1 NO
Current
1.1 mA
Enclosure
OPEN
Mounting Type
Plug-In
Net Weight
0.055 kg
Operating Temperature
-25C TO 70C
Power Supply
24/250V (POWER FROM CONTROL UNIT)
Reset Type
AUTO OR REMOTE
TC Connection
SCREW CLAMP TERMINALS
Type
Function module

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LUF;TeSys

General Product Info

12-Digit UPC
389110109842
GTiN
03389110109849
Product UPC
78590149845
Weight
0.055 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Country of Origin
France
