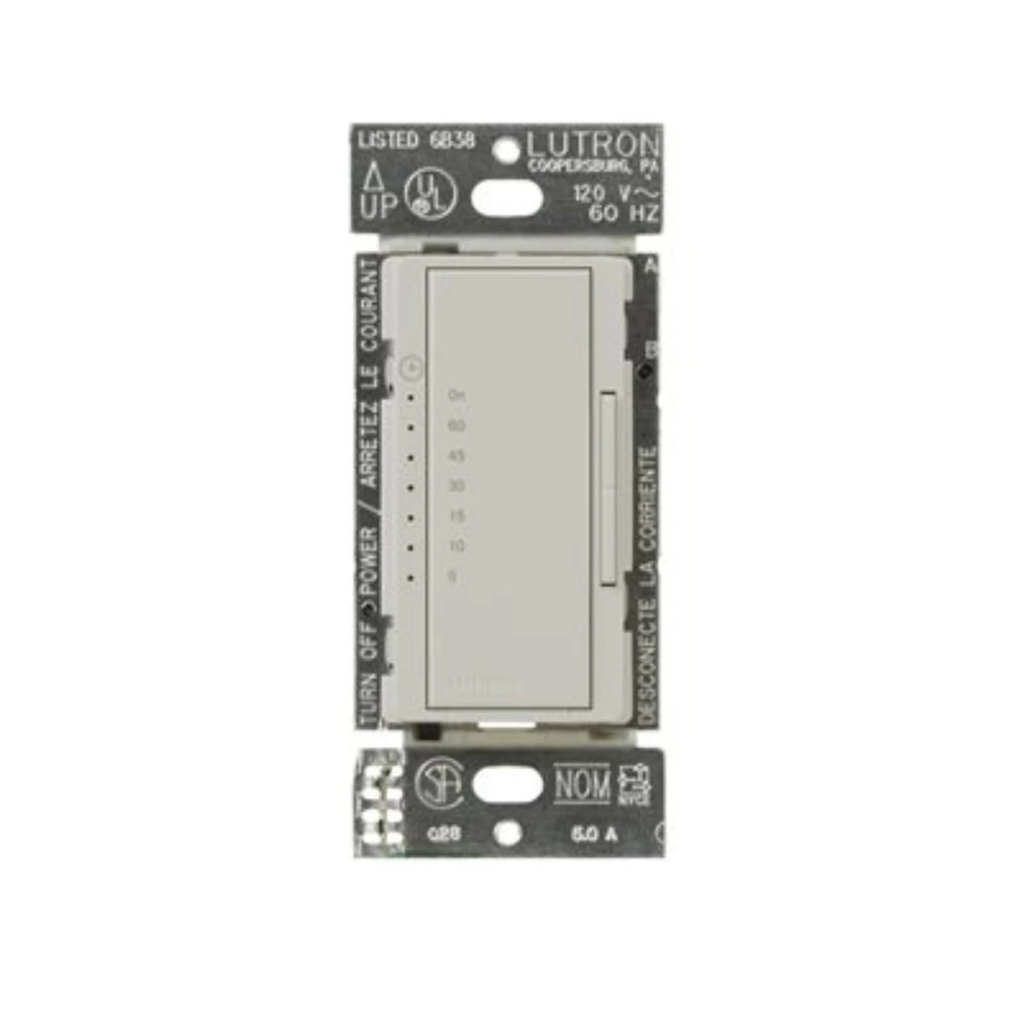

Product image for Lutron MA-T51MN-PD MA TIMER 1H 3-5A ML
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

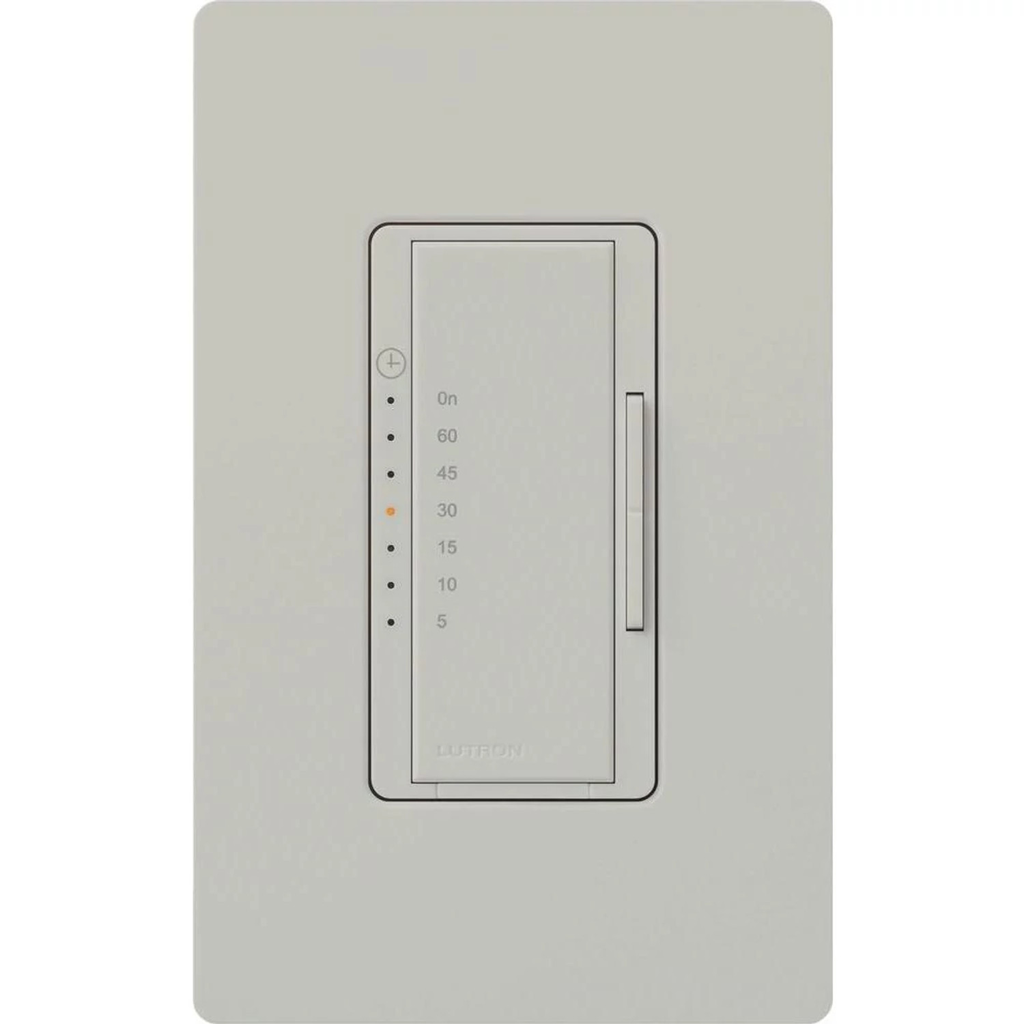

Lutron MA-T51MN-PD MA TIMER 1H 3-5A ML

Manufacturer: Lutron | Catalog # MA-T51MN-PD | Cooper Electric Part # 571799
$61.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general-purpose fans. Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms. Use with lighting. Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action. Touch rocker to adjust countdown time. One minute warning before lights/fan go off. Timer advanced programming features available.

Technical Information

Amperage
5 Amp
Applications
Lighting
Connection Type
Screw-Type Terminals
Contact Configuration
N-O
Contact Rating
5 A
Enclosure
Plastic
Enclosure Material
Plastic
Insulation Material
Plastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Size
2.94 in
Standard
ANSI/IEEE,CUL,IEC,UL
TC Connection
Screw terminal
Type
Countdown Timer Control Switch,Multi-location/single-pole
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557291071
Color
Palladium
Finish
Satin
GTiN
00027557291071
Product UPC
02755729107

Certifications and Compliance

Country of Origin
Mexico
Features
  • Includes (1) Maestro Countdown Timer Switch with Neutral; Satin Finish

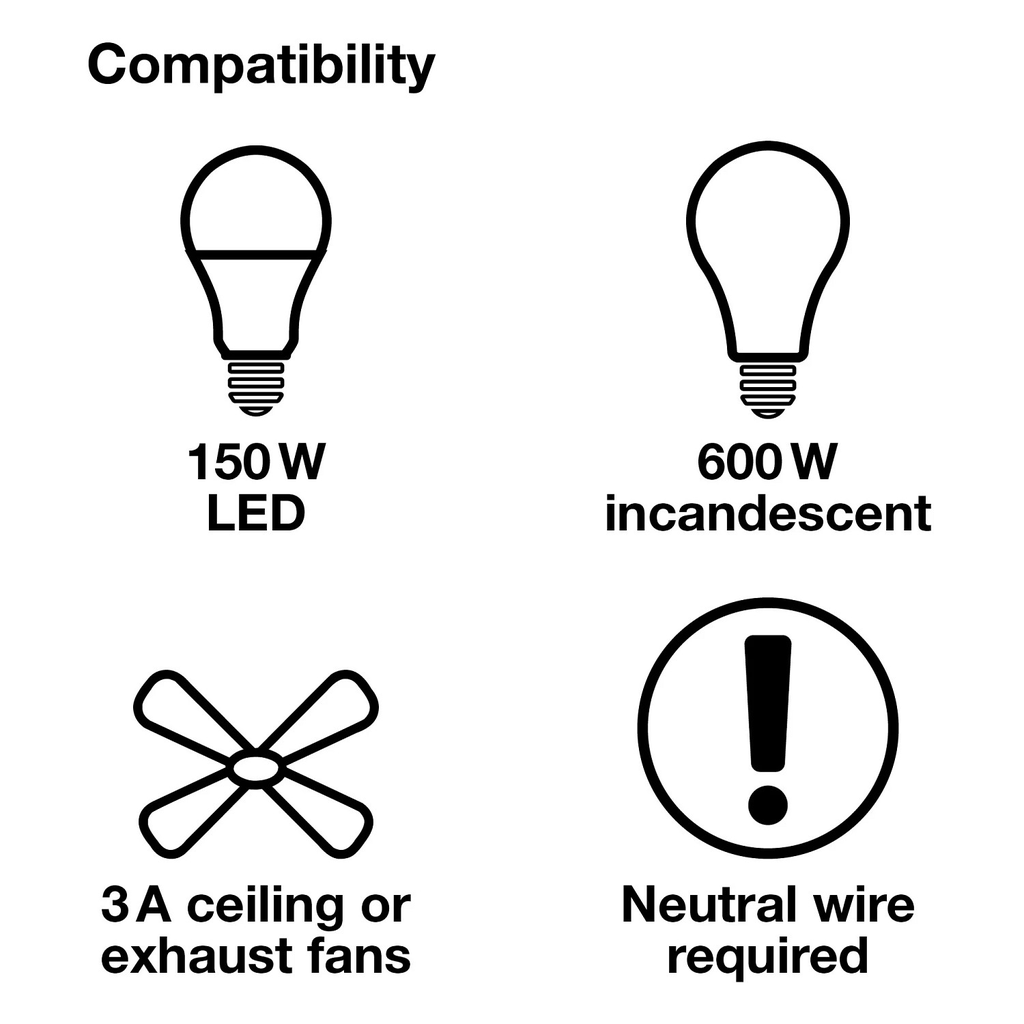

  • Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
  • Neutral required; 120V
  • 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
  • Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
  • Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
  • Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
  • Available in 10+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting
  • Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
  • Touch rocker to adjust countdown time
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.
Standards and Certifications
  • UL
  • IEC
  • cUL
  • ANSI/IEEE
