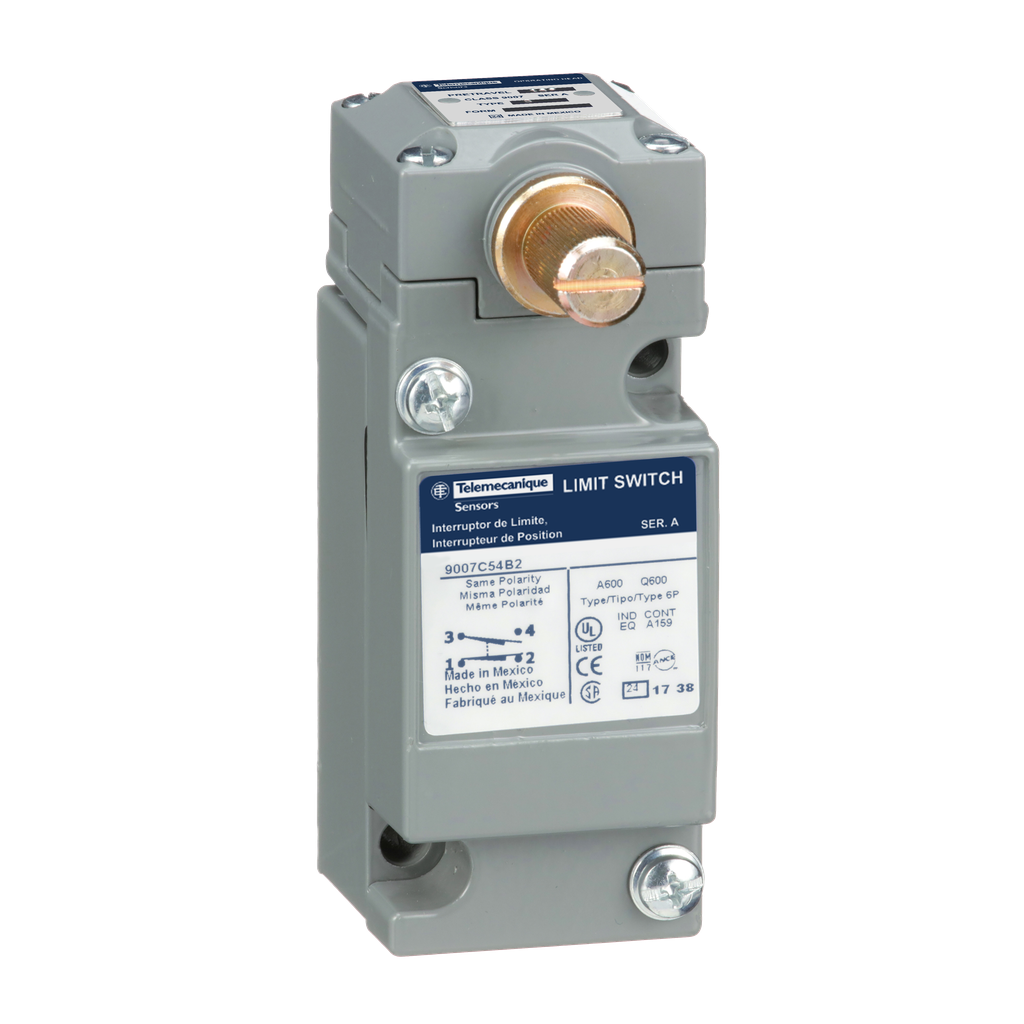

TES 9007C54DP5 Limit switch, 9007, 600 V 10amp c +options

Manufacturer: TES Electric | Catalog # 9007C54DP5 | Cooper Electric Part # 571562
$595.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Limit switch, 9007, 600 V 10amp c +options

Technical Information

Action
Snap action;By 30? cam
Actuator
STEEL SPRING RETURN ROLLER PLUNGER -)
Amperage
10 Amp
Applications
Standard box
Body Material
Zinc
Body Type
Plug-in NULL
Cable Entry
1 entry for 1/2" - 14 NPT BS 4568
Contact Configuration
NC-NO
Contact Material
Silver
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Plunger head NULL
Material
Metal
Net Weight
1.25 lb
Number of Poles
1 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Size
1.79 in
Storage Temperature
-20-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
Limit switch
Voltage
6 A 120 Volt AC, A150 NEMA-0.55 A 120 Volt DC

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007C

General Product Info

12-Digit UPC
785901170280
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
00785901170280
Product UPC
78590117028
Weight
1.25 lb

Dimensions

Depth
1.79 Inch
Height
4.98-4.98 Inch
Warranty Length
18 mth
Width
1.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
