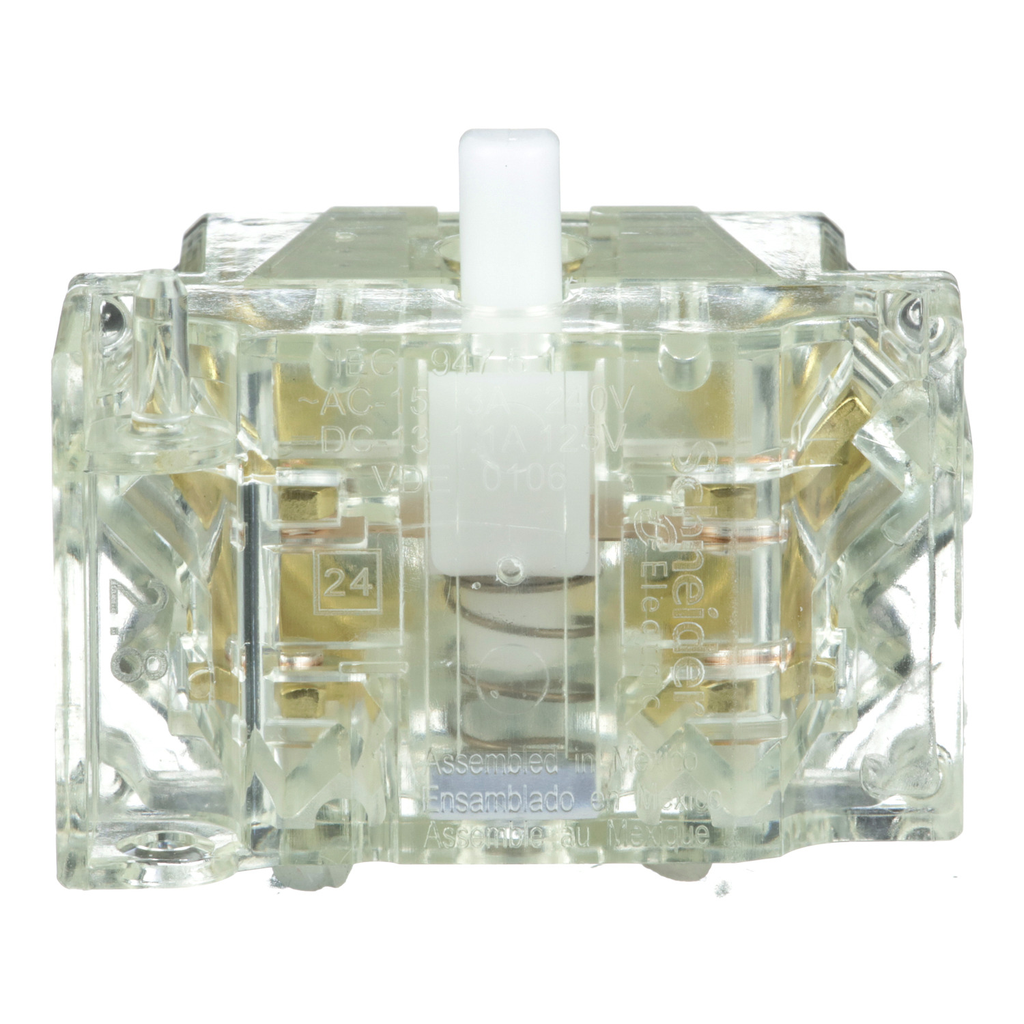

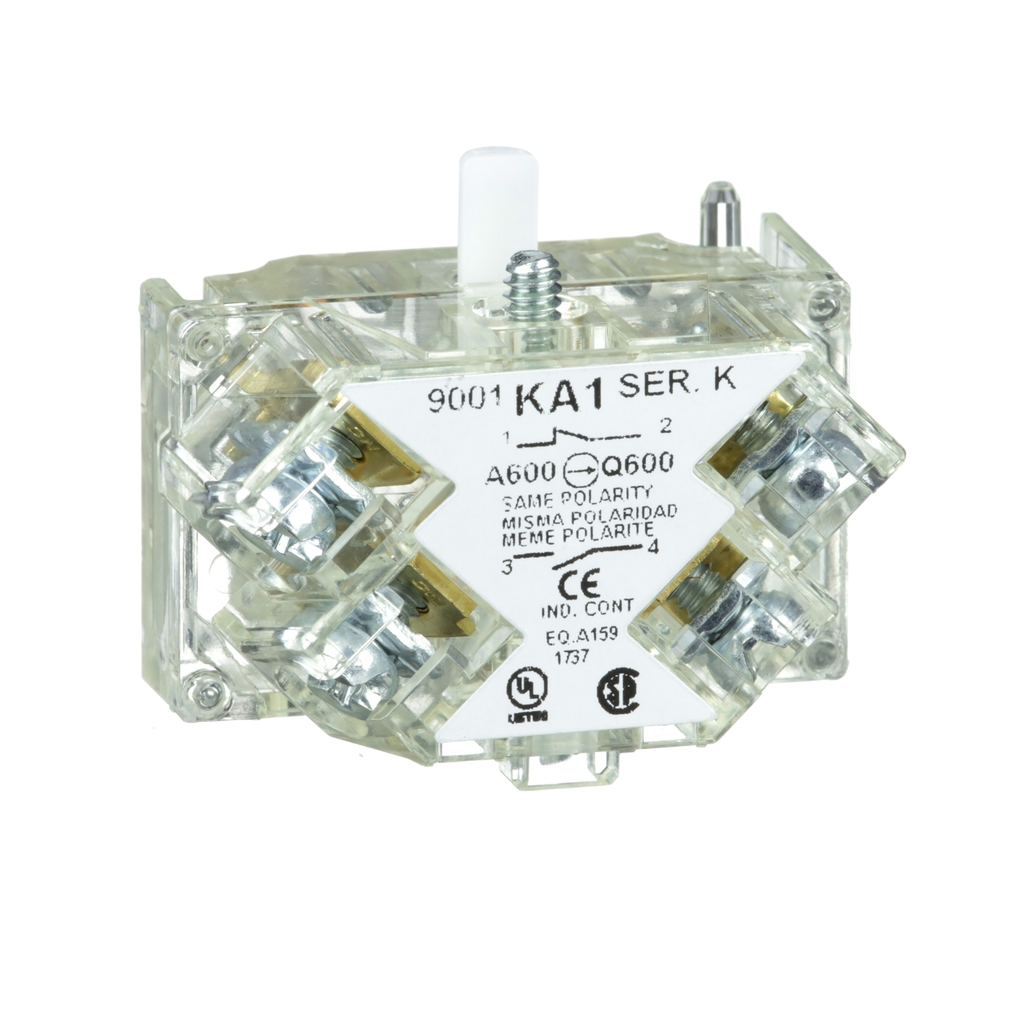

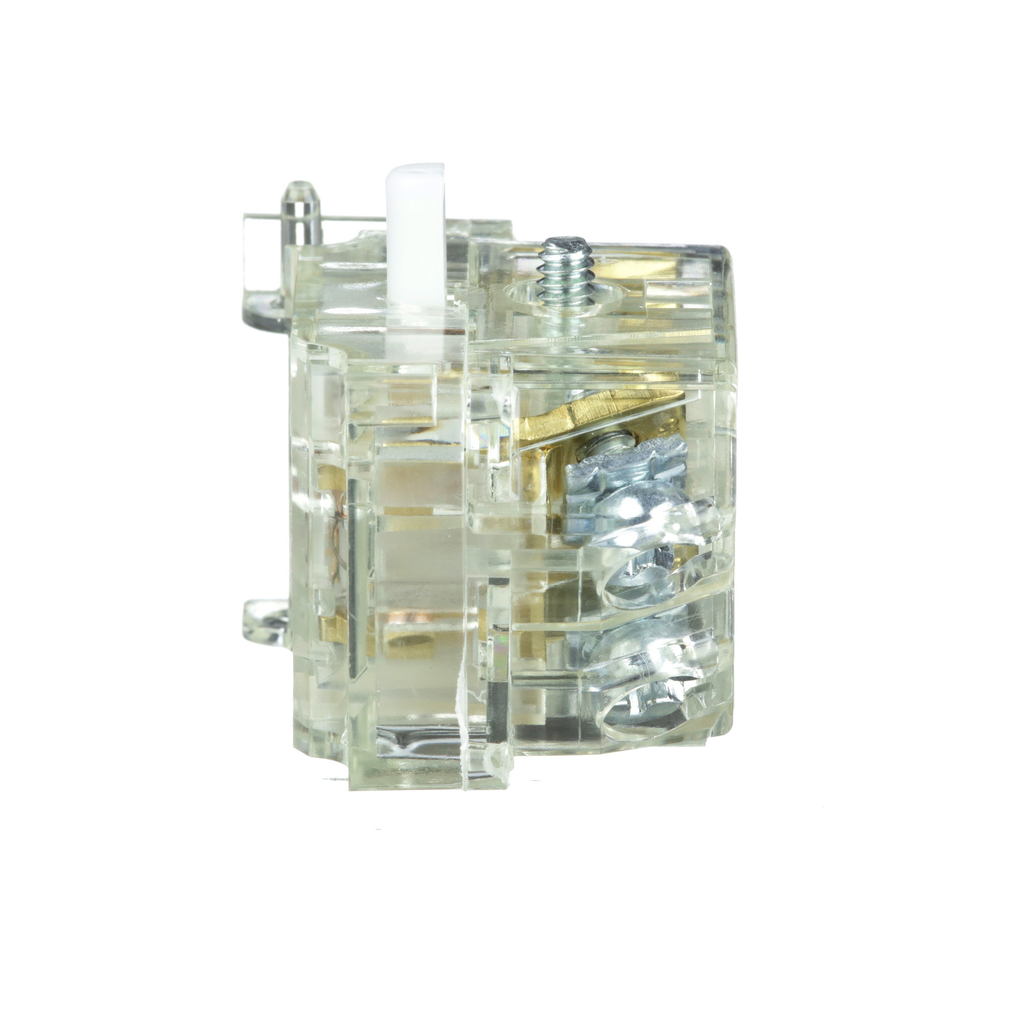

Square D 9001KA1 600 VAC 10 Amp 1NO 1NC Silver Alloy Screw Clamp Terminal Push Button Contact Block

Manufacturer: Square-D / Schneider | Catalog # 9001KA1 | Cooper Electric Part # 56974
$47.19 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Pick Up

at Ocean Closes 5:00pm ET
85 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony 9001K, contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product.

Technical Information

Action
STANDARD
Amperage
10 Amp
Contact Configuration
1 NO - 1 NC
Contact Material
Silver Alloy
Net Weight
0.027 kg
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,UL 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
CONTACT BLOCK
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
785901880004
GTiN
00785901880004
Product UPC
78590188000
Weight
0.027 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
NEMA,UL 508
Country of Origin
Mexico
Connections Terminals
  • screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
IE Rated Operational Current
  • 3 A 240 V, AC-15, A600-Q600 NEMA
  • 0.55 A 125 V, DC-13, A600-Q600 NEMA
  • 0.55 A 125 V, DC-
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KA1_CAD&p_File_name=9001KA1_3D.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KA1_CAD&p_File_name=9001KA1_2D Front View.dwg
  • https://download.schneider-electric.com/files?p_D
Range Of Product
  • Harmony 9001K
  • Harmony 9001SK
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.00020993
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.080398
Related Products
  • 9001KR9R
  • 9001KR1U
  • 9001KS11K1
  • 9001K35
  • 9001SKR1U
  • 9001KS43B
ICM Rated Short Circuit Making Capacity
  • 12 kA 600 V AC-15, 7200 VA
  • 15 kA 480 V AC-15, 7200 VA
  • 30 kA 240 V AC-15, 7200 VA
  • 30 kA 240 V
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.2 kg CO2 eq.
  • 0.21522
Electrical Shock Protection Class
  • class II conforming to IEC 61140
UI Rated Insulation Voltage
  • 250 V 3)IEC 60947-1
Vibration Resistance
  • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 2 kg CO2 eq.
  • 2.2654
Accessory Products
  • 9001K95
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.0037238
  • 0 kg CO2 eq.
Tightening Torque
  • 0.8-0.8 N.m IEC 60947-1
Short Circuit Protection
  • 10 A cartridge fuse IEC 60947-5-1
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Shock Resistance
  • 50 gn IEC 60068-2-27
Rated Breaking Capacity
  • 3 kA 240 V AC-15, 720 VA
  • 6 kA 120 V AC-15, 720 VA
  • 1.2 kA 600 V AC-15, 720 VA
UIMP Rated Impulse Withstand Voltage
  • 2.5 kV IEC 60947-1
