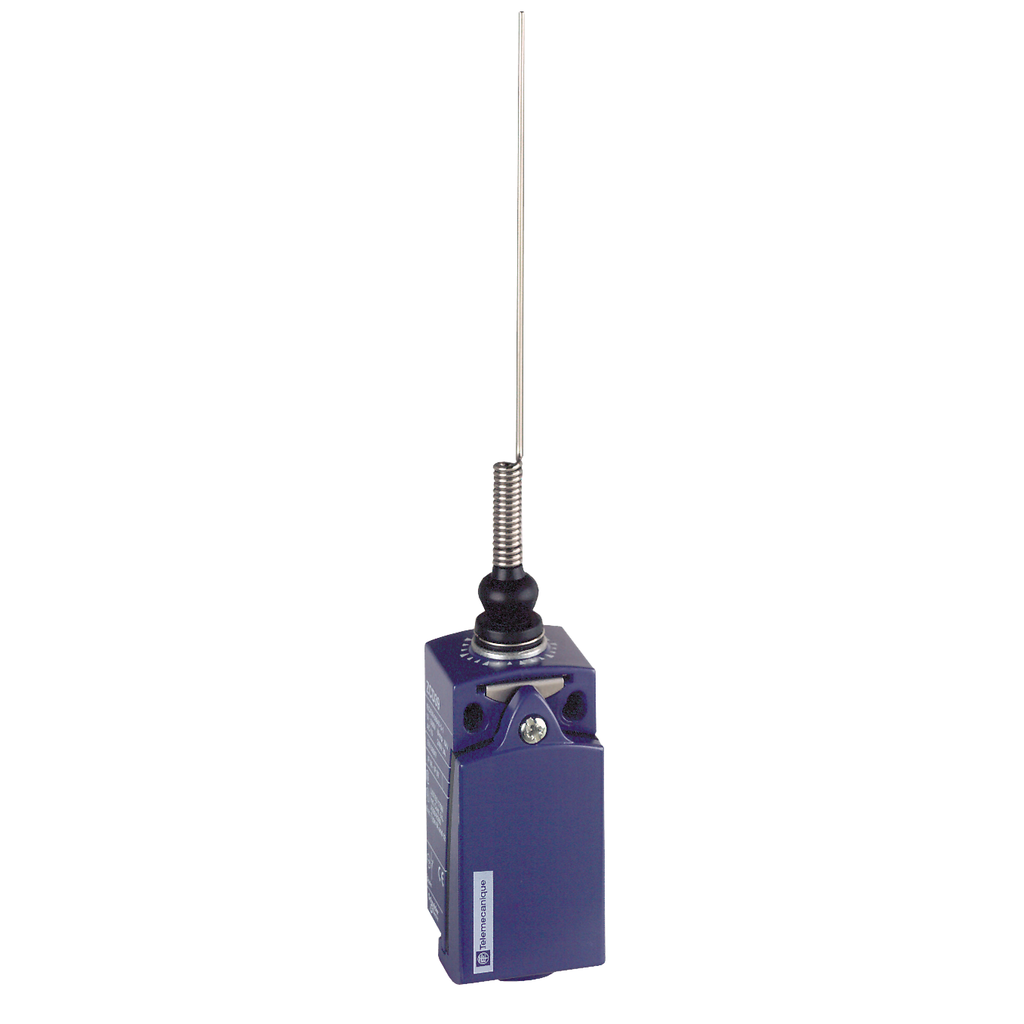

TES XCKD2106N12 Limit switch, Limit switches XC Standard, XCKD, cat's whisker, 1NC+1 NO, snap, 1/2NPT

Manufacturer: TES Electric | Catalog # XCKD2106N12 | Cooper Electric Part # 569023
$115.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Limit switch, Limit switches XC Standard, XCKD, cat's whisker, 1NC+1 NO, snap, 1/2NPT

Technical Information

Action
Snap action;By any moving part
Actuator
SPRING RETURN CAT''S WHISKER
Amperage
10 Amp
Applications
COMPACT VARIABLE
Body Material
Zamak
Body Type
Fixed
Cable Entry
1 entry tapped for 1/2" NPT cable gland
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4/6/12/13 IP66/67
Head Type
Multi-directional head
Material
Metal
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1 ENTRY TAPPED FOR 1/2 NPT CABLE GLAND,COMPACT,FIXED
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Type
Limit switch
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKD

General Product Info

12-Digit UPC
389110305282
GTiN
03389110305289
Product UPC
78590130053

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
France
