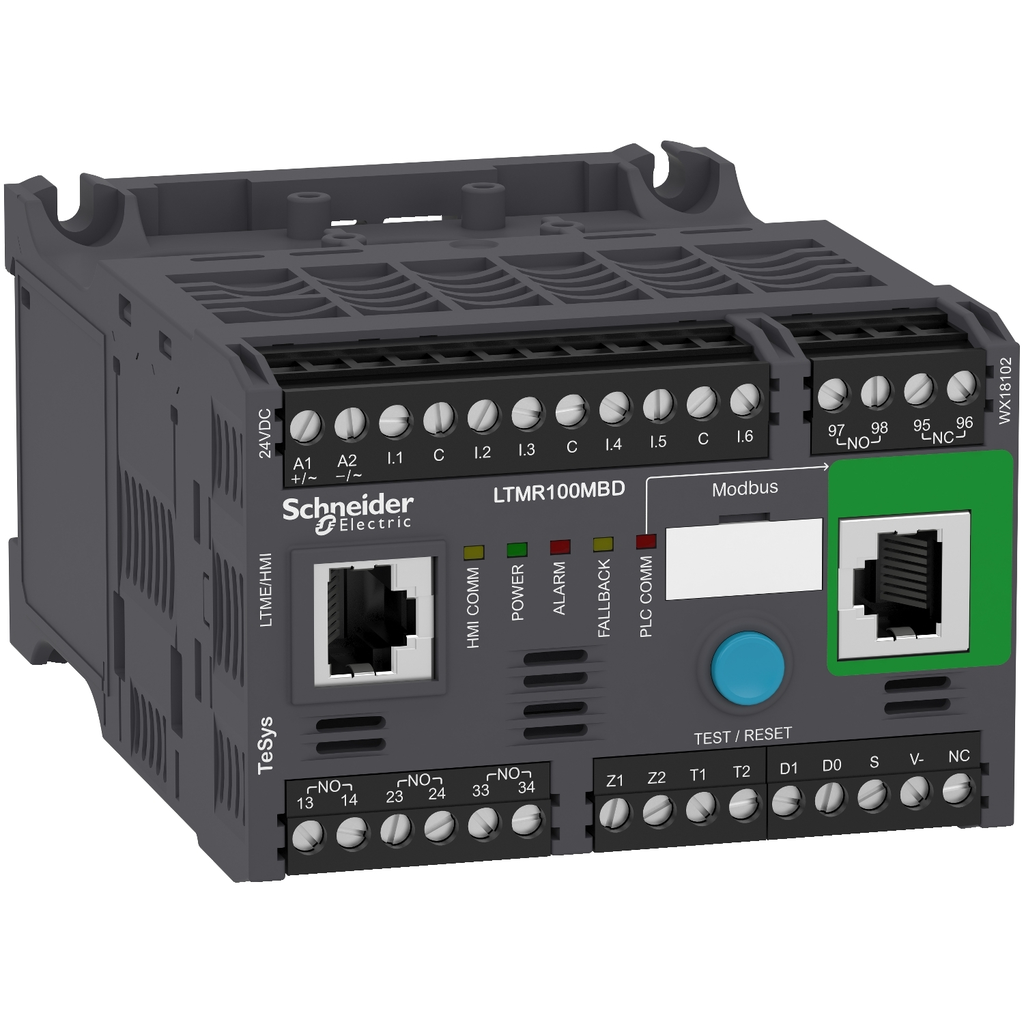

Product image for SQUARED LTMR100MBD Motor Management
Email

SQUARED LTMR100MBD Motor Management

Manufacturer: Square-D / Schneider | Catalog # LTMR100MBD | Cooper Electric Part # 568617
$1,136.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 logic outputs, 5 to 100A, 24VDC

Technical Information

Amperage
5??100? Amp
Applications
Equipment monitoring and control
Current
56-127 mA
Enclosure
IP 54
Input Current
7 mA
Maximum Load Current
5 A 250 V AC logic output;5 A 30 V DC logic output
Net Weight
0.53 kg
Operating Cycles
1800 cyc/h
Operating Temperature
-20-60 Adegrees C
Size
4.82 in
Standard
CSA C22.2 No 14,EN 60947-4-1,IACS E10,IEC 60947-4-1,UL 508
Storage Temperature
-40-80 degrees C
TC Connection
CONTROL CIRCUIT CONNECTOR 1 0.25-2.5 MMA AWG 24...AWG 14)FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.2-2.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.25-2.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.2-2.5 MMA AWG 24...AWG 14)SOLID WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1 MMA AWG 24...AWG 14)FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.5-1.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1 MMA AWG 24...AWG 14)SOLID WITHOUT CABLE END
Type
Motor controller
Voltage
24 VDC
Wattage
480 VA AC-15) IE = 2 Amps 500000 CYCLES OUTPUT)-30 Watt DC-13) IE = 1.25 Amps 500000 CYCLES OUTPUT)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LTMR;TeSys T

General Product Info

12-Digit UPC
785901498377
GTiN
03389119404662
Product UPC
78590149837
Weight
0.53 kg

Dimensions

Depth
122.5 mm
Height
61 mm
Warranty Length
18 mth
Width
91 mm

Certifications and Compliance

Certifications
ABS,ATEX,BV,C-tick,CCC,CSA,DNV,EAC,GL,KERI,LROS (Lloyds Register Of Shipping),NOM,RINA,RMRoS,UL
Country of Origin
Singapore
