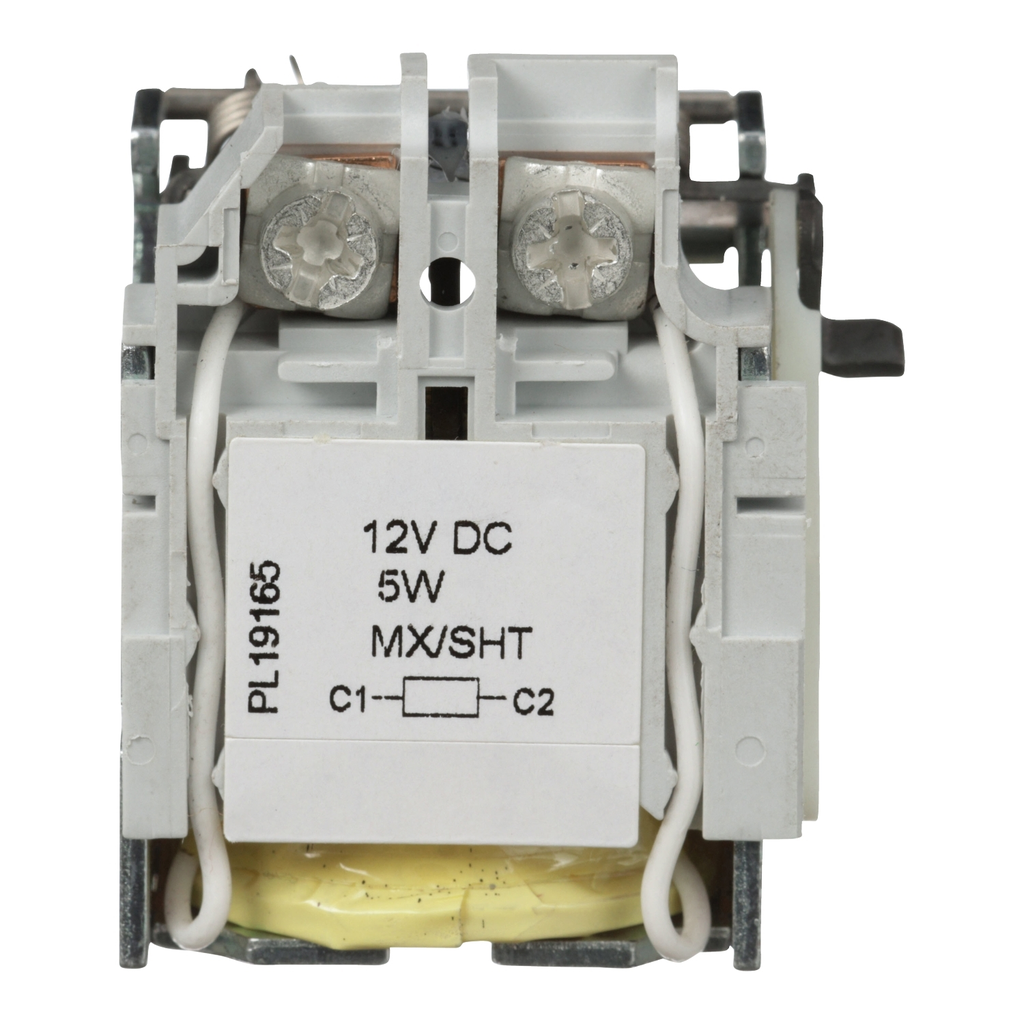

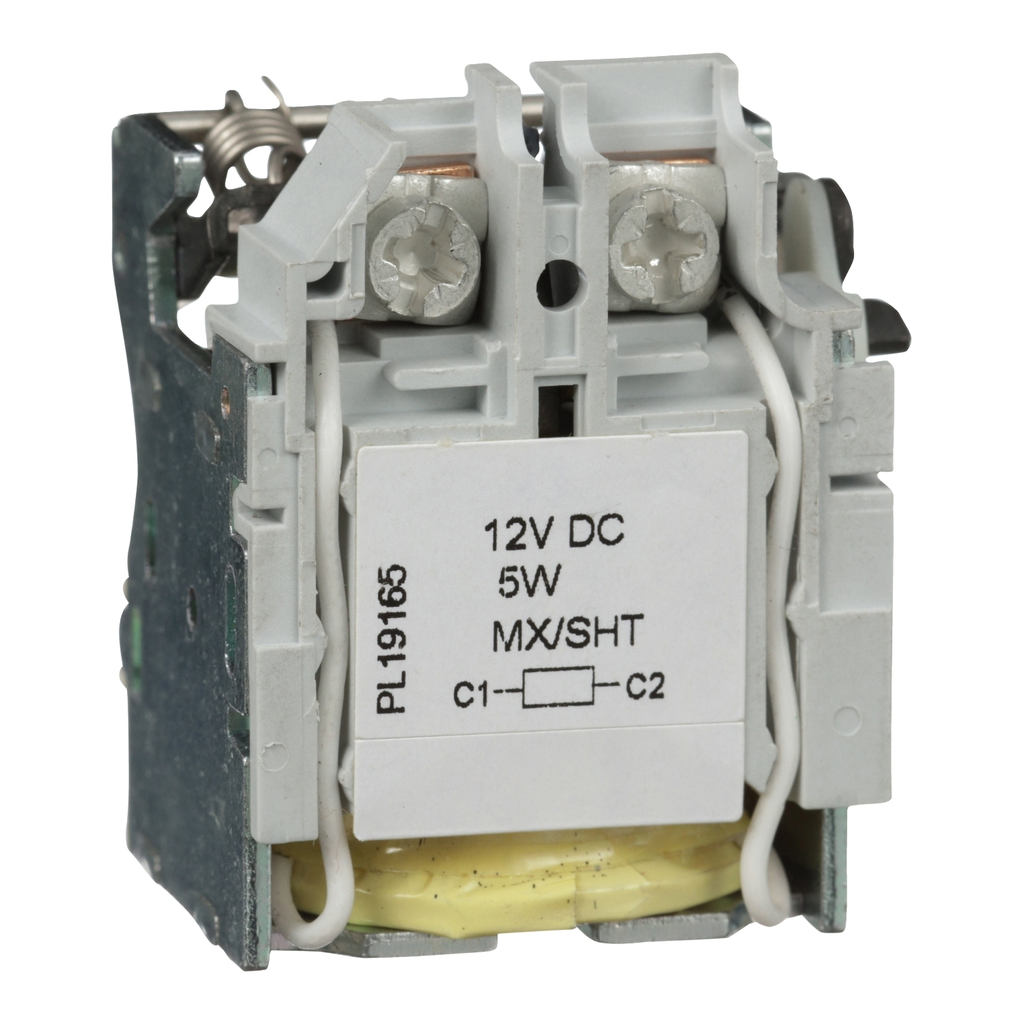

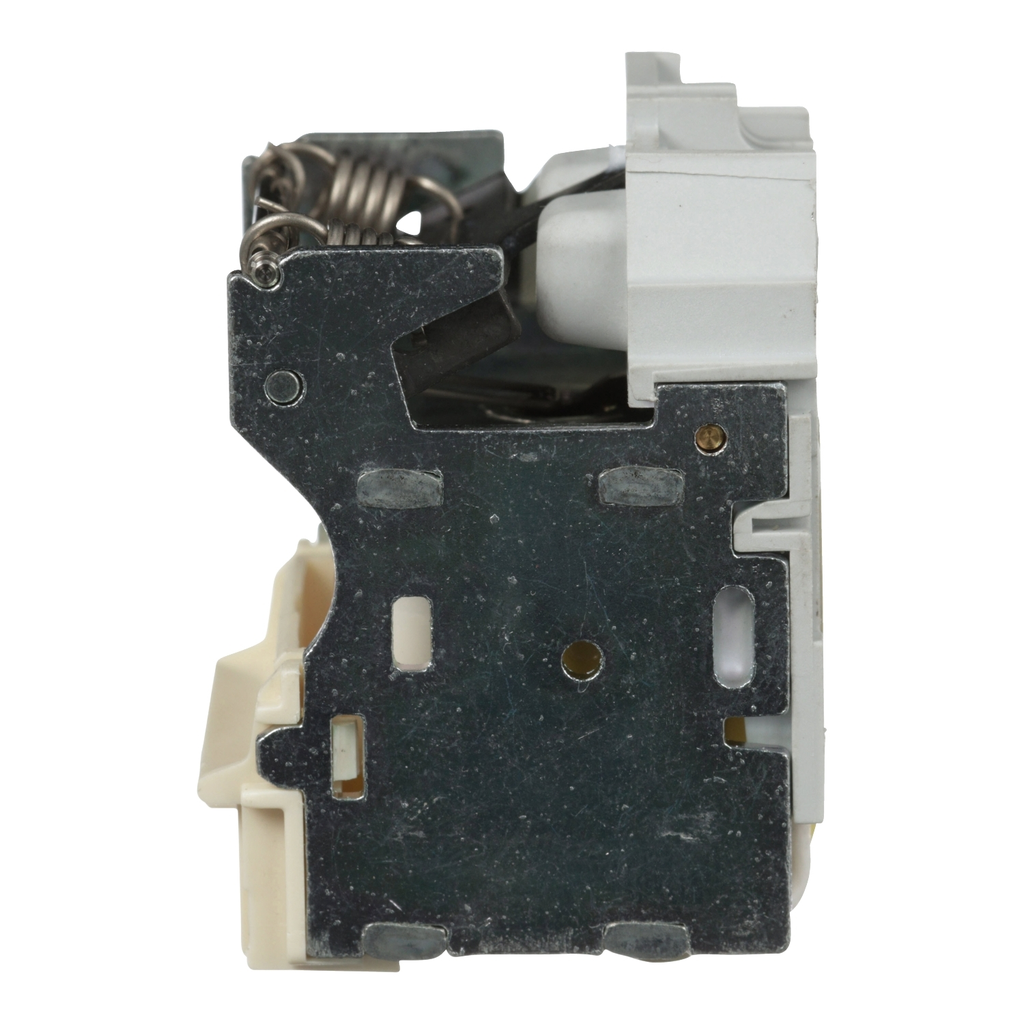

Square D S29382 12 VDC Shunt Trip Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # S29382 | Cooper Electric Part # 567945
$717.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The PowerPacT™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ? 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.

Technical Information

Applications
J-frame;H-frame;L-Frame
Circuit Breaker Type
H-Frame,J-Frame
Trip Type
NA
Type
shunt trip
Voltage
12-12 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901622956
GTiN
00785901622956
Product UPC
78590162295

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CSA
Country of Origin
USA
Prop 65
  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features
  • Shunt trip accesory mechanically shuts the power after reaching 8.4VDC
  • Allows for a remote or automitic power shutoff
  • Compatible with PowerPacT H, J, and L circuit breakers
  • Commercially package and ready to be sold
