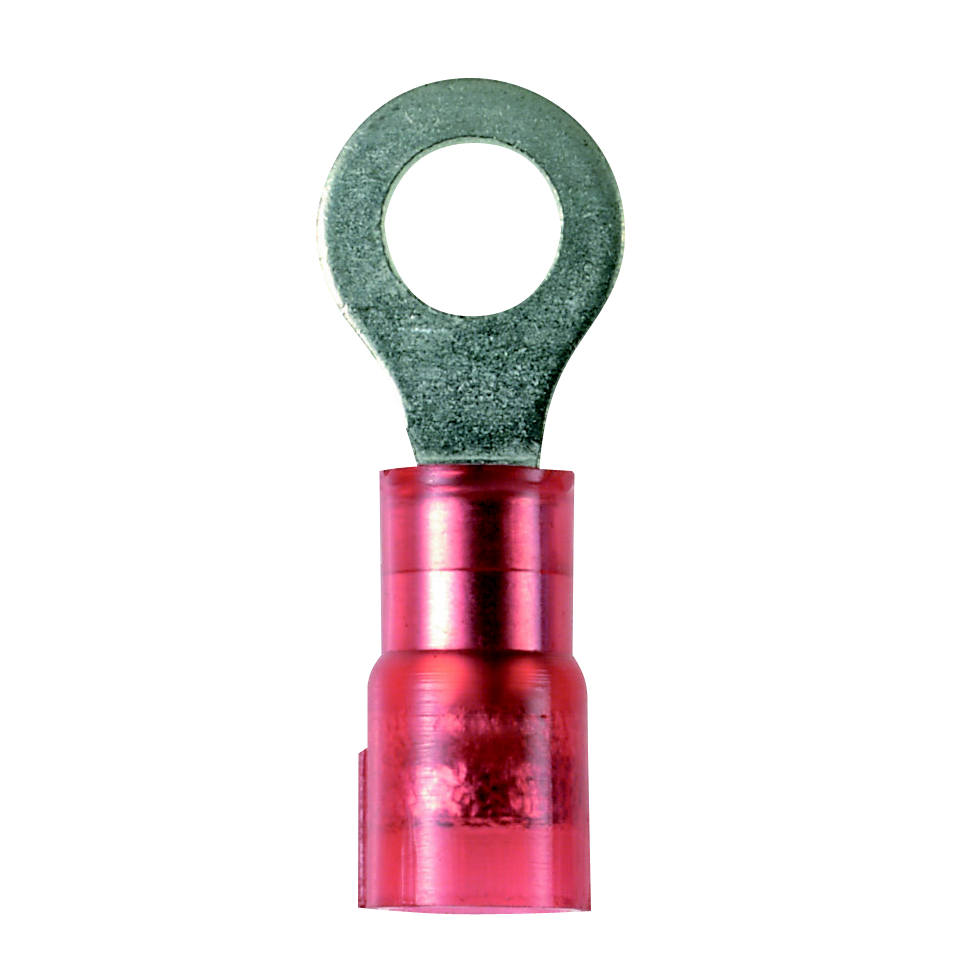

Product image for Panduit PNF18-56R-M Ring Terminal, Nylon Insulated, 22 - 18 AWG, 5/16" Stud Size, Funnel Entry
Email

Panduit PNF18-56R-M Ring Terminal, Nylon Insulated, 22 - 18 AWG, 5/16" Stud Size, Funnel Entry

Manufacturer: Panduit Corp | Catalog # PNF18-56R-M | Cooper Electric Part # 567412
$909.92/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing
Ring Terminal, 22 – 18 AWG, 5/16" stud size, funnel entry, nylon insulated, bulk package.

Technical Information

Barrel Length
0.53 in
Barrel Type
Insulation Grip Sleeve
Color Coding
Red
Conductor Size
18 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
5/16"
Stud Hole Size
M8
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.32 in
Tongue Width
0.46 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983810734
Color
Red
Finish
Tinned
GTiN
00074983810734
Product Type
Terminals
Product UPC
07498381073
UNSPSC
39121409

Dimensions

Length
1.08 Inch
Outer Diameter
0.38 in
Overall Length
1.06 in
Width
.46 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
