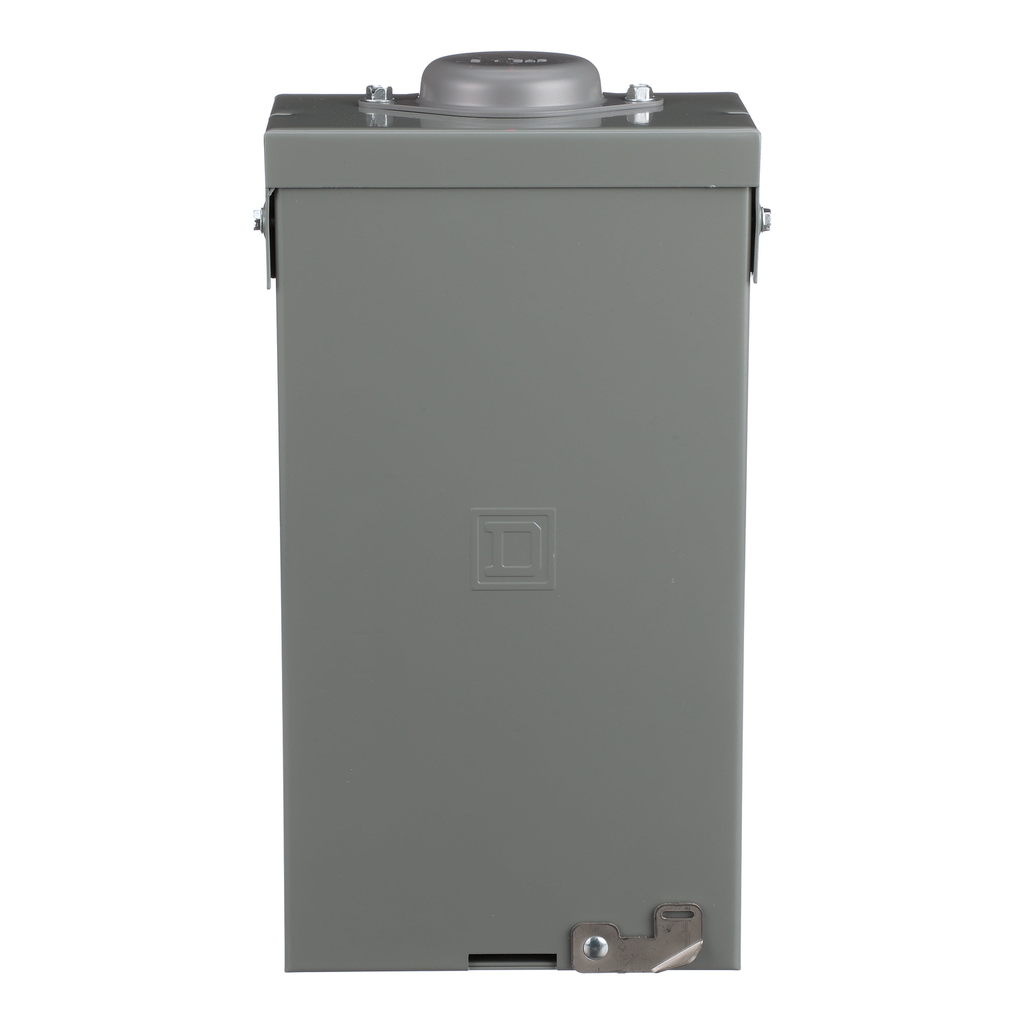

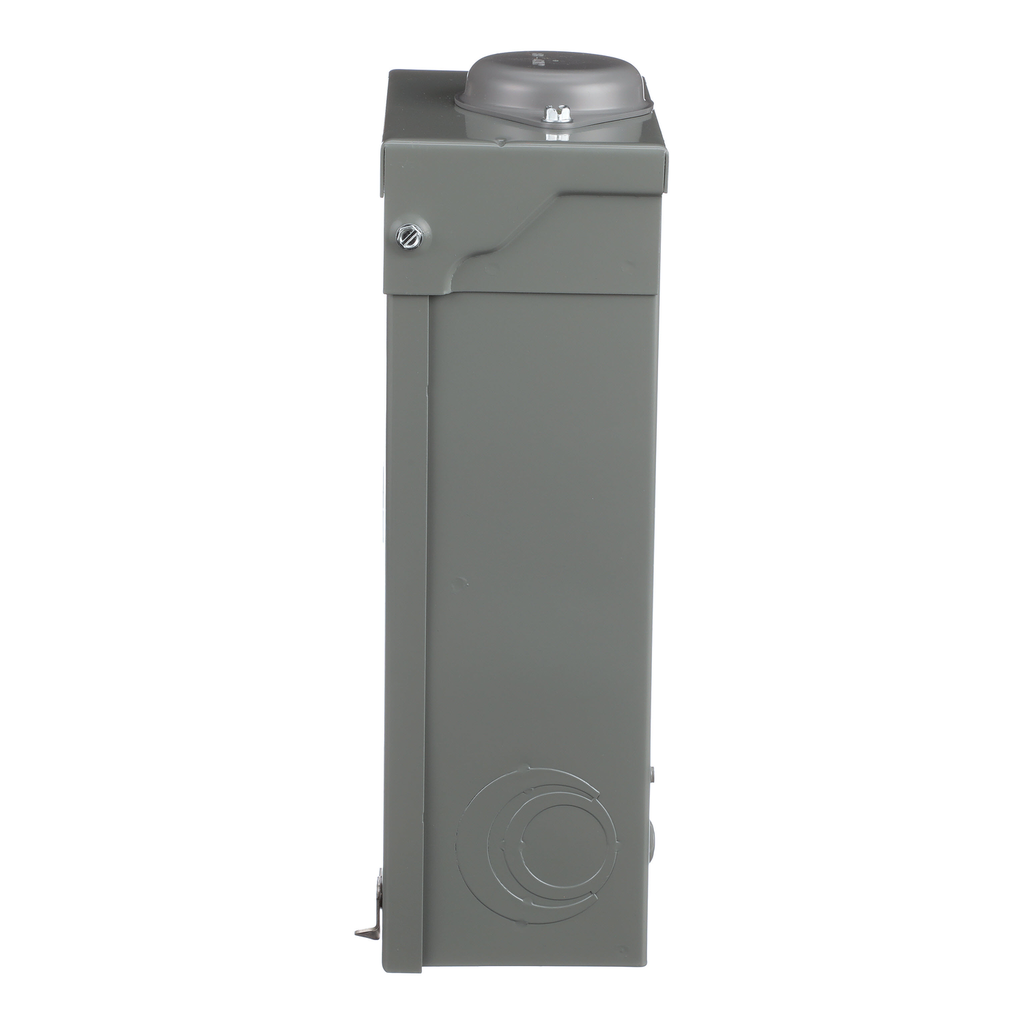

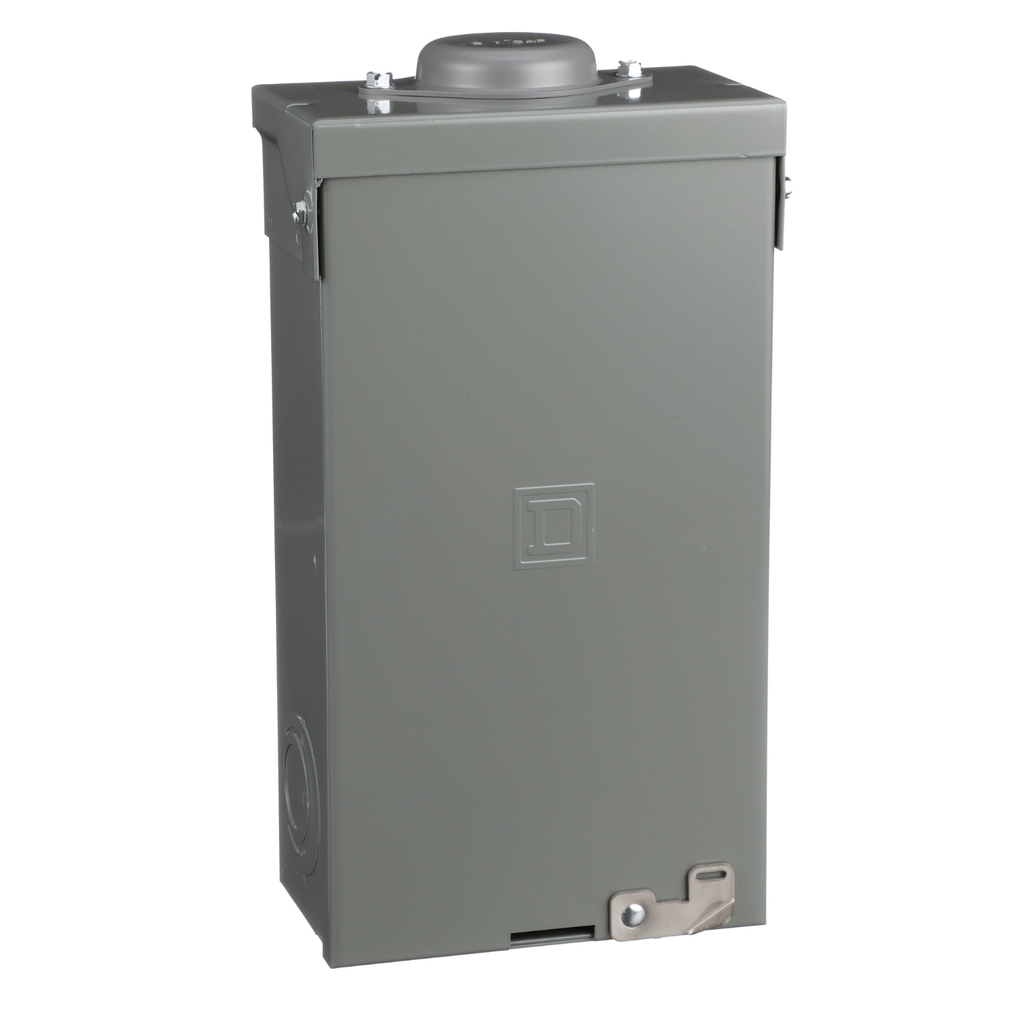

Square D QO2100NRBCP Enclosed Circuit Breaker 100A 120/240V 2P 1Ph

Manufacturer: Square-D / Schneider | Catalog # QO2100NRBCP | Cooper Electric Part # 567309
$154.52/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
9 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO® Circuit Breaker Load Centers, QO2100NRBCP, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
100 Amp
Applications
QO
Conductor Size
14-1 AWG (AL)/12-1 AWG (CU)
Current
100 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Type
Enclosure
Interrupt Rating
22 kAIC
Line Rated Current
100 A
Material
Copper
NEMA Size
3R
Number of Circuits
2
Number of Phases
1 Phase
Number of Spaces
2
Short Circuit Current
22 kA
Surface Finish
Baked enamel Gray
TC Connection
AWG 14...AWG 1 COPPER-AWG 12...AWG 1 ALUMINIUM,LUGS
Type
Weatherproof enclosure;Enclosure
Voltage
120/240 VAC
Wire Size
AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
047569517624
Finish
Baked Enamel
GTiN
00047569517624
Product UPC
04756951762

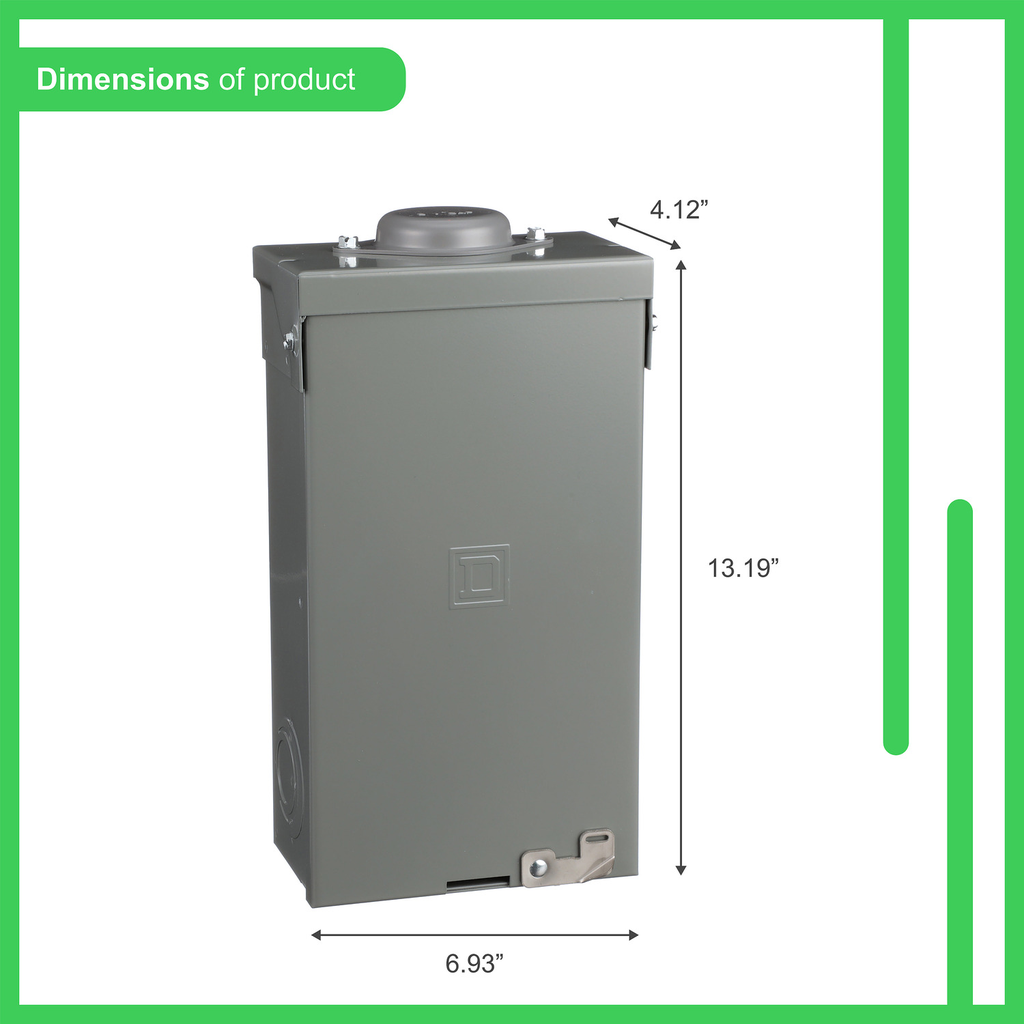

Dimensions

Depth
4.12 Inch
Height
335 mm
Length
4.12 Inch
Warranty Length
18 mth
Width
176 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • QO2100CP
