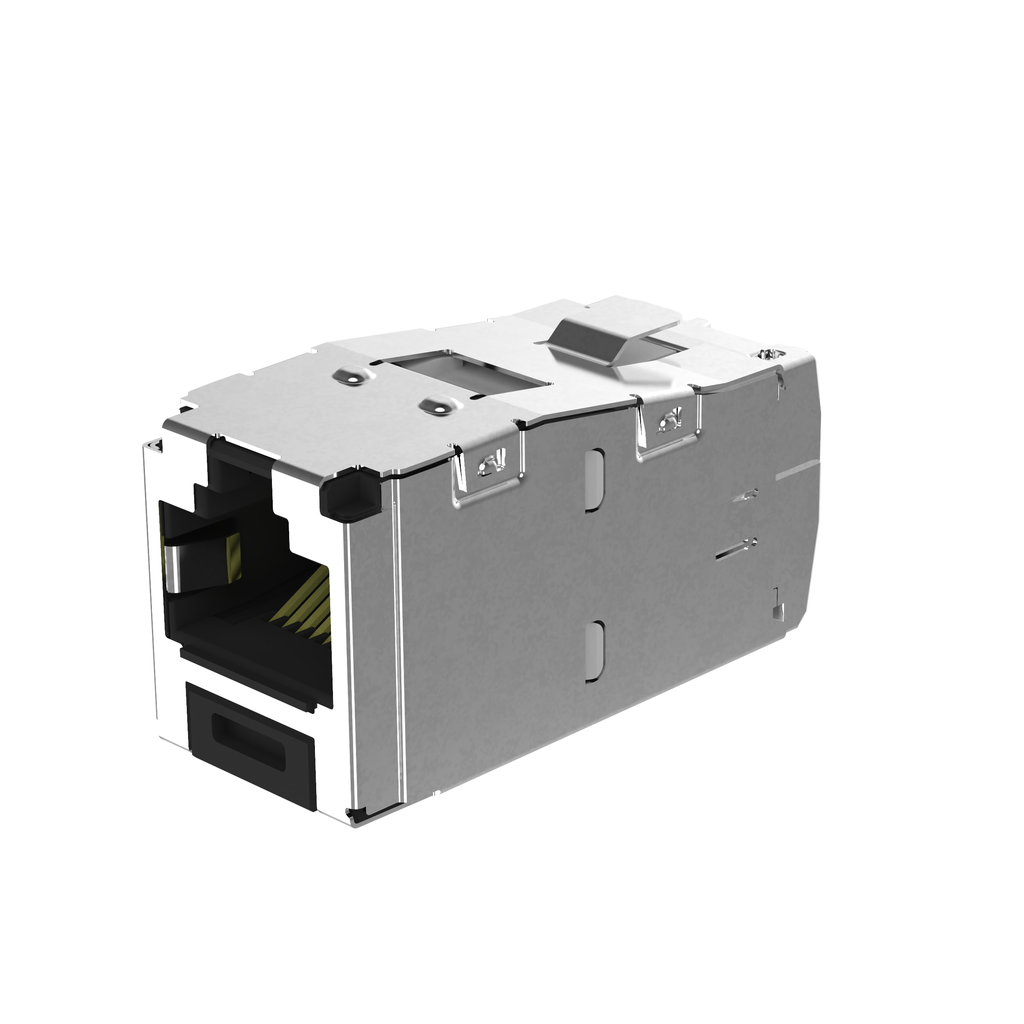

Product image for Panduit CJS6X88TGY Shielded RJ45 Cat 6A TG Jack Module, Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CJS6X88TGY Shielded RJ45 Cat 6A TG Jack Module, Black

Manufacturer: Panduit Corp | Catalog # CJS6X88TGY | Cooper Electric Part # 565486
$34.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing Product Brochure
The Mini-Com® Cat 6A Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shileded Modular Patch Panels and Faceplates. The jack module is black.

Technical Information

Applications
Unshielded
Cable Size
22-26 AWG
Cable Type
Category 6A
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6A
Type
Universal, Bus Jack, Shielded, RJ45, 8-Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983035656
Color
Black
GTiN
00074983035656
Product UPC
07498303565
Used With
Round and Solid Core Cable

Dimensions

Depth
1-1/2 Inch
Height
0.73 Inch
Overall Length
38.1 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica,USA

Certifications & Compliance

Green Distribution CO2
0.006 kg
Green End-of-Life CO2
0.015 kg
Green Manufacturing CO2
2.6 kg
Green Total CO2
2.635 kg
Green Transport-to-DC CO2
0.014 kg
Green Use-Phase CO2
0 kg
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz. Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A Component Requirements at SweptFrequencies up to 500 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863 and RoHS Compliant
