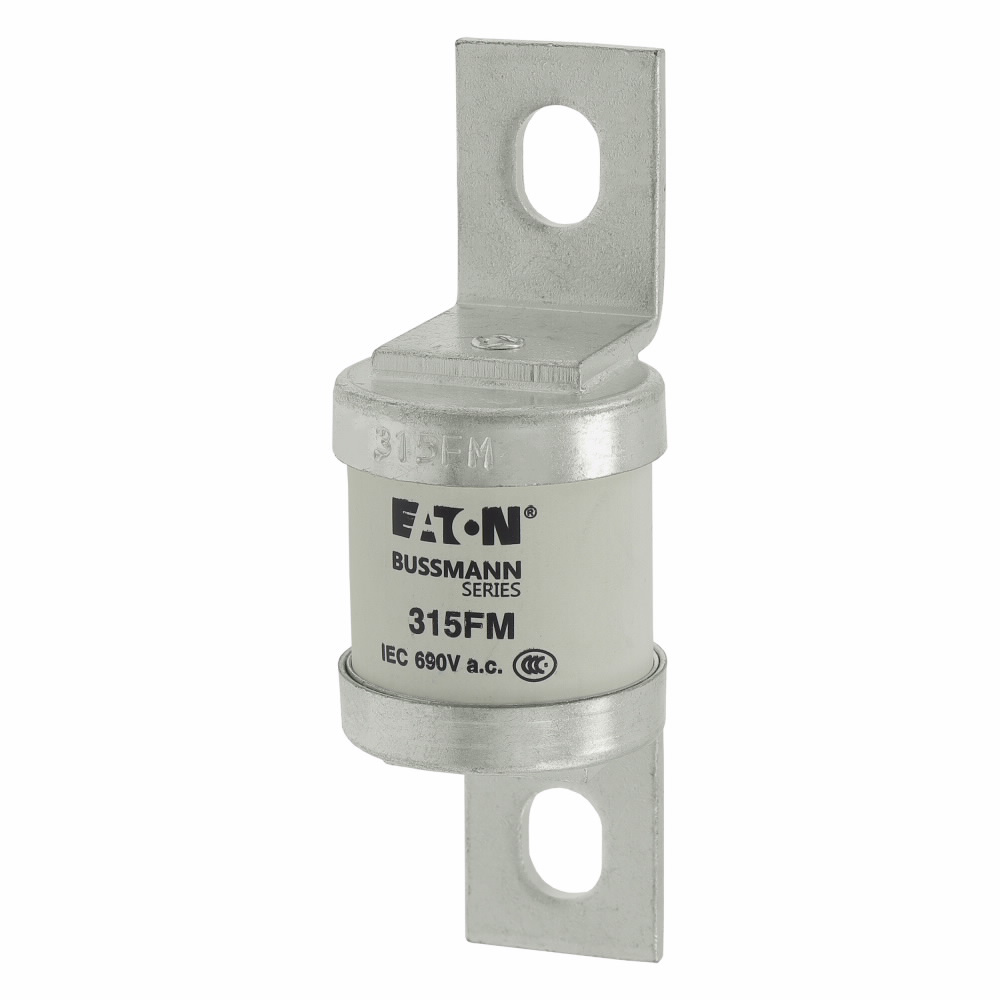

Product image for Bussmann Series 315FM 315 Amp 690 Volt High Speed Fuse
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Bussmann Series 315FM 315 Amp 690 Volt High Speed Fuse

Manufacturer: Bussmann Mfg. | Catalog # 315FM | Cooper Electric Part # 562914
$423.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Eaton Bussmann series high speed British standard fuse, Single barrel, 315A, 690 VAC/450 VDC (IEC), 700 VAC/500 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 40 kA DC at 450 VDC (IEC), 50 kA at 500 VDC (UL)

Technical Information

Amperage
315 Amp
Applications
DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Connection Type
Blade
Enclosure Material
Stainless Steel
End Type
Blade
Interrupt Rating
200 kAIC
Mounting Type
Stud
Size
113.00 mm Length X 38.10 mm Width X 41.00 mm Height
Standard
CE,IEC 269,UL
TC Connection
Blade end x blade end
Type
Fuse
Voltage
500 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712833806
Class
Class aR
GTiN
00051712833806
Product UPC
05171283380
Weight
224 g

Dimensions

Height
41 mm
Length
112 mm
Width
39 mm
