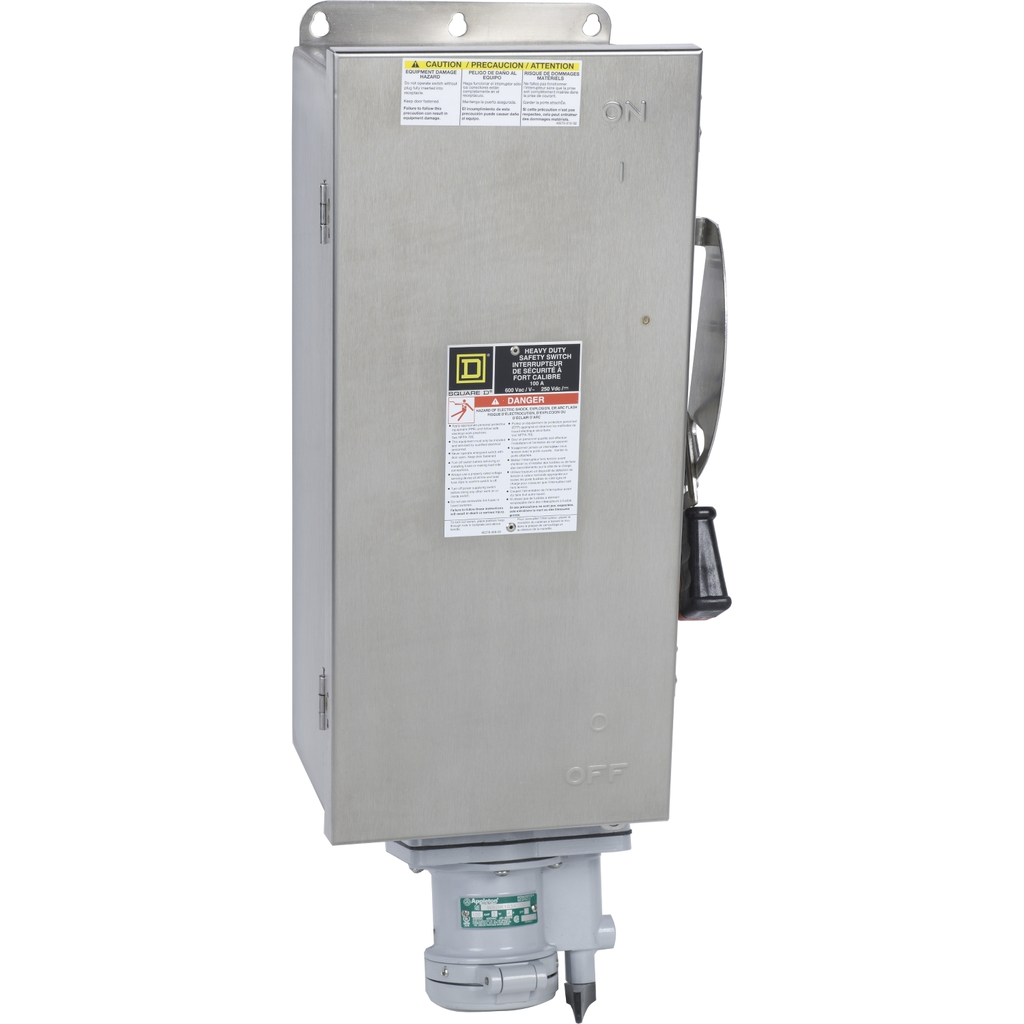

Product image for SQD HU363DSWA Safety switch, heavy
Image thumbnail 0
Image thumbnail 1
Email

SQD HU363DSWA Safety switch, heavy

Manufacturer: Square-D / Schneider | Catalog # HU363DSWA | Cooper Electric Part # 562681
$7,206.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Safety switch, heavy duty, non fusible, 100A, 600VAC, 600VDC, 3 poles, 100hp, NEMA 4, 4X, 5, 304 steel, Appleton

Technical Information

Amperage
100 Amp
Applications
75 HP 480 V AC-100 HP 600 V AC,PLUG ACP1034CD APPLETON POWERTITE
Conductor Size
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Current
100 Amp
Enclosure
3,3R,4
Enclosure Material
Stainless Steel
Enclosure Rating
3, 3R, 4, 4X, 5, 12
Line Rated Current
100 A
Mounting Type
Surface
NEMA Size
3,3R,4
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
6.97 in
TC Connection
Receptacle
Type
Non-fusible disconnect switch;Receptacle Switch
Voltage
250 Volt
Wire Size
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
Wire Type
AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901666318
GTiN
00785901666318
Product UPC
78590166631
Used With
Plug ACP1034CD Appleton Powertite

Dimensions

Depth
6.97 Inch
Height
28 Inch
Warranty Length
18 mth
Width
11.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Motor Power HP
  • 75 hp at 480 V AC 50-60 Hz for 3 phase motors
  • 100 hp at 600 V AC 50-60
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.47450100919935984
  • 0.5 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 10 kg CO2 eq.
  • 10.433767455507095
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 25 kg CO2 eq.
  • 24.744063090917642
Nema Degree Of Protection
  • NEMA 4/4X/5 stainless steel 304
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 30 kg CO2 eq.
  • 30.347997770169158
Persona Type Ids
  • LC
  • OM
  • OM8
  • PB
  • SI
Carbon Footprint Of The Distribution Phase A4
  • 1.3495744020234641
  • 1 kg CO2 eq.
Tightening Torque
  • 50-50 lbf.in (AWG 3...AWG 1)
  • 45-45 lbf.in (AWG 6...AWG 4)
  • 40-40 lbf.in (AWG 8)
  • 35-35 lbf.in (AWG 14...AWG 10)
AWG Gauge
  • AWG 12...AWG 1/0 aluminium
  • AWG 14...AWG 1/0 copper
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Product Destination
  • plug ACP1034CD Appleton Powertite
UE Rated Operational Voltage
  • 600 V AC
  • 250 V DC
