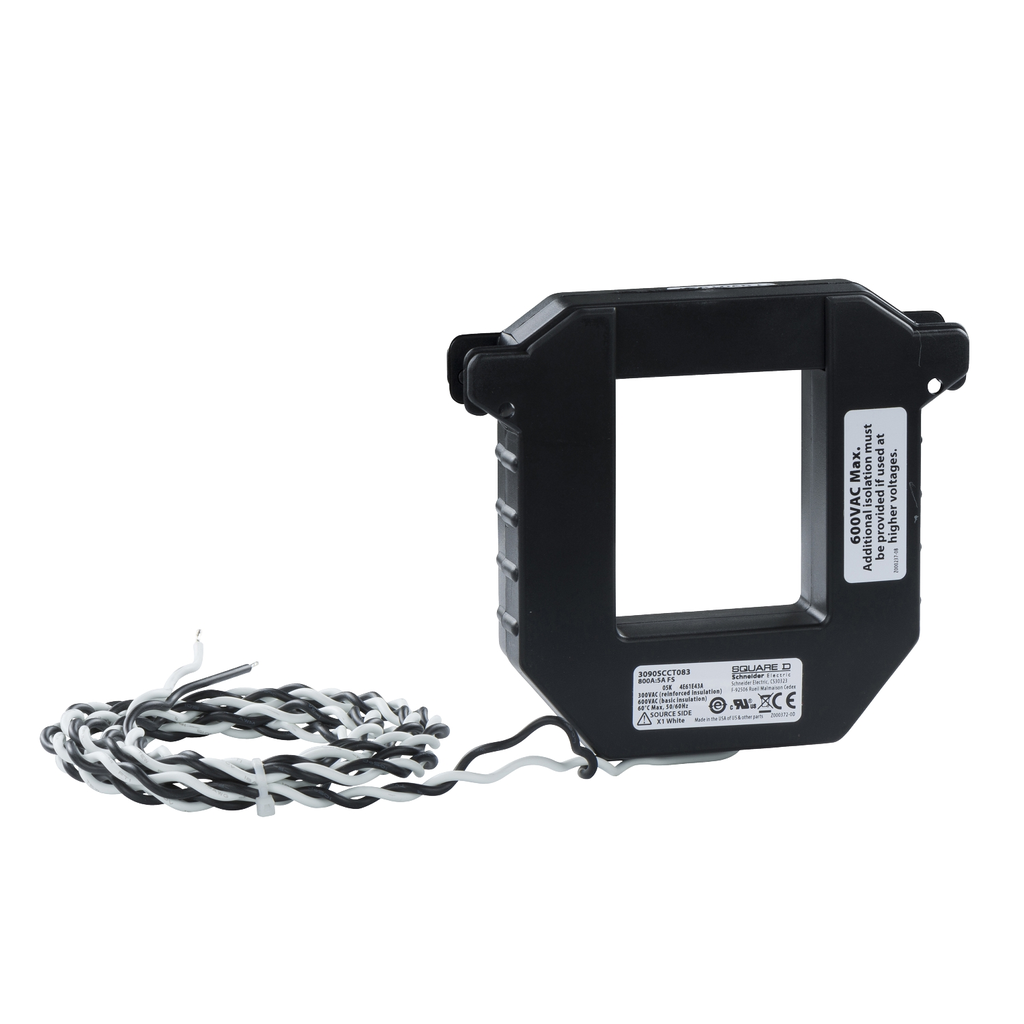

Product image for Square D 3090SCCT083 2.45 x 2.89 Inch 12.5 VA 600 VAC 50/60 Hz 800:5 18 AWG Split Core Current Transformer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D 3090SCCT083 2.45 x 2.89 Inch 12.5 VA 600 VAC 50/60 Hz 800:5 18 AWG Split Core Current Transformer

Manufacturer: Square-D / Schneider | Catalog # 3090SCCT083 | Cooper Electric Part # 562048
$285.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This current transformer, has a line rated current of 0800 A and a secondary current rating of 5 A. Size type 3 with core opening of 2.45 inches by 2.89 inches. Compatible with PowerLogic family of meters, and Acti 9 energy meters. Burden and accuracy class as follows class 1 maximum power 12.5 VA.

Technical Information

Accuracy
1 FULL SCALE
Applications
Measurement accessory
Size
INTERNAL 62 MM-EXTERNAL 150 MM,INTERNAL 73 MM-EXTERNAL 141 MM
Standard
IEC 61010-1,UL 1015,UL 61010-1
Storage Temperature
-40-70 degrees C
Type
Split core;Current transformer

Manufacturer Information

Brand
Schneider Electric
Sub Brand
POWERLOGIC,POWERLOGIC POWERLOGIC PM5000 POWER METER-POWERLOGIC POWERLOGIC PM3000 POWER METER-POWERLOGIC POWERLOGIC PM8000 POWER METER-POWERLOGIC POWERLOGIC ION7400 POWER METER-POWERLOGIC CM4000T CIRCUIT MONITOR-ACTI 9 ACTI 9 IEM3000 ENERGY METER

General Product Info

12-Digit UPC
785901000488
GTiN
00785901000488
Product UPC
78590100048

Dimensions

Depth
29 mm
Height
141 mm
Warranty Length
18 mth
Width
150 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • METSEPM3200
  • METSEPM3250
