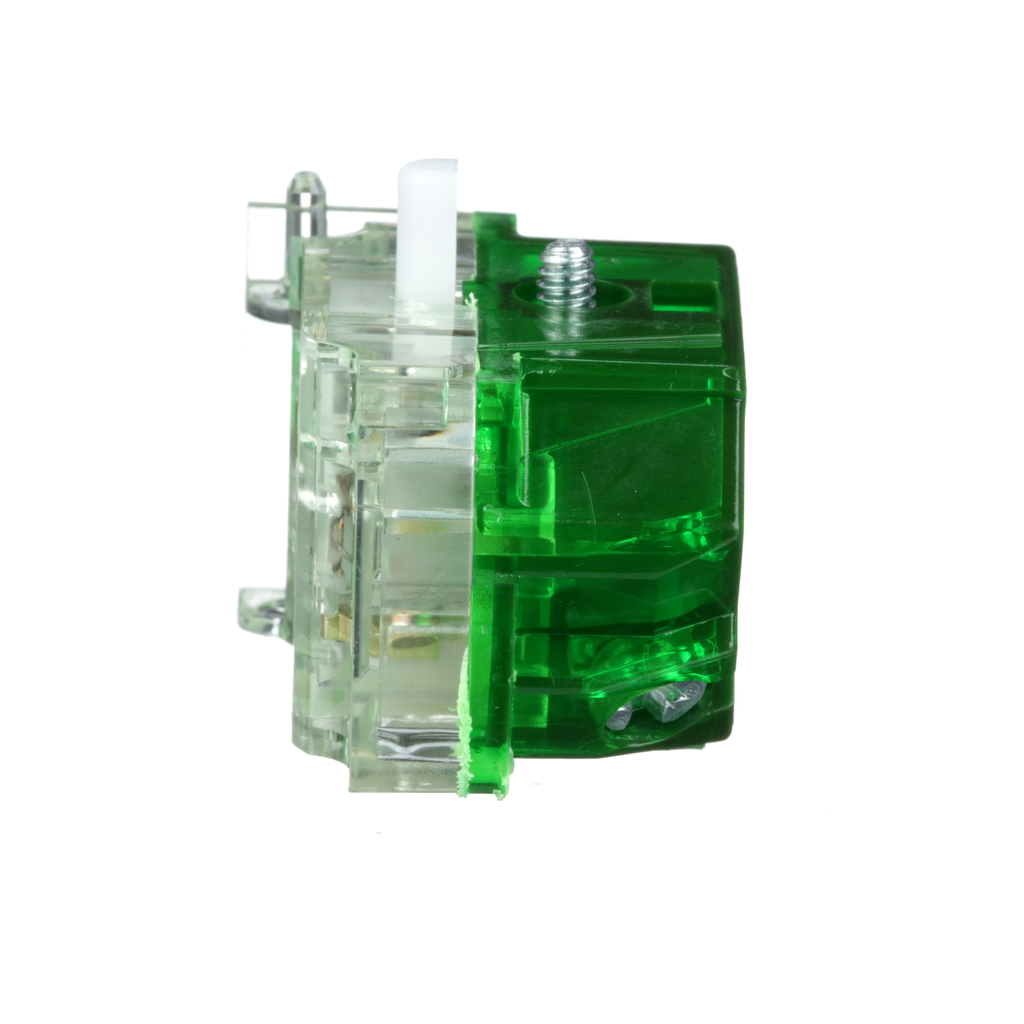

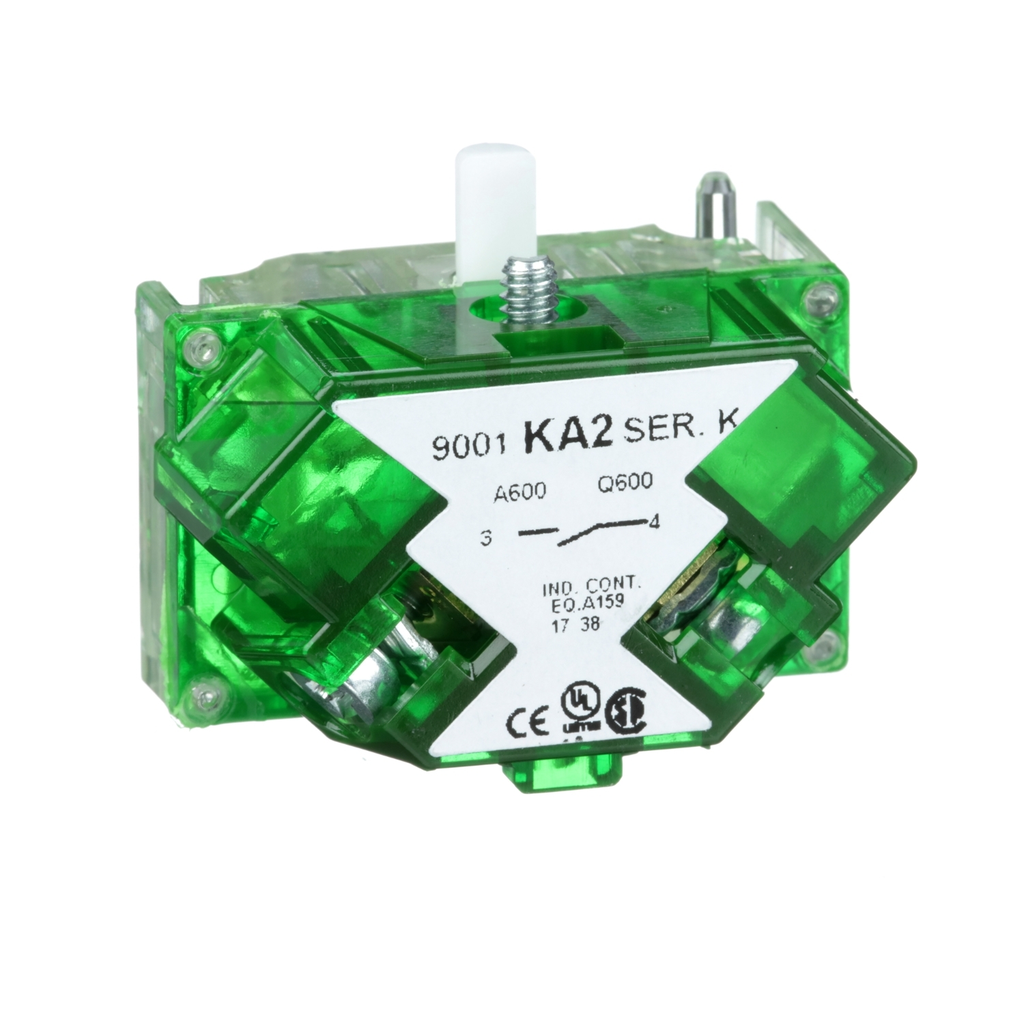

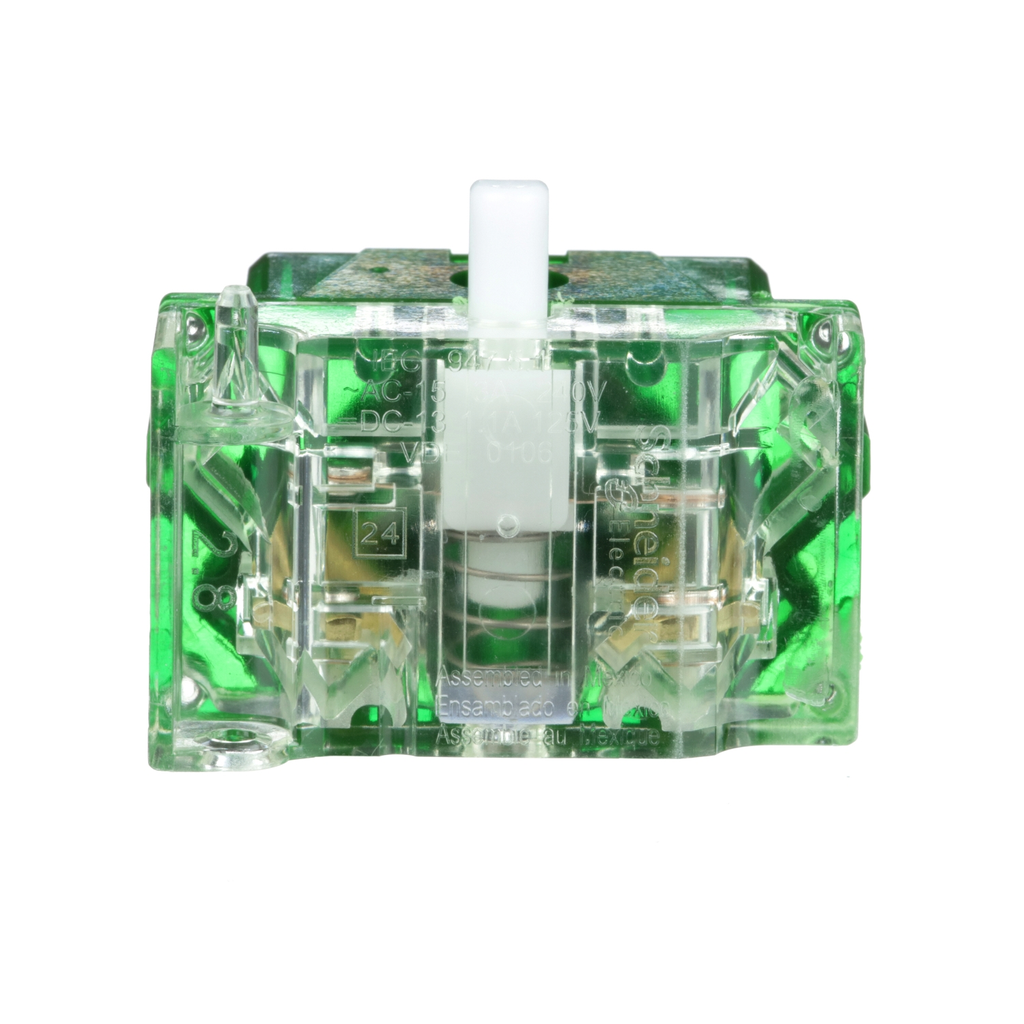

Product image for Square D 9001KA2 600 VAC 10 Amp 1NO Silver Alloy Screw Clamp Terminal Push Button Contact Block
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D 9001KA2 600 VAC 10 Amp 1NO Silver Alloy Screw Clamp Terminal Push Button Contact Block

Manufacturer: Square-D / Schneider | Catalog # 9001KA2 | Cooper Electric Part # 56048
$23.71/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
56 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. Its protection index is IP20, protecting operators from unexpected contact with live circuits. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Technical Information

Action
Standard
Amperage
10 Amp
Contact Configuration
1 NO
Contact Material
Silver Alloy
Net Weight
0.023 kg
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,UL 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Contact block with protected terminals
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001K

General Product Info

12-Digit UPC
785901880011
GTiN
00785901880011
Product UPC
78590188001
Weight
0.023 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9001K95
  • 9001KR9R
  • 9001KR1U
  • 9001KS11K1
  • 9001K35
  • 9001SKR1U
  • 9001KS43B
Cross Sell Products
  • 9001KA1
  • 9001KYG1
  • 9001KA3
  • 9001KA4
  • 9001KA41
  • 9001KA5
  • 9001KA51
  • 9001KA52
  • 9001KA53
  • 9001KA6
