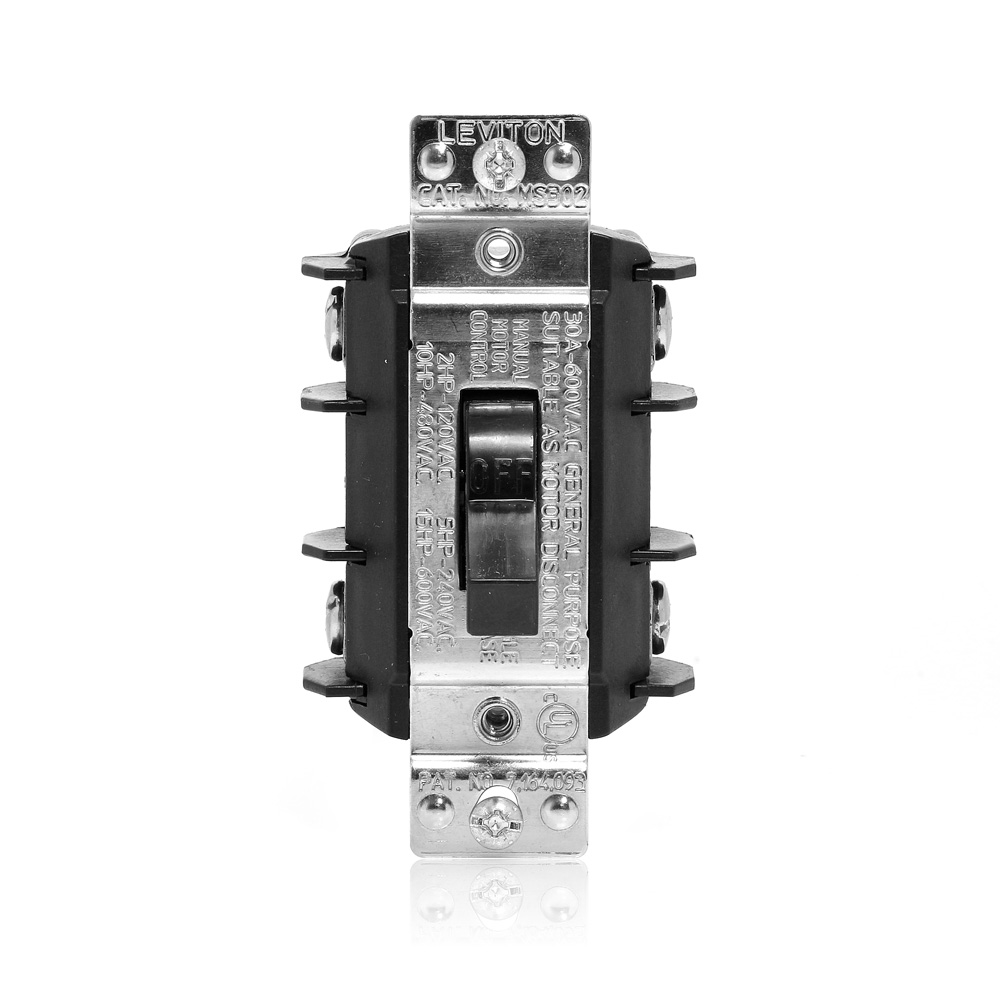

Product image for LEV MS302-DS EB NON-REV MTR STRT TG
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

LEV MS302-DS EB NON-REV MTR STRT TG

Manufacturer: Leviton Mfg Co | Catalog # MS302-DS | Cooper Electric Part # 552038
$45.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
30 Amp, 600 Volt, 2-Pole, Single-Phase Single Throw AC Manual Motor Controller, Suitable as Motor Disconnect, Standard Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring, - Black

Technical Information

Action
DPST
Actuator
Toggle
Amperage
30 Amp
Applications
Commercial
Base Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Configuration
DPST
Contact Material
Silver-Cadmium
Device Type
Toggle Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Polyester
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Non-Grounding
NEMA
WD-1
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
3.75 H x 23 W x 2.46 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rise
50 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Thermoplastic Polyester
Torque
20 lb-in
Type
Double-Pole AC Motor Starter Switch,Standard Toggle
Voltage
600 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477374139
Color
Black
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTiN
00078477374139
Product UPC
07847737413

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • White
Features
  • Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
