3M 5552 Cold Shrink 5 kV (3 Splices/Kit) Rubber Splice Kit (7000006047)

Manufacturer: 3M | Catalog # 7000006047 | Cooper Electric Part # 55123
$2,739.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure

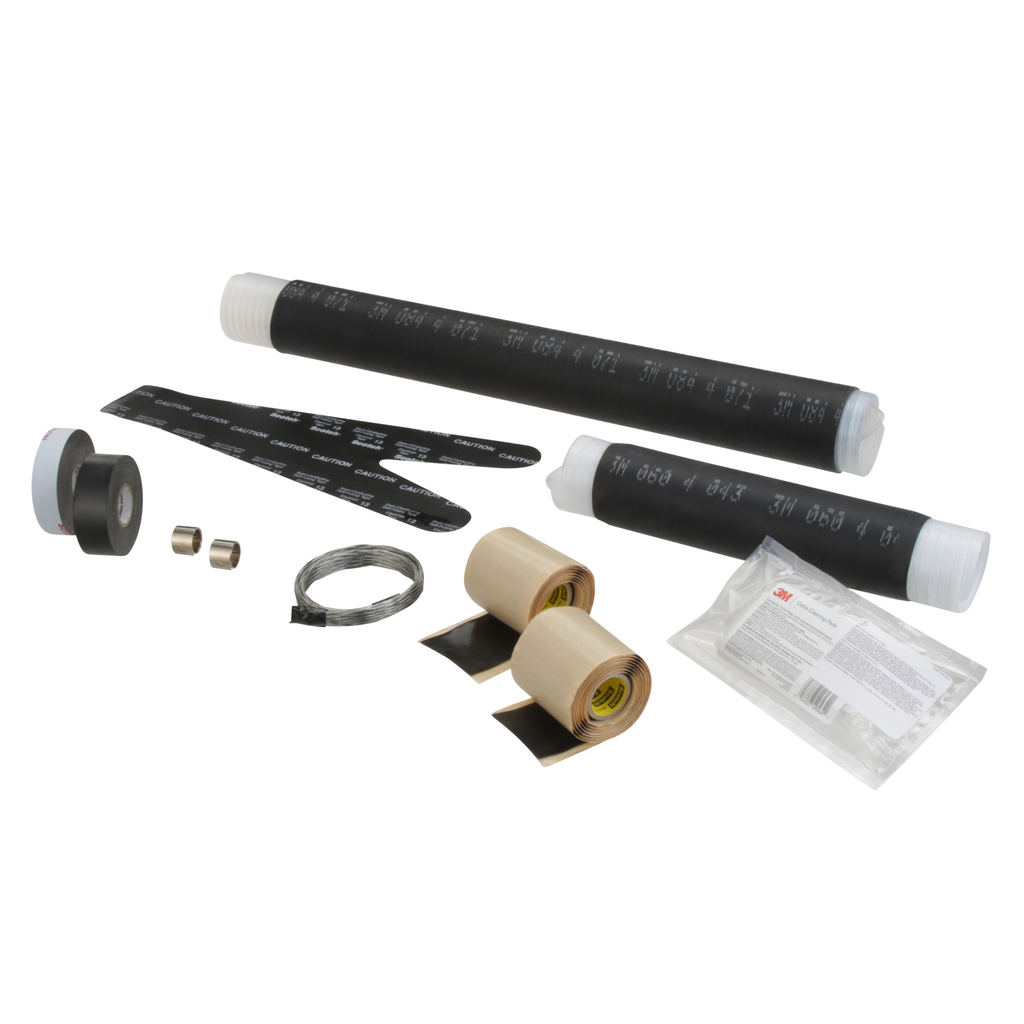

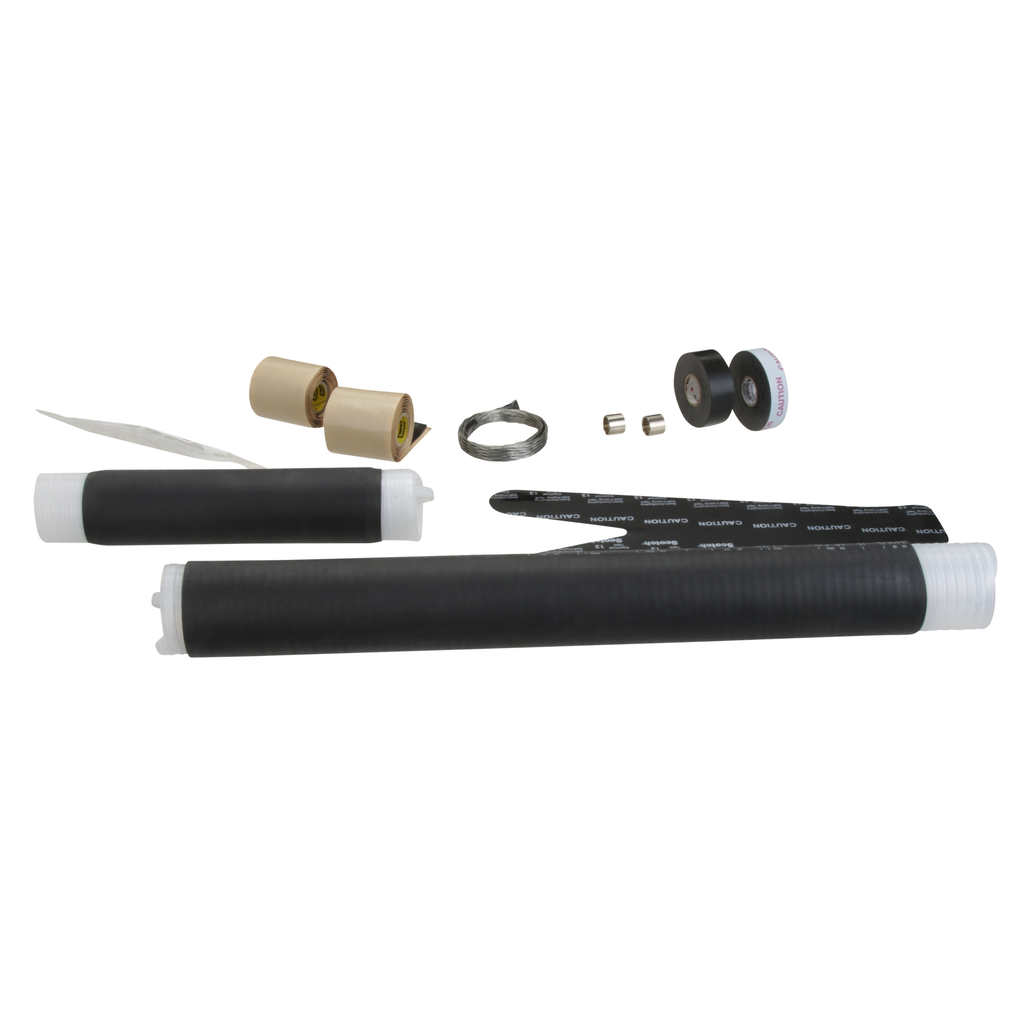

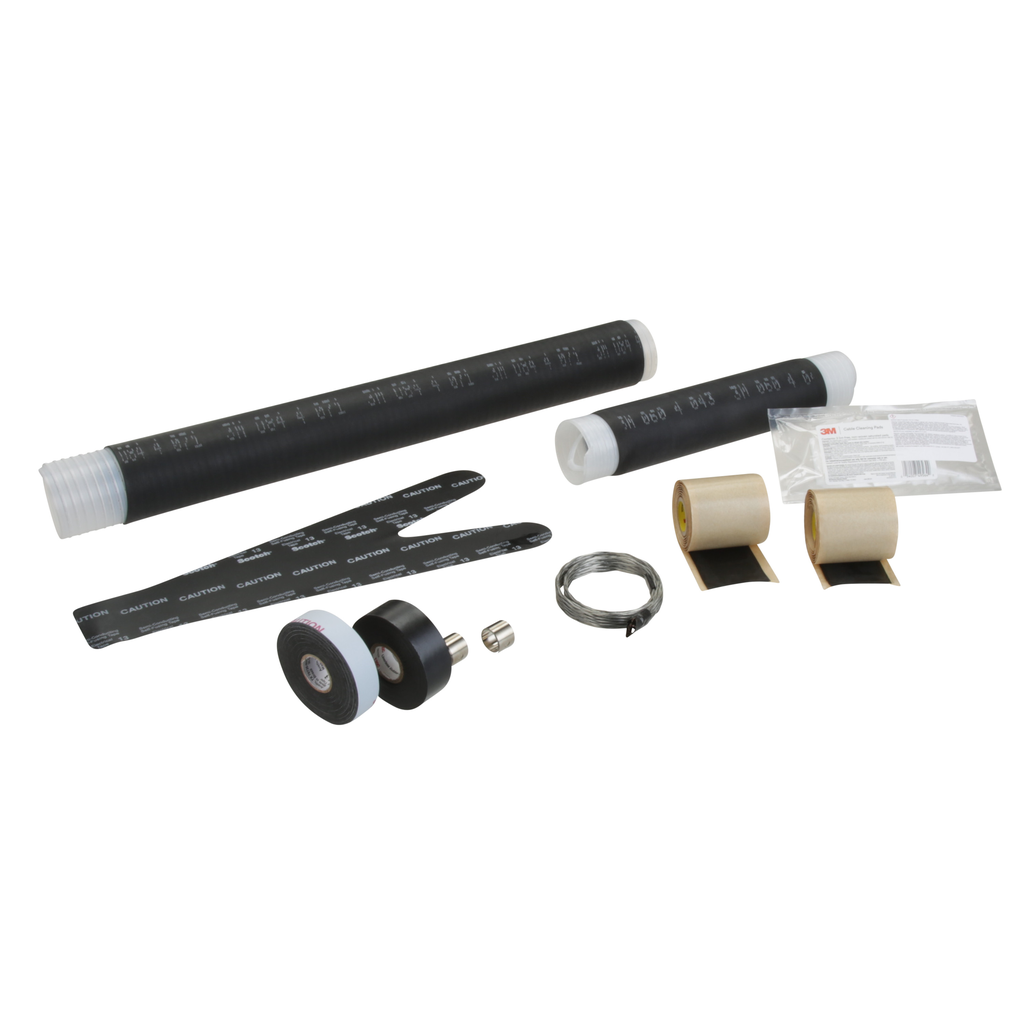

The 3M™ Cold Shrink Rubber Splicing Kit contains all the materials (except connectors and optional ground strap) required to construct three single conductor splices on tape shield, wire shield or UniShield® Cables.

Technical Information

Applications
Cable Connection
Cable Size
250 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil (Cu Only)
Conductor Size
500 kcmil
Material
Rubber
Number of Conductors
1
Splice Type
Cold Shrink
Type
Inline Splice
Voltage
5 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007090908
Color
Black
GTiN
00054007090908
Product Series
5550 Series
Product Type
Splice
Product UPC
05400709090

Dimensions

Length
21 Inch
Overall Length
21.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Provides splicing on tape shield, wire shield and UniShield® cables
  • This kit is suitable for use on solid dielectric cables, indoor or outdoor locations and direct-burial applications
  • Insulator and jacket is made of EPDM for easy installation
  • Rated for 5/8 kV applications
  • IEEE Approved
