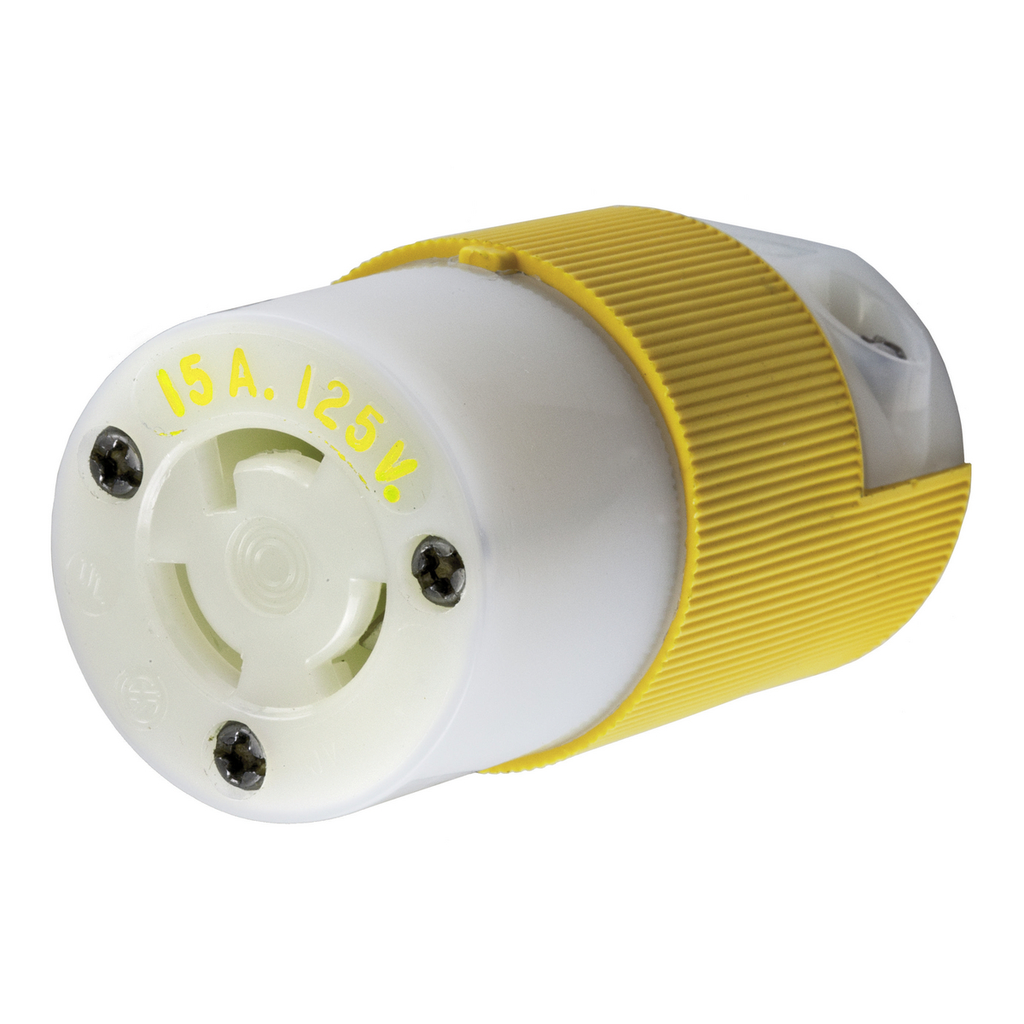

Product image for Hubbell HBL47CM29C Locking Connector, CM, 15A 125V L5-15R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL47CM29C Locking Connector, CM, 15A 125V L5-15R

Manufacturer: Hubbell Wiring Device | Catalog # HBL47CM29C | Cooper Electric Part # 550494
$56.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Marine Grade, Female Insulgrip® Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Yellow and White Nylon.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Current
15 Amp
Grade
Marine
Grounding
Non-Grounding
Material
Composite
Mounting Type
Cord
NEMA
L5-15R
Number of Conductors
2-Wire Non-Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Insulated
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585160702
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585160702
Product UPC
78358516070
Weight
0.20 lb

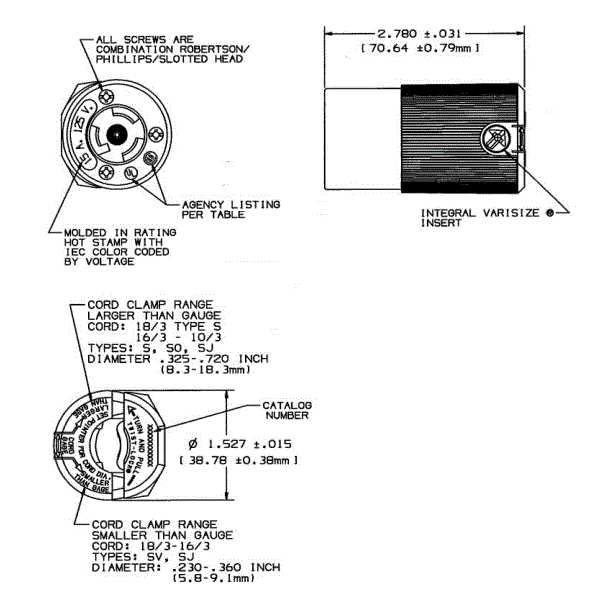

Dimensions

Height
2.78 Inch
Length
1.53 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip thats impact and chemical resistant
  • Corrosion Resistant
