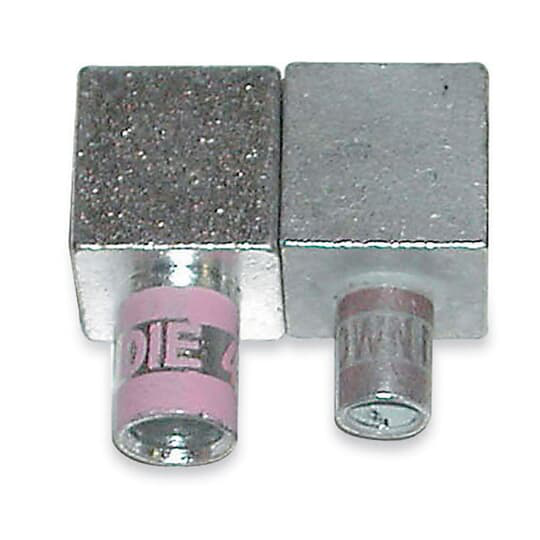

Product image for Thomas & Betts MD2M-3 Disconnect Motor
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts MD2M-3 Disconnect Motor

Manufacturer: ABB | Thomas & Betts | Catalog # MD2M-3 | Cooper Electric Part # 549724
$13,608.40/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
KUBE Male (One Load) Copper Motor Pigtail Disconnect, Wire Size 2 AWG, Body Size 3, Die Color Code Brown

Technical Information

Conductor Size
2 AWG
Contact Material
Copper
Material
Copper
Standard
UL E9809
Type
One Load, Plug
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210834771
Color
Brown
Finish
Tin Plated
GTiN
05414363155430
Product UPC
78621083477
Notes
  • Always use the same body size when selecting male and female disconnects. Use insulating boots matching the disconnect body size. To protect the connection from moisture and dirt, use sealing compound catalog number MDBOOT-SEAL.
Certifications
  • CSA
  • UL
Features
  • Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
  • Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.
