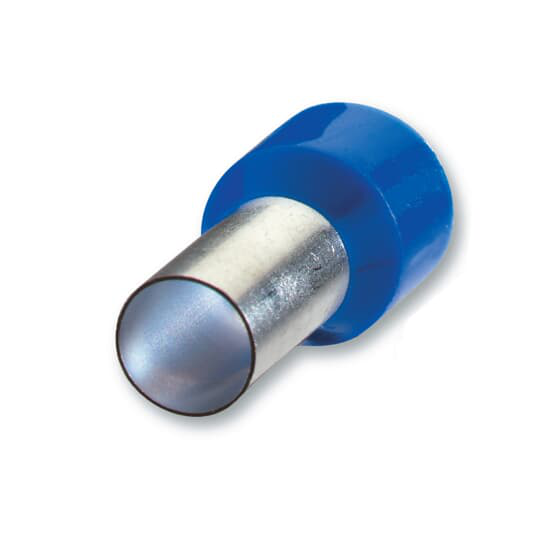

Product image for Thomas & Betts F2046 Insulated Ferrule - #6, 1.142", Blue (50/Pkg)
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F2046 Insulated Ferrule - #6, 1.142", Blue (50/Pkg)

Manufacturer: ABB | Thomas & Betts | Catalog # F2046 | Cooper Electric Part # 549709
$162.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
738 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

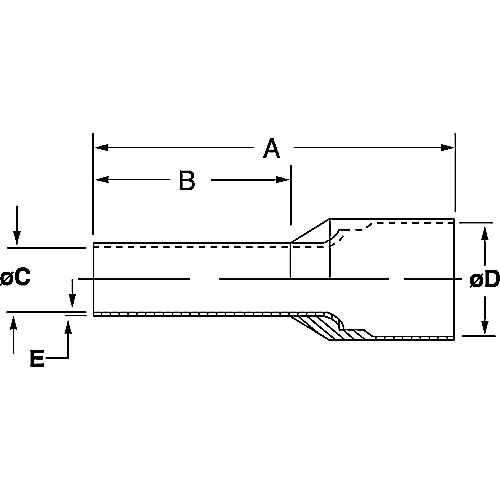

Polypropylene-Insulated Ferrule, Total Length 1.142 Inches/29mm, Pin Length .708 Inches/18mm, Pin Diameter .236 Inches/6mm, Base Diameter .346 Inches/8.8mm, Wire Range 6 AWG/16.00mm2, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
6 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
18 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335506
Color
Blue
Finish
Electro Tin Plated
GTiN
05415022180671
Product UPC
78621033550

Dimensions

Overall Length
1.142 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
