Thomas & Betts B19 18-14 AWG Wire Range #6 Bolt Hole Metallic Non-Insulated Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # B19 | Cooper Electric Part # 549670
$40.88/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

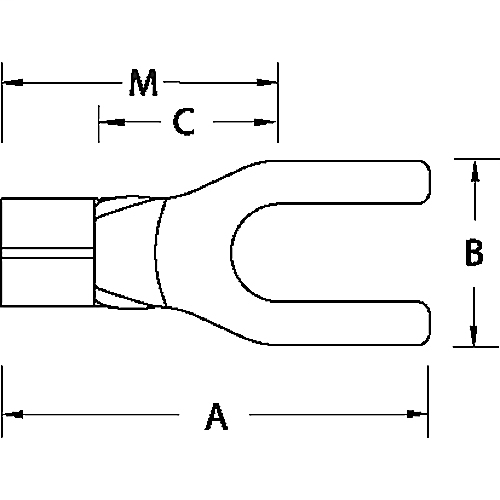

Non-Insulated Fork Terminal, Length .66 Inches, Width .25 Inches, Bolt Hole #6, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
18-14 AWG
Insulated?
No
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#6
Temperature Rating
150 degrees C
Type
Non-Insulated, Locking, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210808994
Box Quantity
10000
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363935162
Product UPC
78621080899
Features
  • These non-insulated fork terminals are made of electrolytic copper for high conductivity.
  • They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
  • Serrated barrel increases grip on wire.
  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
