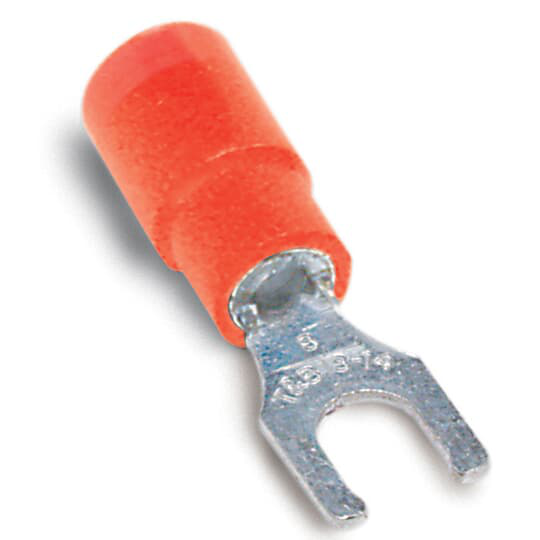

Product image for Thomas & Betts 18RA-8FLX 22-16 AWG Expanded Insulated Vinyl Locking Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts 18RA-8FLX 22-16 AWG Expanded Insulated Vinyl Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 18RA-8FLX | Cooper Electric Part # 549619
$165.17/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Expanded Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Applications
For Copper Conductors
Conductor Size
22-18 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Vinyl Insulated Locking Fork Terminal
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806471
Color
Red
Finish
Electro Tin Plated
GTiN
05415022344837
Product UPC
78621080647
Used With
ERG4001, WT145C, WT2000, WT112M, WT145C Crimp Tool

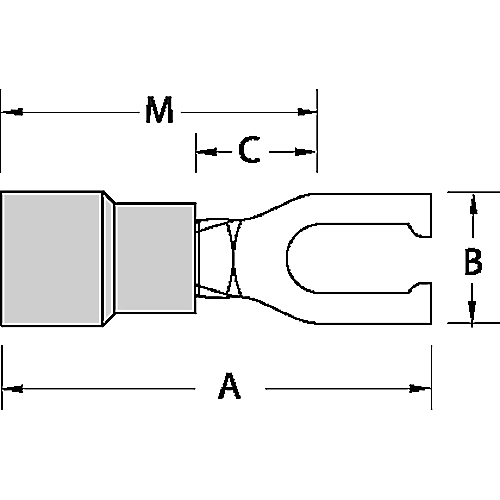

Dimensions

Height
3.1 Inch
Length
0.97 Inch
Thickness
.03 in
Width
0.29 in
Certifications
  • CSA
  • UL
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
