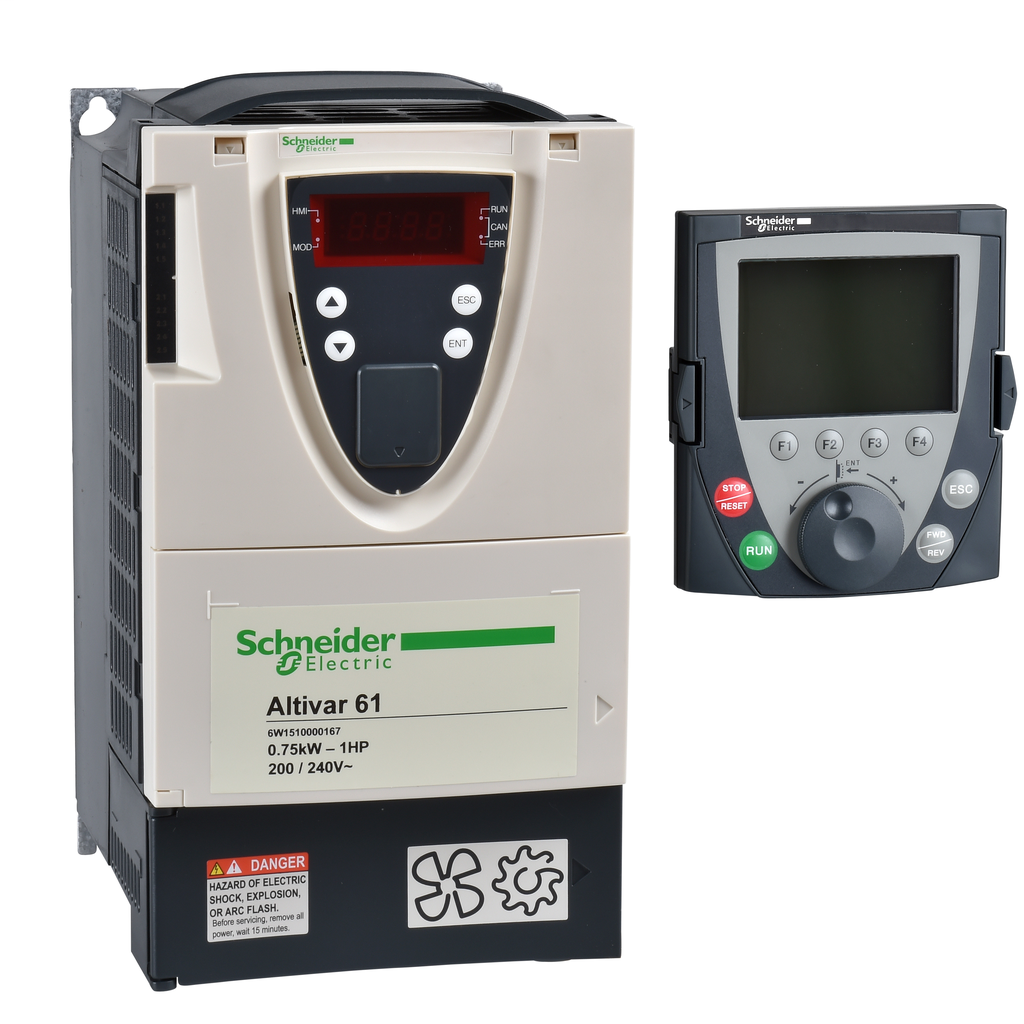

Square D ATV61H075M3 230 VAC 1 Hp 3-Phase Variable Speed Drive

Manufacturer: Square-D / Schneider | Catalog # ATV61H075M3 | Cooper Electric Part # 548880
$639.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Frequency inverters for 3-phase asynchronous motors from 1 to 900 HP, variable torque applications for 575-690V applications. For 230V and 460V drive applications consider the new Altivar Process ATV600 drive family.

Technical Information

Applications
VARIABLE TORQUE
Enclosure
IP20
Number of Phases
3 Phase
Output
3-PHASE
Size
FRAME 2
Storage Temperature
-13degrees To 158 degrees F (-25degrees To 70 degrees C)
TC Connection
AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR TERMINAL 2.5 MMA / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB TERMINAL 6 MMA / AWG 8
Torque Rating
150 OF NOMINAL MOTOR TORQUE FOR 2 SECONDS, 110 FOR 60 SECONDS
Type
AC DRIVE
Voltage
208/240VAC
Wattage
0.75 kW (0.37 kW@1-PHASE)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ALTIVAR 61

General Product Info

12-Digit UPC
785901433521
Environmental Conditions
-10-50 AC WITHOUT)-50-60 AC WITH DERATING FACTOR)
GTiN
00785901433521
Product UPC
78590143352

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Country of Origin
Indonesia
  • Multi-pump: With the programmable card multi-pump, Altivar 61 offers you flexibility, user-friendliness and adaptability for management of several pumps.
  • Pumps: Essential functions for your installation protection under load, overload and fluid absence detection.
  • High performance variable torque applications:
  • : exceptional performances, advanced functionalities.
  • Fan: Safety with forced function (fault inhibition, selection of operating direction and the reference speed).
