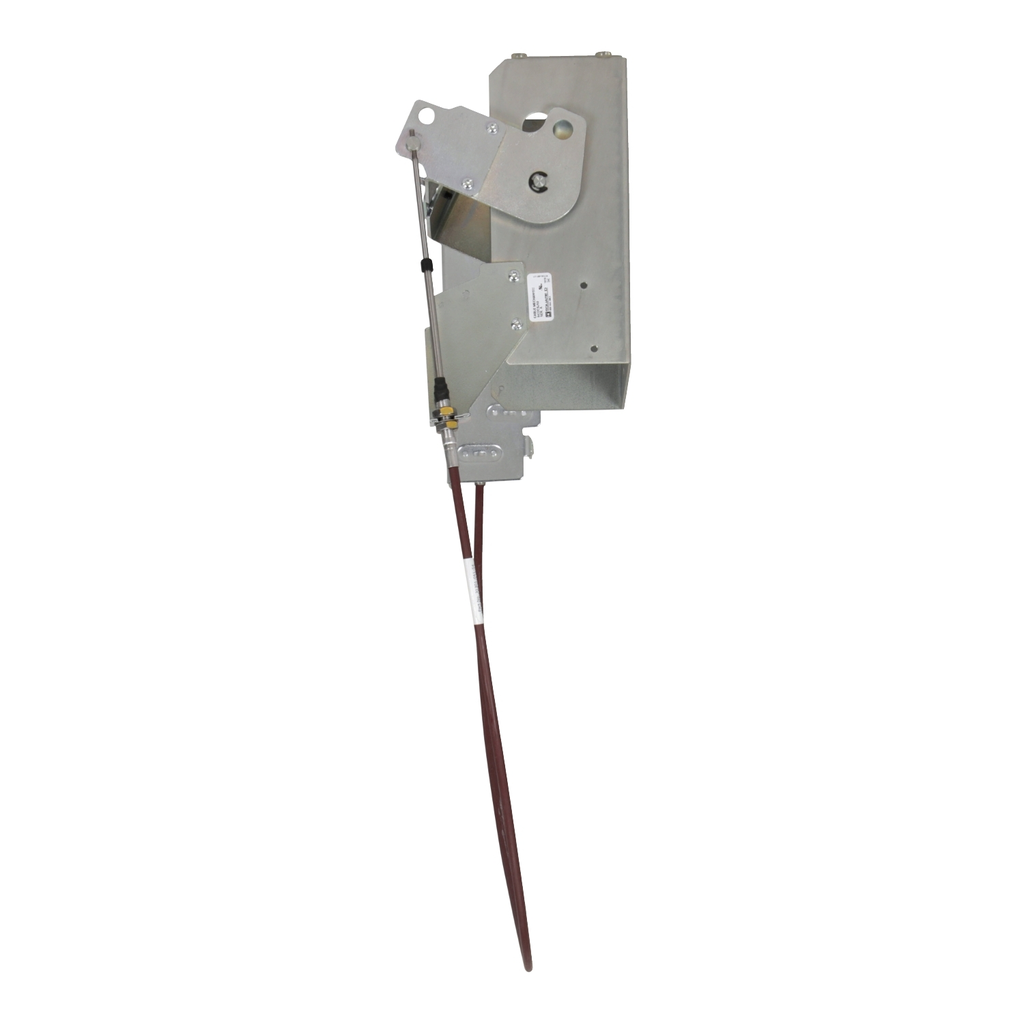

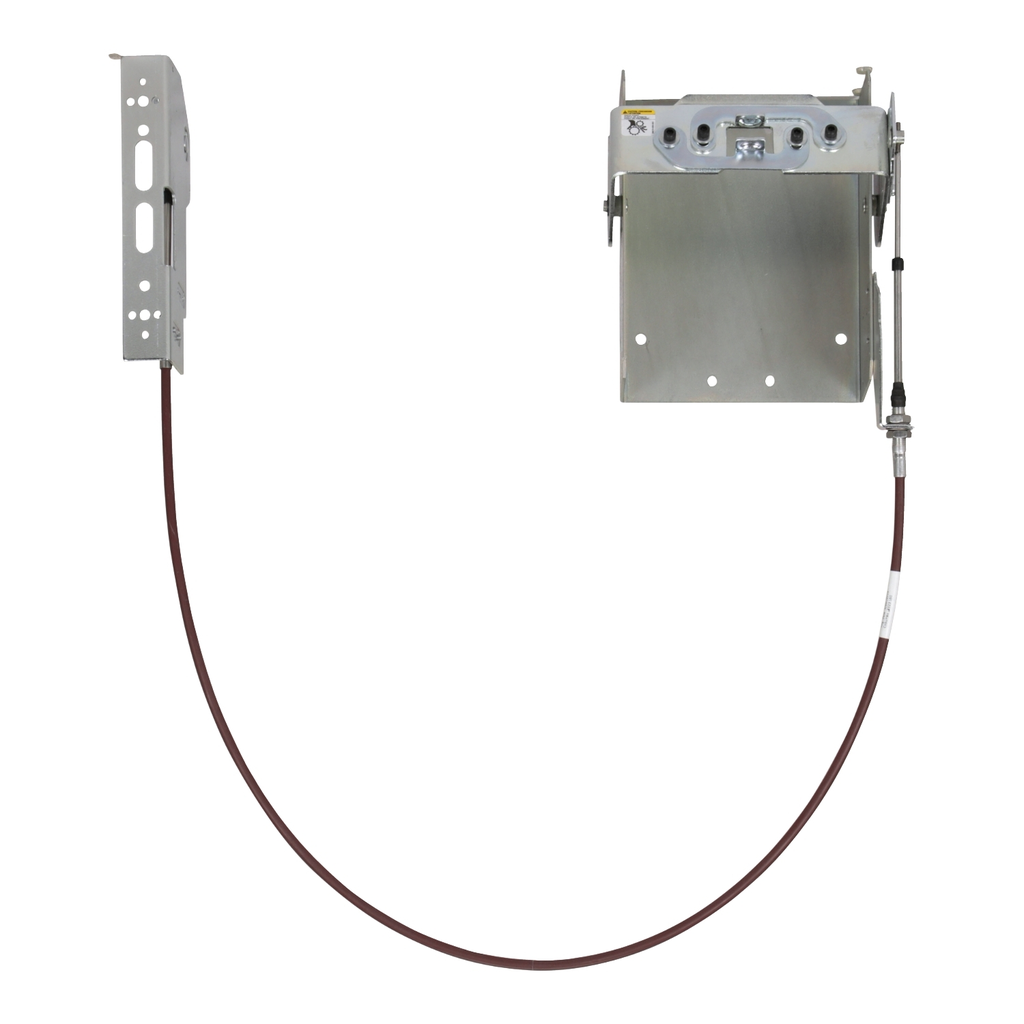

Square D 9422CSJ50 60 Inch Cable 3-Pole 600 Amp Circuit Breaker Cable Operating Mechanism

Manufacturer: Square-D / Schneider | Catalog # 9422CSJ50 | Cooper Electric Part # 548833
$649.67/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with PowerPacT D, PowerPacT L and MG-NSJ circuit breakers. This mechanism can be used with 600A 4 pole PowerPacT D, 600A 4 pole PowerPacT L and 600A 4 pole MG-NSJ circuit breakers. This mechanism has a 60 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Technical Information

Actuator
9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage
600 Amp
Applications
SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 60 INCHES
Circuit Breaker Type
MG-NSJ 3,PowerPact D 3
Enclosure
FLANGED
Number of Poles
3 Pole
Size
600A FRAME SIZE
TC Connection
DIRECT
Trip Type
MG-NSJ OR POWERPACT D FRAME CIRCUIT BREAKERS (3-POLE) 600A
Type
Single Cable Operating Mechanism

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901120698
GTiN
00785901120698
Product UPC
78590112069

Dimensions

Cable Length
60 in
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9422A1
  • 9422A1Y
  • 9422A2
  • 9422A3
  • 9422A4
