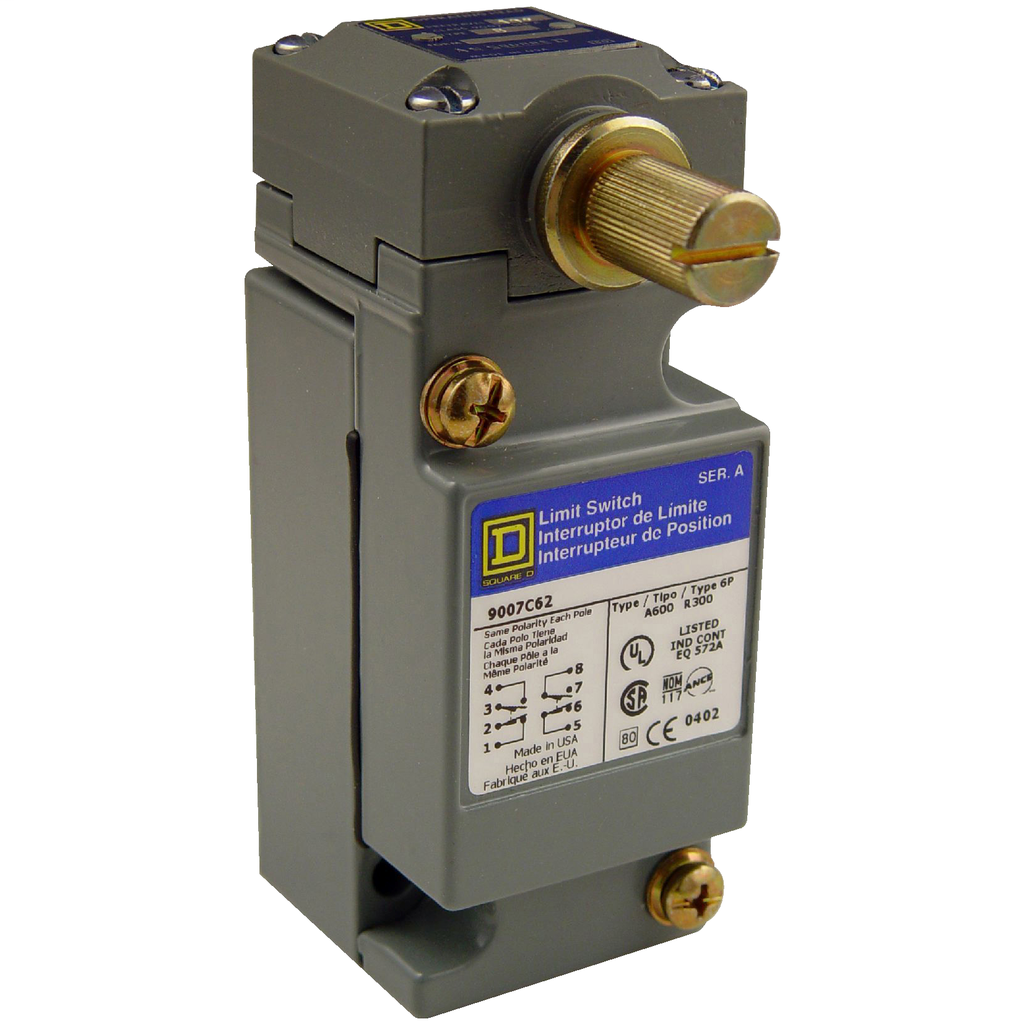

Product image for Square D 9007C62A2Y128 600 VAC 10 Amp 2NO 2NC Rotary Lever Arm Plug-In Heavy Duty Limit Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9007C62A2Y128 600 VAC 10 Amp 2NO 2NC Rotary Lever Arm Plug-In Heavy Duty Limit Switch

Manufacturer: Square-D / Schneider | Catalog # 9007C62A2Y128 | Cooper Electric Part # 548704
$240.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Schneider Electric,LIMIT SWITCH 600V 10AMP C +OPTIONS,-,metal,plug-in,-40...185 ..F for low temperature,1 entry for 1/2 - 14 NPT conforming to ANSI B1.20.1,plug-in,10 A,2(NC-NO),9007,limit switch,plug-in,rotary head,9007C,heavy duty,rotary head,low temperature,rotary

Technical Information

Action
CW AND CCW-FROM LEFT AND RIGHT,LATERAL APPROACH, 1 OR 2 PROGRAMMABLE DIRECTION,SNAP ACTION
Actuator
ZINC SPRING RETURN WITHOUT OPERATING LEVER LOW DIFFERENTIAL)9007C LEVER
Amperage
10 Amp
Applications
STANDARD BOX
Contact Configuration
2(NC-NO)
Contact Material
Silver
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Material
Metal
Number of Poles
2 Pole
Operating Cycles
1M
Operating Temperature
-40-185 Adegrees F LOW TEMPERATURE
Size
1.55 IN,2.5 IN,4.02-4.02 IN
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
LIMIT SWITCH,ROTARY HEAD
Voltage
1.2 A 600 Volt AC, A600 NEMA-1.5 A 480 Volt AC, A600 NEMA-3 A 240 Volt AC, A600 NEMA-6 A 120 Volt AC, A600 NEMA-0.11 A 250 Volt DC, R300 NEMA-0.55 A 125 Volt DC, R300 NEMA

Manufacturer Information

Brand
Square D
Sub Brand
9007C

General Product Info

12-Digit UPC
785901846895
GTiN
00785901846895
Product UPC
78590184689
Weight
1.25 lb

Dimensions

Depth
2-1/2 Inch
Height
4.02 Inch
Warranty Length
18 mth
Width
1.55 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
