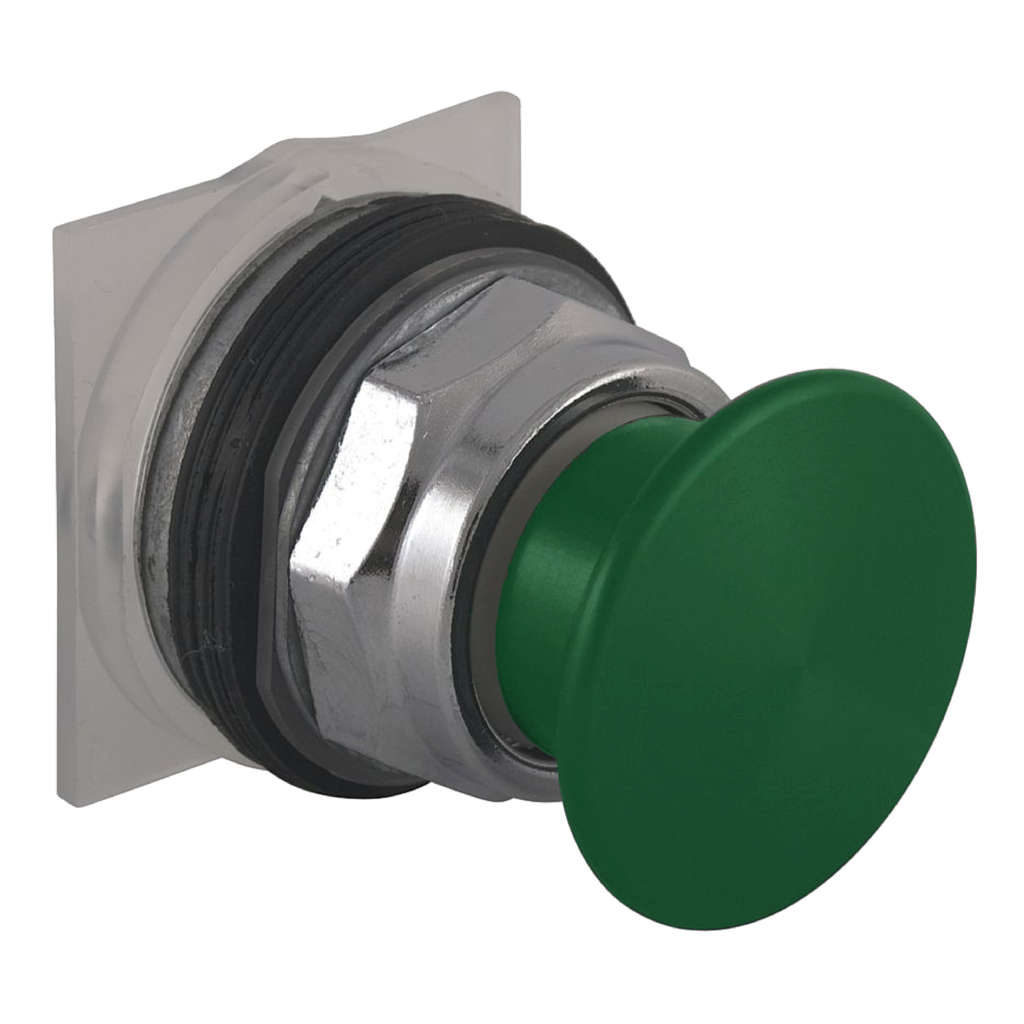

Product image for SQD 9001KR9GM94 Push-button head, H
Image thumbnail 0
Image thumbnail 1
Email

SQD 9001KR9GM94 Push-button head, H

Manufacturer: Square-D / Schneider | Catalog # 9001KR9GM94 | Cooper Electric Part # 548628
$138.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Push-button head, Harmony 9001K, metal, metal mushroom 40mm, green, 30mm, 2 positions, push-pull

Technical Information

Action
PUSH-PULL
Actuator
2 positions
Applications
Contact block 9001KA..
Bezel Material
Metal
Contact Configuration
Without contact block
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6
Indicator
GREEN
Net Weight
0.141 kg
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
Type
Mushroom head push-button
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
9001K

General Product Info

12-Digit UPC
785901815730
Color
Green
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901815730
Product UPC
78590181573
Weight
0.31 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
