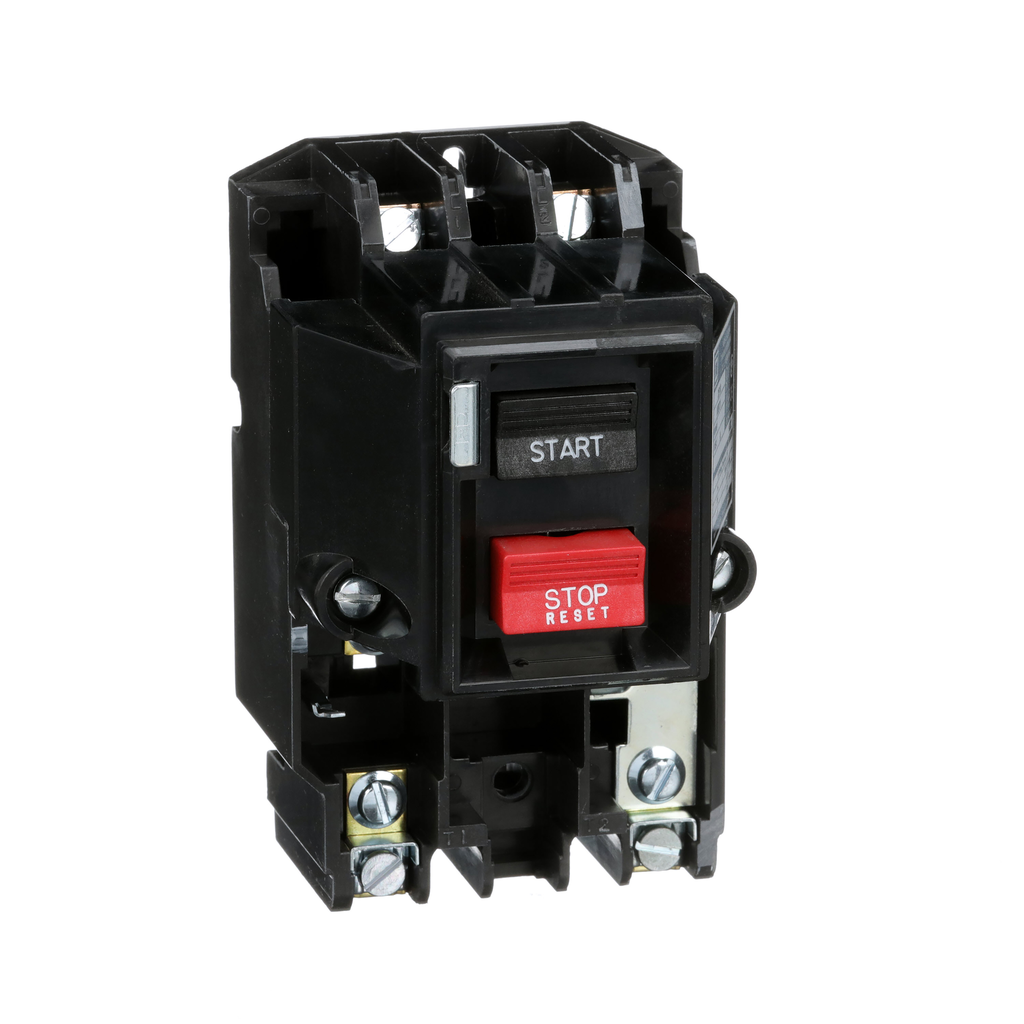

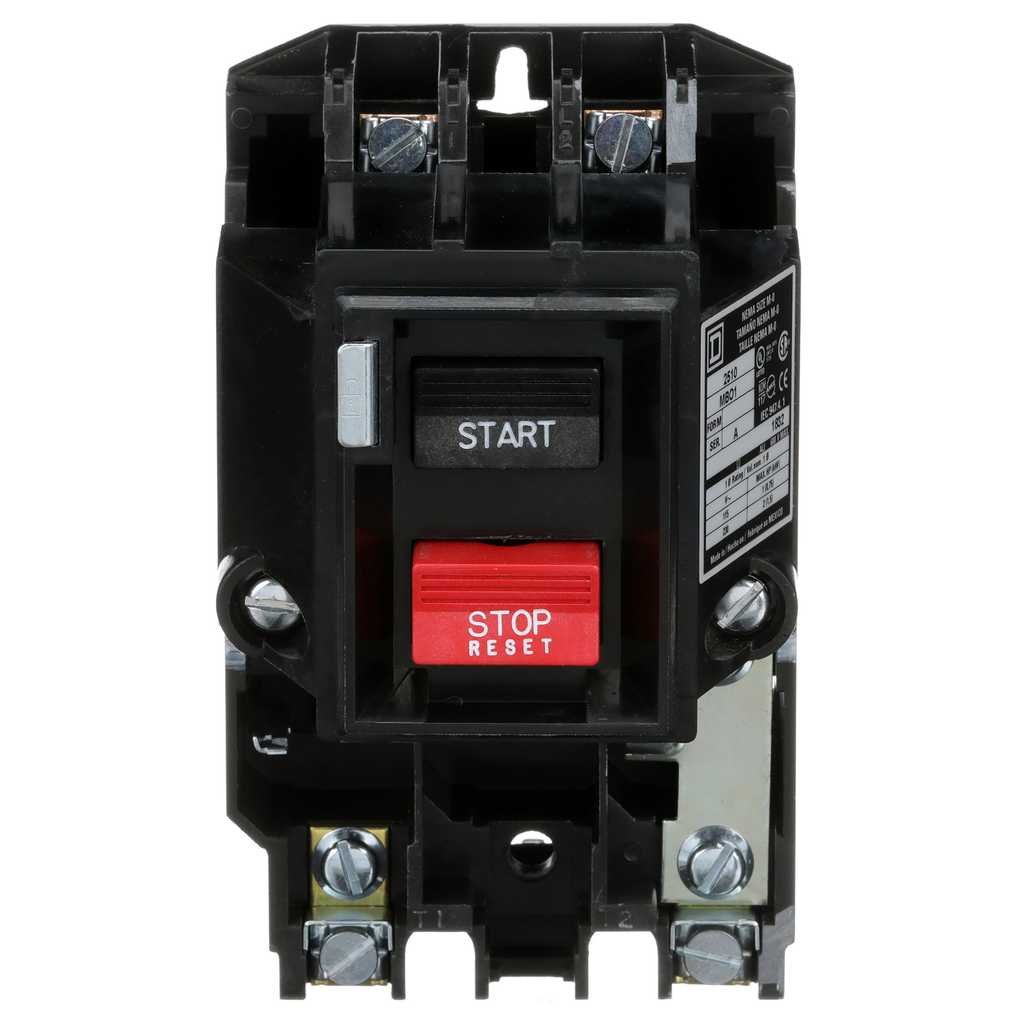

Square D 2510MBO1 230 VAC 18 Amp 2 Hp 2-Pole Open Type Non-Reversing Manual Starter

Manufacturer: Square-D / Schneider | Catalog # 2510MBO1 | Cooper Electric Part # 548445
$245.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical ap

Technical Information

Amperage
18A
Contact Configuration
Without
Enclosure
Not Rated
NEMA Size
M-0
Number of Poles
2 Pole
Reset Type
THERMAL - MELTING ALLOY
Size
4.03 in
TC Connection
Pressure wire clamp
Type
Manual Starter
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
M

General Product Info

12-Digit UPC
785901792826
Environmental Conditions
OPEN
GTiN
00785901792826
Product UPC
78590179282

Dimensions

Depth
4.03 Inch
Height
5.72 Inch
Warranty Length
18 mth
Width
3.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 05,UL Listed File E42243 CCN NLRV
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ue Rated Operational Voltage
  • 600 V AC
Accessories
  • B0.63
  • B0.71
  • B0.81
  • B0.92
  • B1.03
  • B1.16
  • B1.30
  • B1.45
  • B1.67
  • B1.88
Maximum Horse Power Rating
  • 1-1 hp 115 V AC, 1 phase
  • 2-2 hp 230 V AC, 1 phase
Accessory Products
  • B0.63
  • B0.63
  • B0.71
  • B0.71
  • B0.81
  • B0.81
  • B0.92
  • B0.92
  • B1.03
  • B1.03
  • B1.16
  • B1.16
  • B1.30
  • B1.30
  • B1.45
  • B1.45
  • B1.67
  • B1.67
  • B1.88
  • B1.88
AWG Gauge
  • AWG 14...AWG 8 copper
Product Certifications
  • UL listed file E42243 CCN NLRV
  • CSA LR60905 class 3211 05
