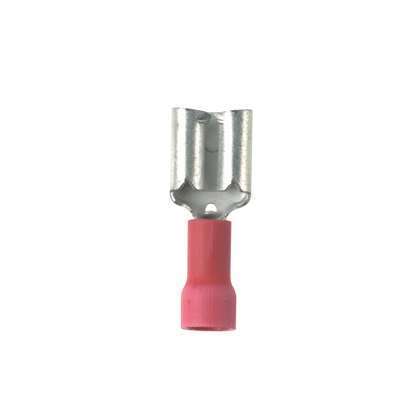

Product image for Panduit DV18-188B-MY Loose Piece Disconnect
Email

Panduit DV18-188B-MY Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DV18-188B-MY | Cooper Electric Part # 547317
$419.29 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Engineering Drawing Product Spec Sheet
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
22-16 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983408801
Color
Amber,Green,Red,White
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983408801
Product UPC
07498340880
UNSPSC
39121409

Dimensions

Height
0.1 Inch
Overall Length
0.76 in
Width
0.23 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
