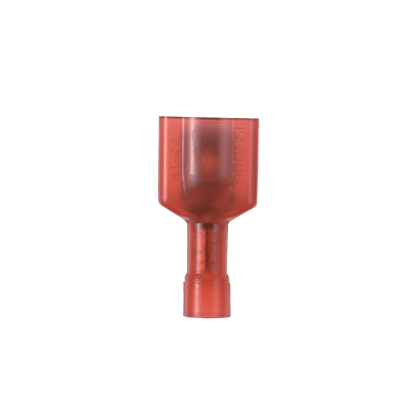

Product image for Panduit DNF18-250FIMB-D Nylon Fully Insulated Male Disconnect
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit DNF18-250FIMB-D Nylon Fully Insulated Male Disconnect

Manufacturer: Panduit Corp | Catalog # DNF18-250FIMB-D | Cooper Electric Part # 547316
$949.30/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing

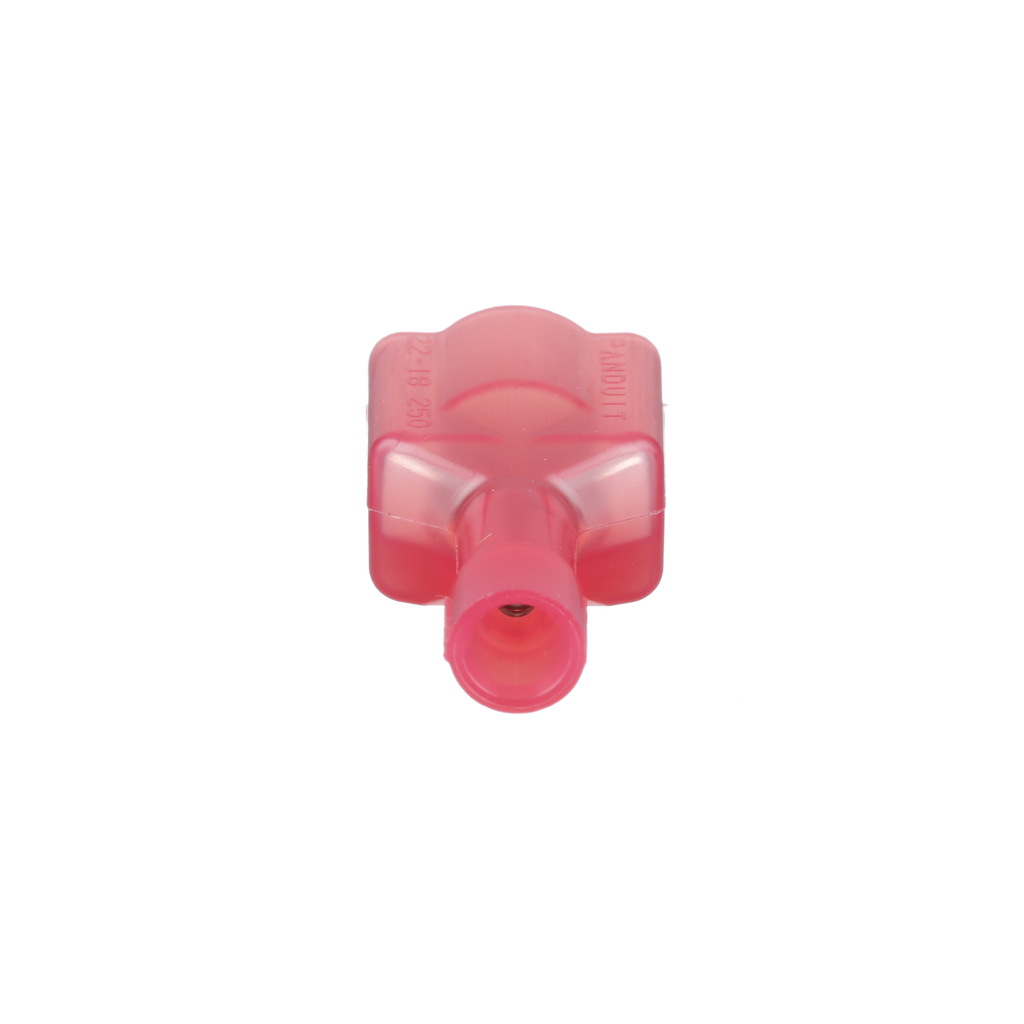

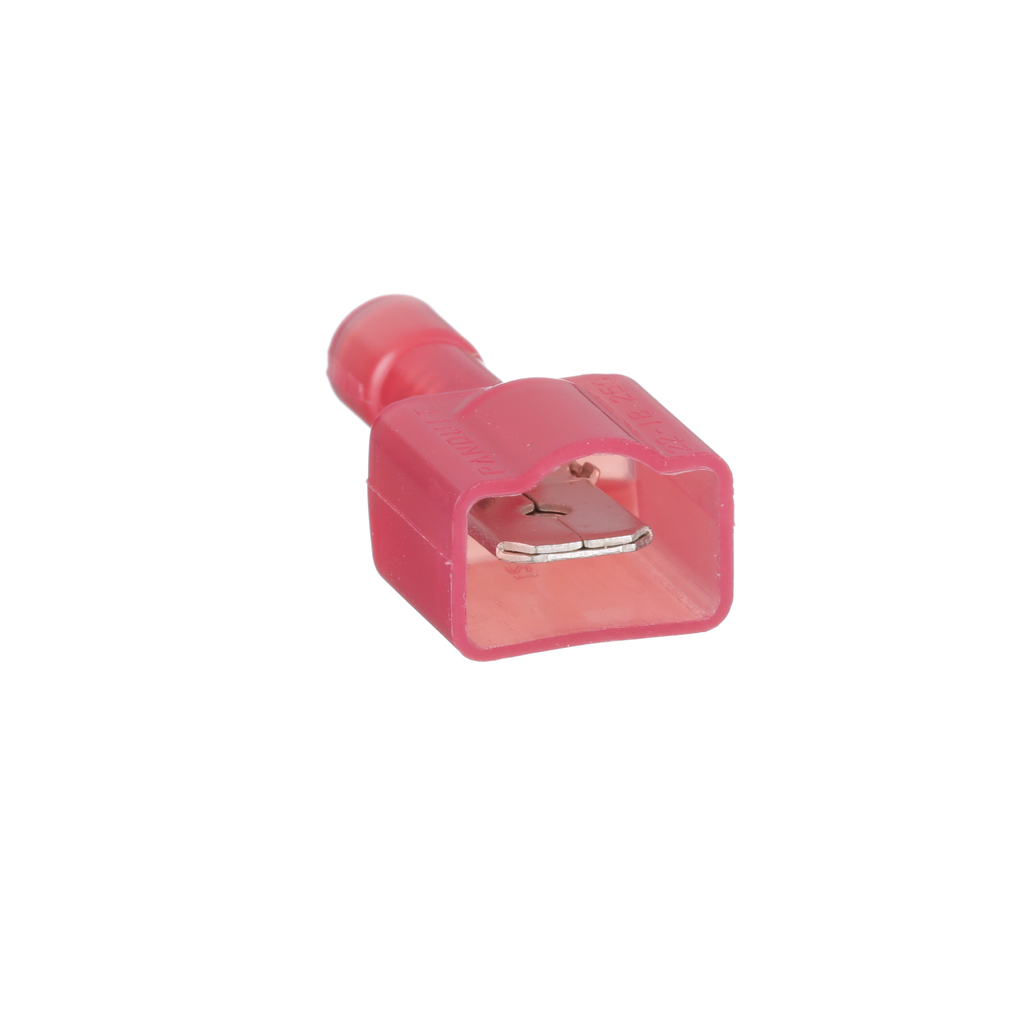

The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a red, nylon oversized housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.91" (23.1 mm) long and 0.45" (11.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in boxes of 500.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
22 AWG
Material
Brass
Max Operating Temperature
105 degrees C
TC Connection
Standard
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983824168
Color
Red
Finish
Nickel
GTiN
00074983824168
Product UPC
07498382416
UNSPSC
39121409

Dimensions

Height
0.34 Inch
Overall Length
0.91 in
Width
0.45 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
