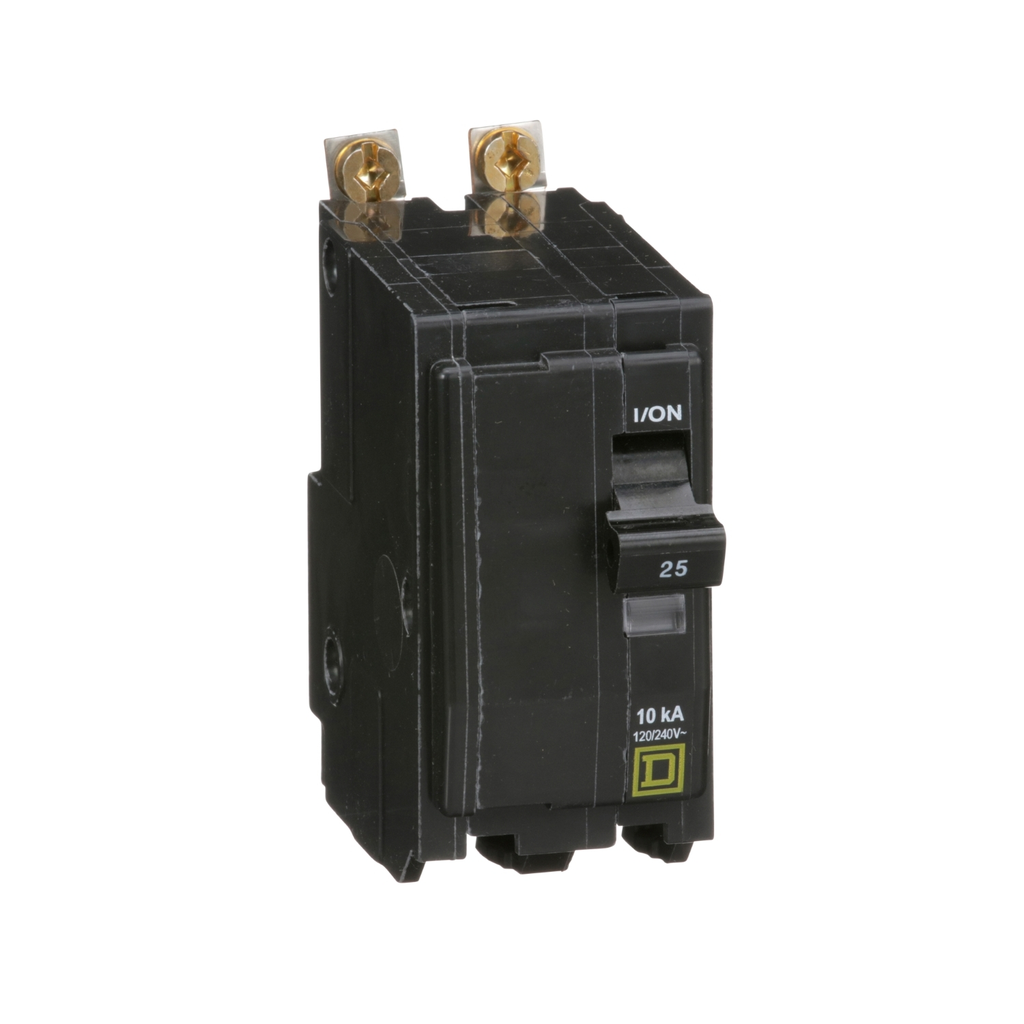

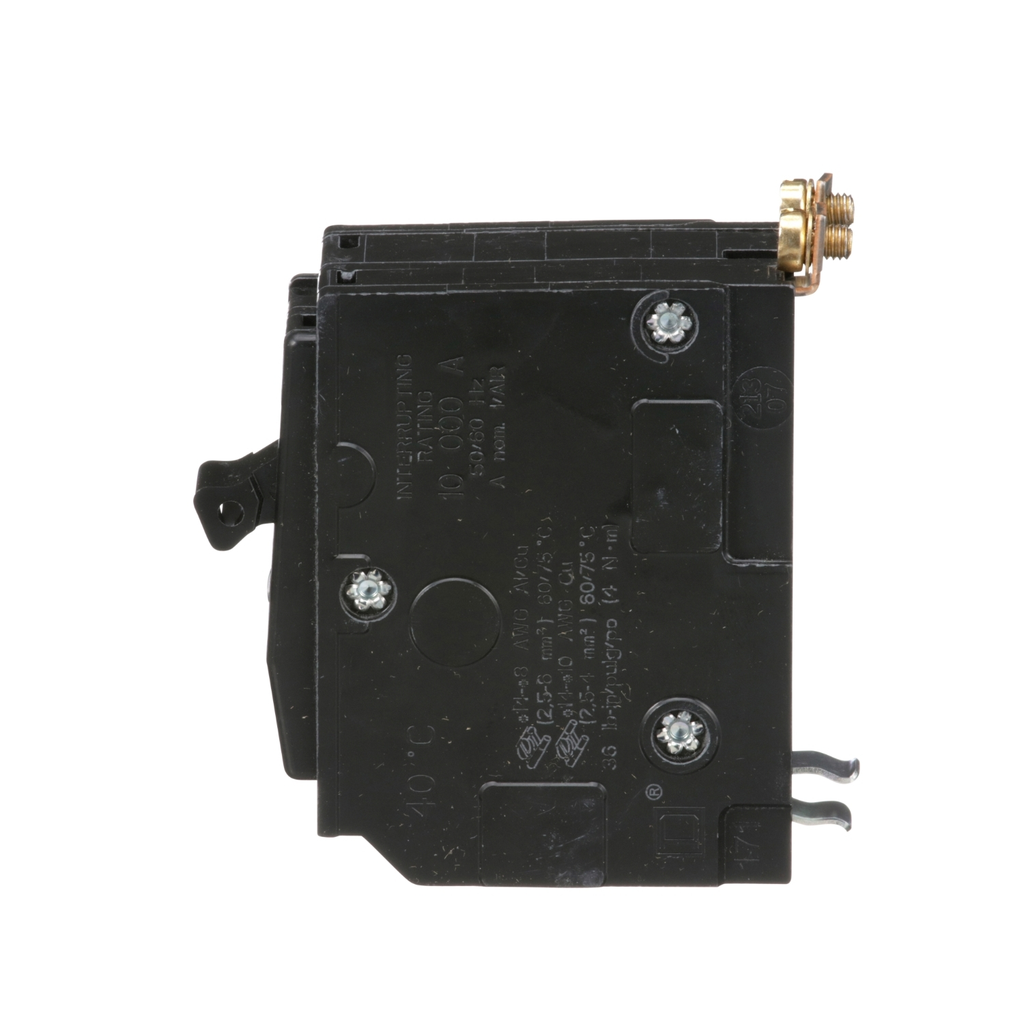

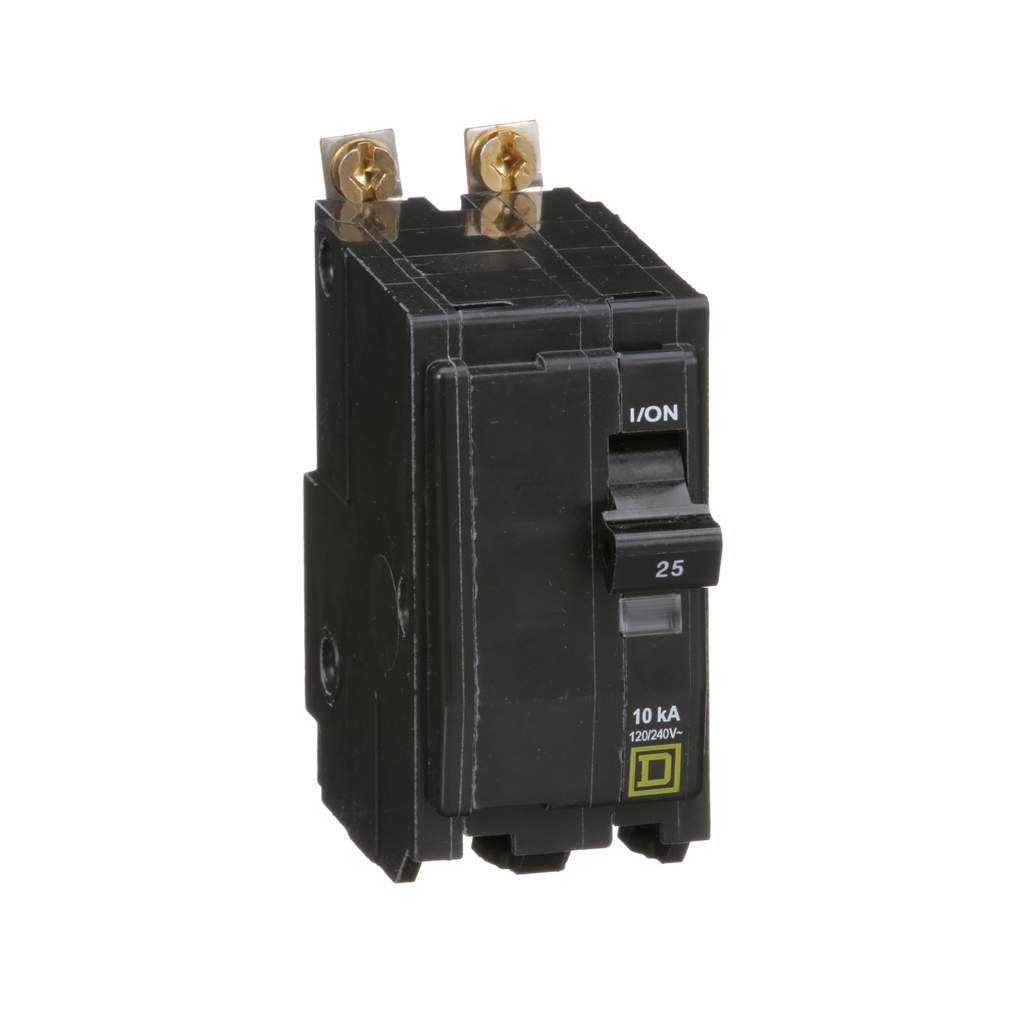

Square D QOB225 Miniature Circuit Breaker 25A 120/240V 1Ph 2P , Bolt-On

Manufacturer: Square-D / Schneider | Catalog # QOB225 | Cooper Electric Part # 54695
$91.54/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
18 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB225, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed.

Technical Information

Amperage
25 Amp
Applications
HACR rated
Circuit Breaker Type
Standard
Conductor Size
14-8 AWG
Current
25 Amp
Interrupt Rating
5, 10 kAIC
Line Rated Current
25 A
Mounting Type
Bolt-on
Net Weight
0.259 kg
Number of Poles
2 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Pressure plate
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901368281
GTiN
00785901368281
Product UPC
78590136828
Weight
0.259 kg

Dimensions

Depth
74 mm
Height
76 mm
Length
2.91 Inch
Warranty Length
18 mth
Width
38 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
