Burndy YAE14Z2BOX Nylon Flanged Fork Terminal For 16 - 14 AWG

Manufacturer: Burndy | Catalog # YAE14Z2BOX | Cooper Electric Part # 545892
$1.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Flanged Fork Terminal, 16-14 AWG, 4-6, .90 in L, 0.28 in W, Nylon Insulated, Multi-Finger Insulation Grip,600 Volts Max., 105 Deg C Max.

Technical Information

Color Coding
Blue
Conductor Type
CU C Str-Size
Connection Type
Flanged Fork Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Electro Tin
Temperature Rating
105 degrees C
Voltage
600 Volt

Manufacturer Information

Brand
Burndy

General Product Info

12-Digit UPC
781810563700
GTiN
00781810563700
Product UPC
78181056370

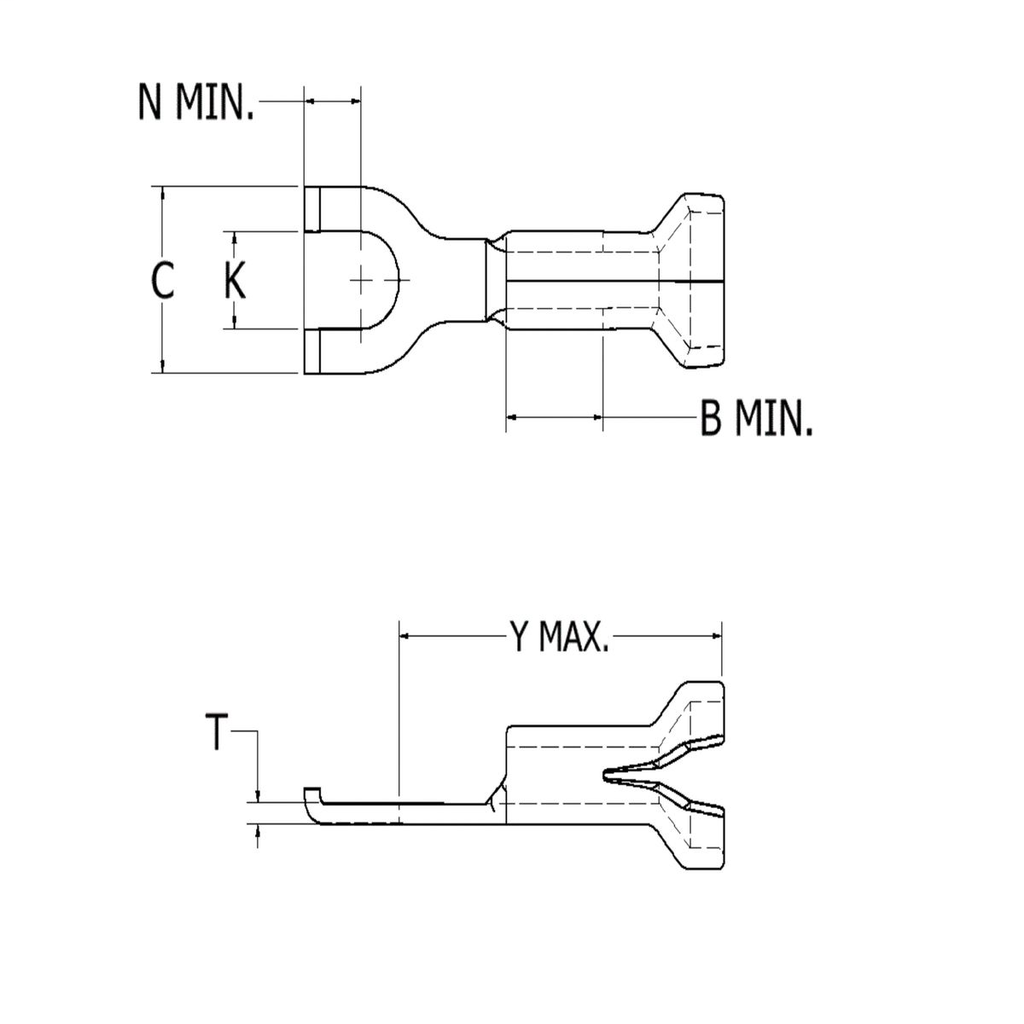

Dimensions

Height
0.15 Inch
Hole Size
0.146 in
Length
0.9 Inch
Overall Length
23 mm
Width
0.28 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Flange fork tongue design allows fast installation as screw only has to be loosened for termination
  • The flanges on the end of the fork terminal aid in preventing a slightly loose terminal from becoming fully disconnected from the screw
  • Flanges make re-securing a loose terminal easier
