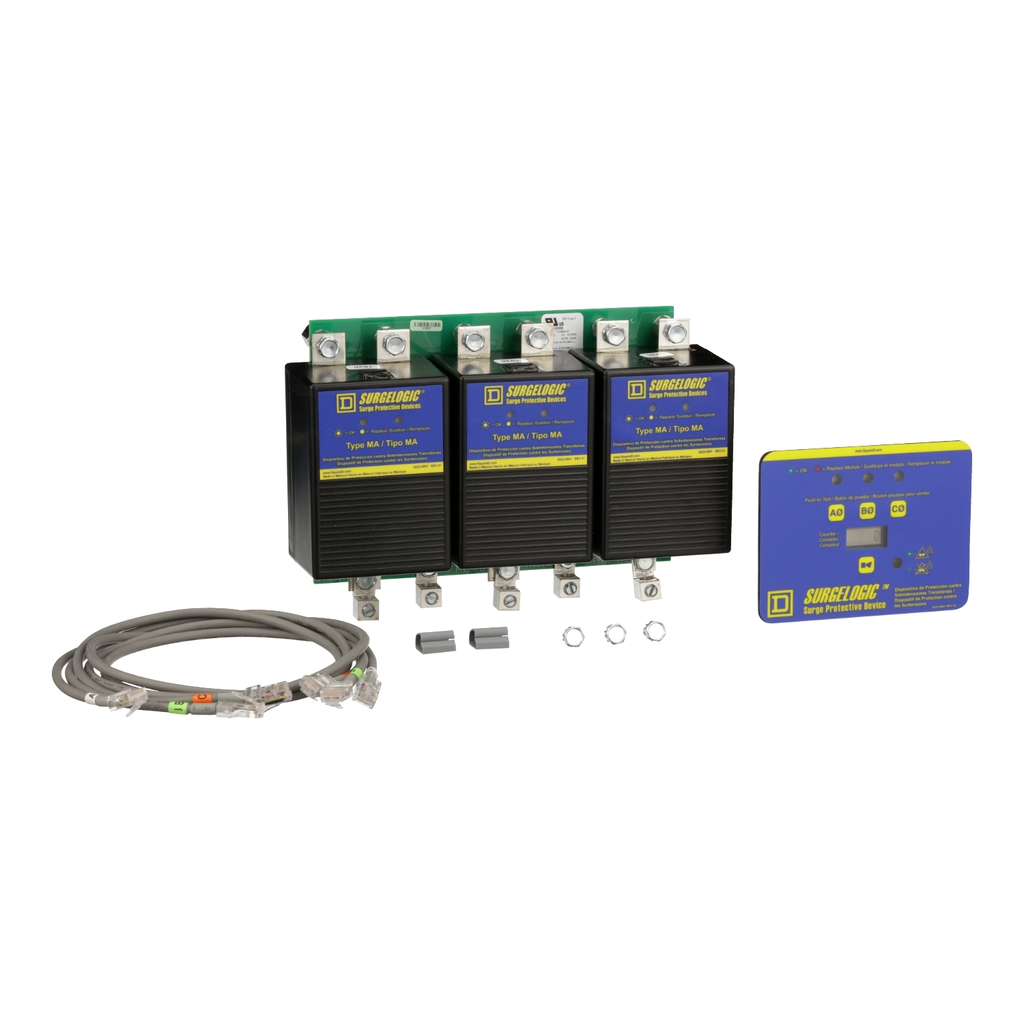

SQD TVS4IMA16O OEM assembler kit, S

Manufacturer: Square-D / Schneider | Catalog # TVS4IMA16O | Cooper Electric Part # 545100
$4,976.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Square D™ load center surge protective devices, TVS4IMA16O, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Technical Information

Enclosure
2
NEMA Size
2
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Size
3.65 in
Standard
CSA C22.2 No 8:1986,IEC 61643-1,UL 1283,UL 1449:ed. 4,UL 96A:ed. 12
TC Connection
Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m)
Type
Surge protection device;4-wire
Voltage
480 Volt

Manufacturer Information

Brand
Square D
Sub Brand
IMA

General Product Info

12-Digit UPC
785901600749
GTiN
00785901600749
Product UPC
78590160074

Dimensions

Depth
92.7 mm
Height
155.7 mm
Warranty Length
18 mth
Width
250.4 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
