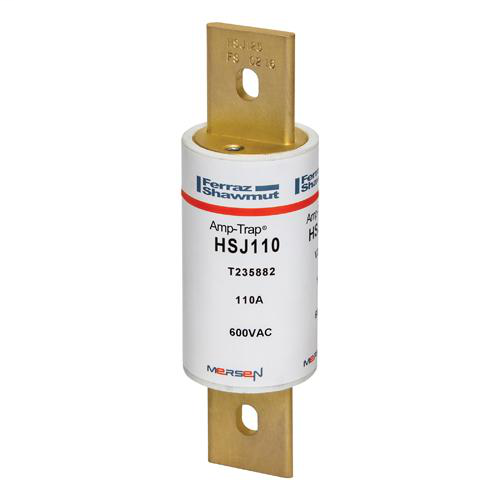

Product image for Mersen HSJ110 600V 110A CLASS J HS
Email

Mersen HSJ110 600V 110A CLASS J HS

Manufacturer: Mersen | Catalog # HSJ110 | Cooper Electric Part # 540833
$475.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.

Technical Information

Amperage
110 Amp
Applications
Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft-Starters, Solid State Relays
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
200 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Brass
Terminal Type
Blade
Type
North American, Current-Limiting, High Speed
Voltage
600 VAC, 500 VDC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001329600
Class
J
GTiN
10782001329607
Product UPC
78200132960
Weight
0.8 lb

Dimensions

Diameter
1.62 Inch
Length
5-3/4 Inch
Features
  • Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
  • Low I2t (low thermal energy)
  • Excellent cycling ability for frequent starts/stops without nuisance opening
Applications
  • Branch circuits
  • Control panels
  • Electronic motor controllers
  • Phase controllers
  • Drives
  • Soft-starters
  • Solid state relays
Approvals & Standards
  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
