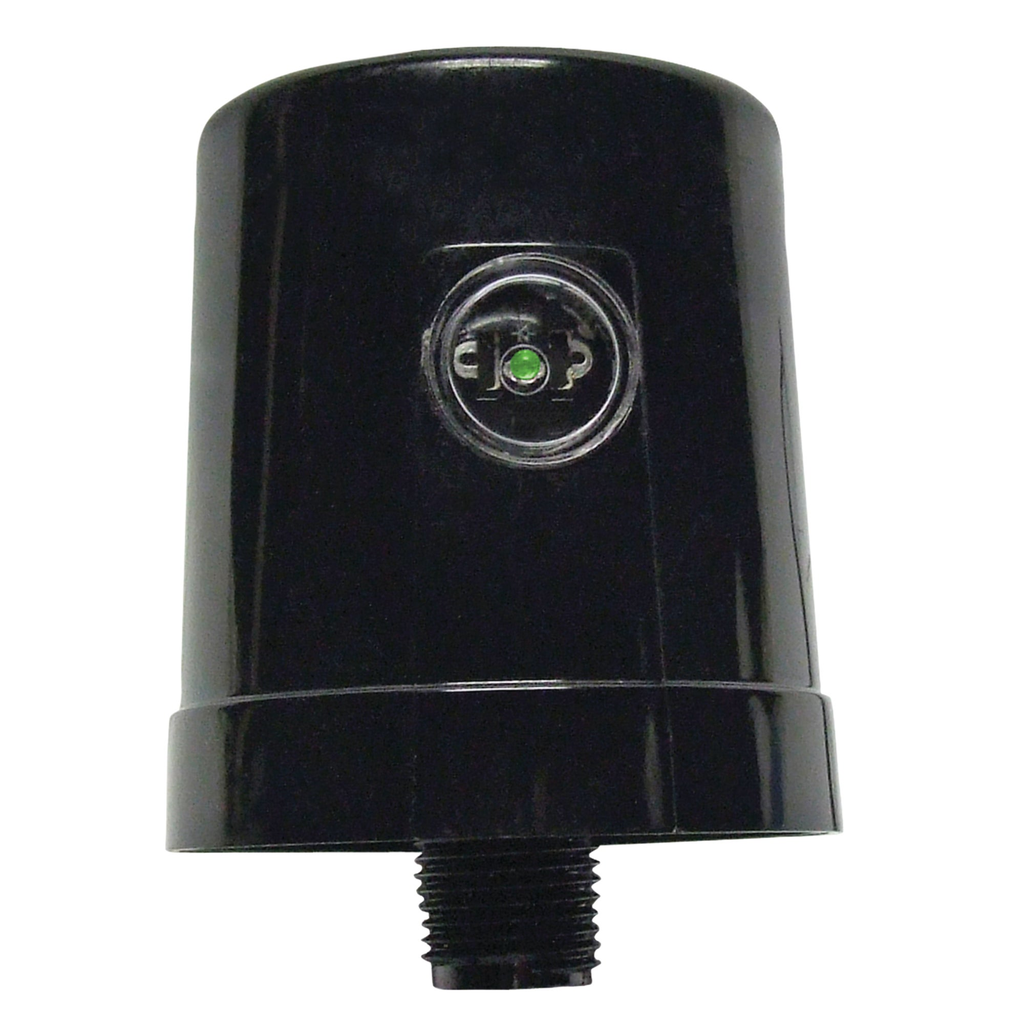

Product image for Intermatic AG4803C3 277/480V ARRESTER GUARD
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

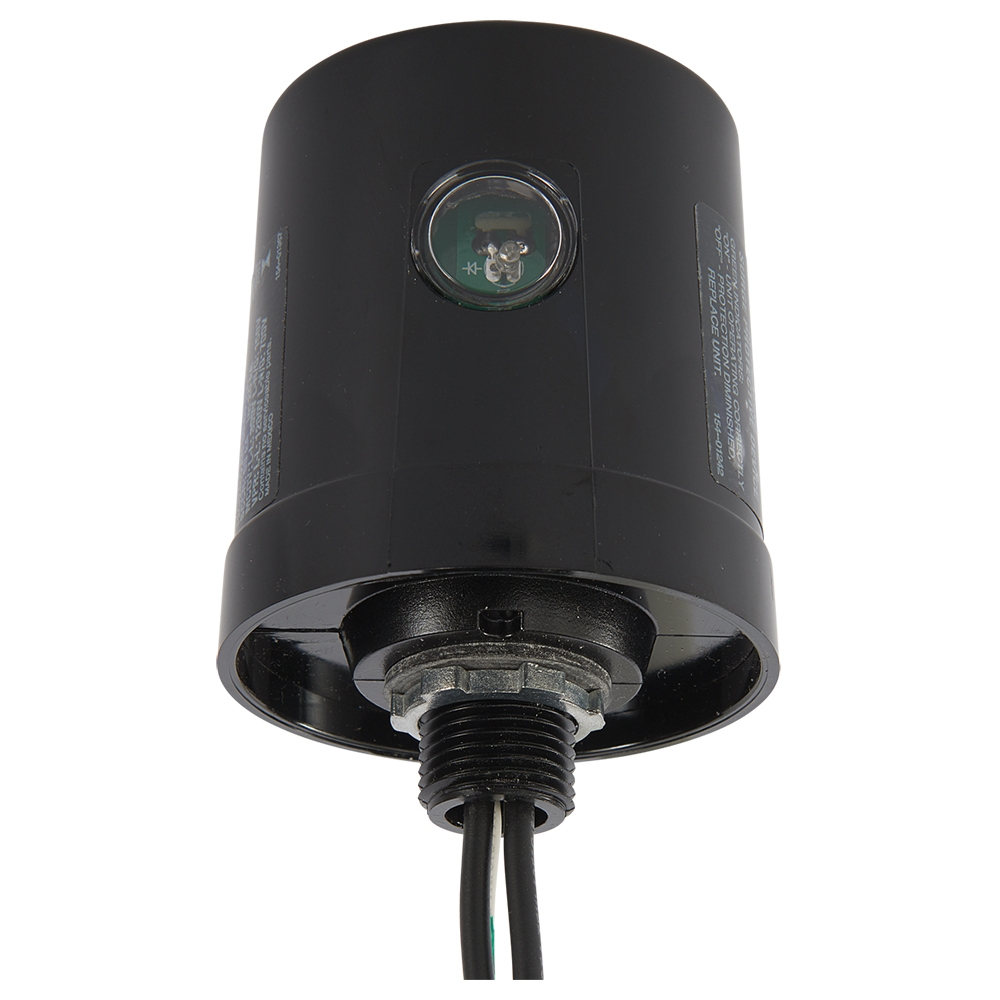

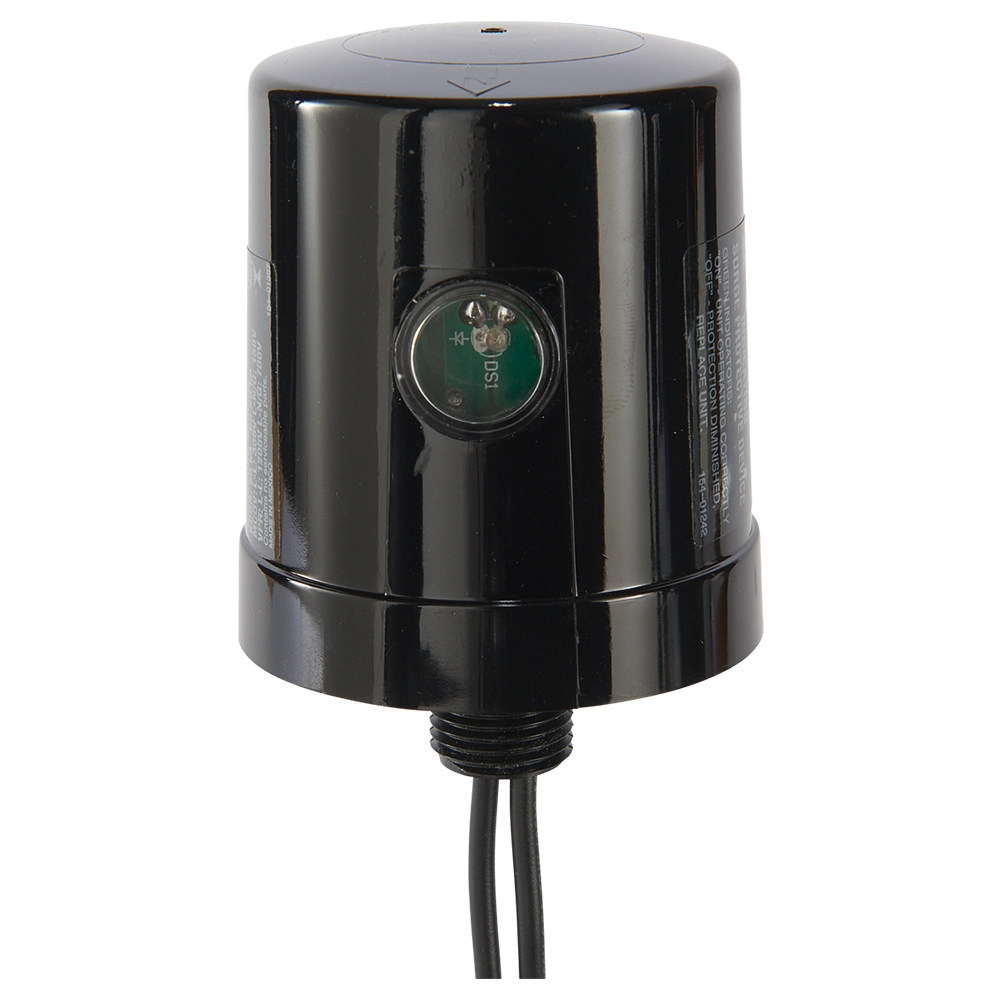

Intermatic AG4803C3 277/480V ARRESTER GUARD

Manufacturer: Intermatic, Inc | Catalog # AG4803C3 | Cooper Electric Part # 540237
$268.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls, and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449 3rd edition.

Technical Information

Applications
Distribution Panel,Service Entrance
Connection Type
18 IN Lead
Enclosure Rating
4
Enclosure Type
Type 4
Input Voltage
277/480 V
Material
PolyCarbonate
Max Operating Temperature
185 degrees F
Min Operating Temperature
-31 degrees F
Nominal Discharge Current
20 KAMP
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
140 degrees F
Size
1/2 IN, 12.7 MM
Standard
CSA - UL 1449 3rd Edtion
TC Connection
18 IN Lead
Type
Type 1/Type 2 Surge Protective Device
Voltage
277/480 Volt
Wire Length
457.2 mm

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275124479
Color
Black
GTiN
00078275124479
Product Series
AG
Product UPC
07827512447

Dimensions

Height
4.188 Inch
Warranty Length
1 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Six modes of protection
  • TPMOV® surge protection technology
  • Green LED protection indicator
  • Type 4X watertight, plastic enclosure for outdoor installations
  • UV-resistant polycarbonate housing
  • 1?2\" threaded nipple for 7?8\" nominal conduit knockout
  • 1-year product warranty
  • UL Listed to ANSI/UL 1449 5th edition
