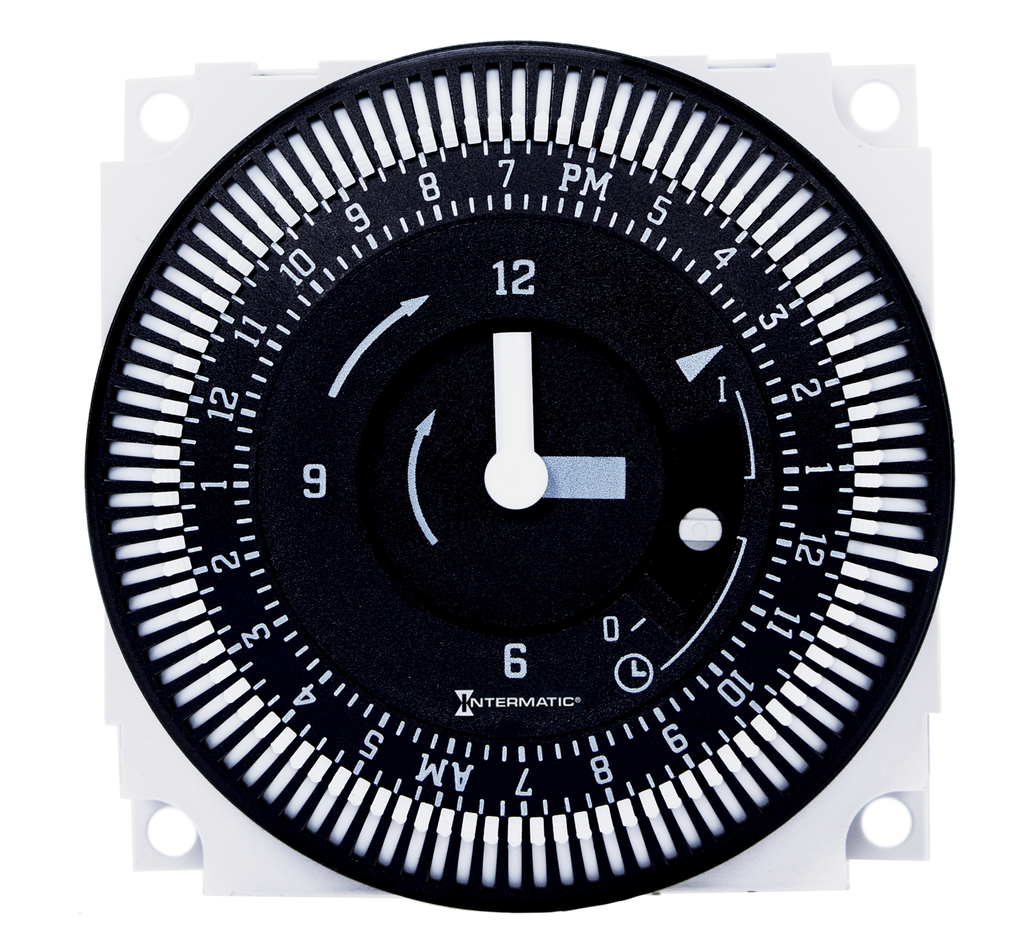

Product image for Intermatic FM1STUZH-120U 24HR TIMER MOD MNL OR SW 21A SPDT 120V
Email

Intermatic FM1STUZH-120U 24HR TIMER MOD MNL OR SW 21A SPDT 120V

Manufacturer: Intermatic, Inc | Catalog # FM1STUZH-120U | Cooper Electric Part # 540236
$106.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The FM1 Series Timer Modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.

Technical Information

Action
SPDT
Amperage
21 Amp
Applications
For HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications, Robust Applications
Connection Type
1/4 In Quick Connect
Contact Configuration
SPDT - 1 NO, 1 NC
Contact Rating
21 A at 120 - 250 VAC
Frequency
50/60 Hz
Max Operating Temperature
185 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Panel Mount
Number of Poles
1 Pole
Operating Temperature
185 degrees F
Power Consumption
1 VA, 1350 W
Power Source
1 hp at 120 VAC, 2 hp at 250 VAC
Size
2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Standard
CCSAus Certified LR3730,CE Certified,CULus Recognized #10694,HVACR
Switch Type
SPDT
TC Connection
1/4 IN Quick Connect
Temperature Rating
-40 to 185 degrees F
Type
Synchronous Electromechanical
Voltage
120 Volt
Wattage
1350 Watt

Manufacturer Information

Brand
Grasslin
Sub Brand
Grasslin

General Product Info

12-Digit UPC
614573121040
Color
Black
GTiN
00078275152847
Product UPC
61457312104

Dimensions

Depth
1-1/4 Inch
Height
2.359 Inch
Warranty Length
1 yr
Width
2.359 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 21 A SPDT Switch
  • Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
  • 72-hour carry-over battery backup on Q models
  • Noise immune ideal for robust applications
  • Synchronous drive or quartz drive Q models with self-recharging battery backup
  • True clock face, easy-to-set
  • Available with or without override
  • Compact size
  • Clear plastic cover (DC-FME-A), sold separately
  • Standalone or with indoor/outdoor enclosure, sold separately
