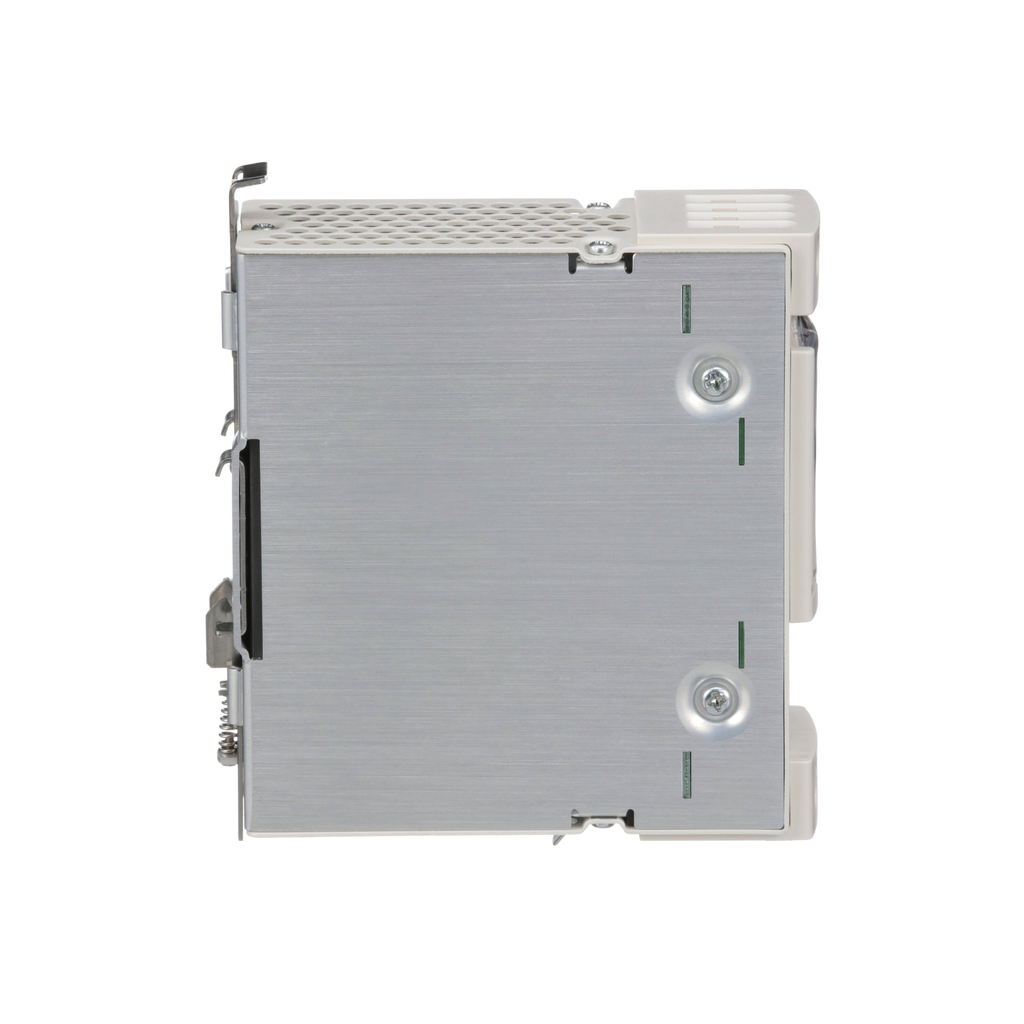

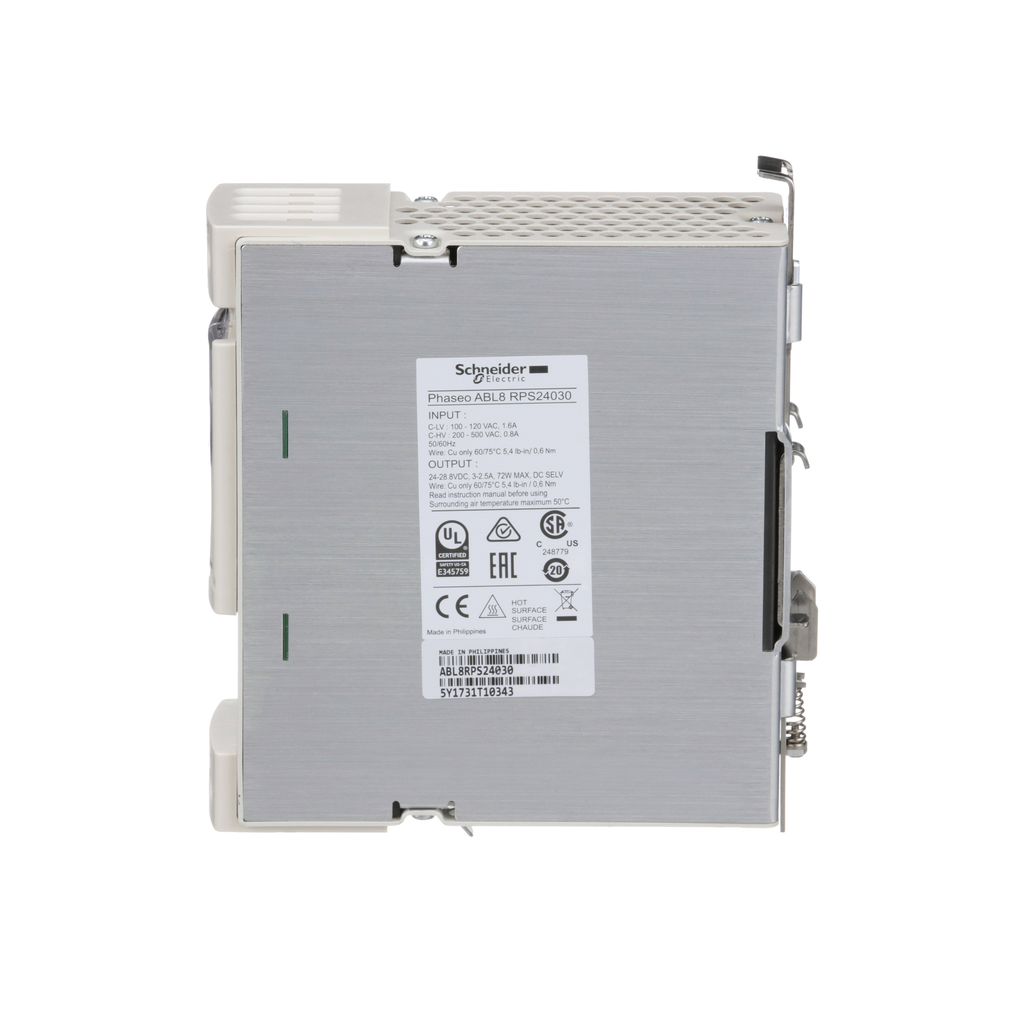

Product image for Square D ABL8RPS24030 200 to 500 VAC Input 24 VDC Output 3 Amp 1-Phase Switch Mode Power Supply
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Square D ABL8RPS24030 200 to 500 VAC Input 24 VDC Output 3 Amp 1-Phase Switch Mode Power Supply

Manufacturer: Square-D / Schneider | Catalog # ABL8RPS24030 | Cooper Electric Part # 536752
$307.97 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens friday 7:00am et
1 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Spec Sheet Product Brochure
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 3A at 24V DC and a rated power output of 72W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 44mm-wide. It weighs 0,300kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Technical Information

Applications
ABL8R
Dielectric Strength
3500 V
Efficiency
87 %
Input Voltage
...120 V
Max Output Current
3 A
Net Weight
0.3 kg
Operating Temperature
50-60 degrees C With Derating Factor) || -25-50 degrees C Without)
Output Voltage
24 V
Power Factor
0.51 at 240 V AC;0.59 at 120 V AC
Rated Power
72 W
Standard
CSA C22.2 No 60950-1,EN/IEC 62368-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
#8 TO #22 AWG
Type
Regulated switch mode;Power supply
Voltage
240 Volt
Wattage
7.8 Watt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
PHASEO

General Product Info

12-Digit UPC
338911940567
GTiN
03389119405607
Product UPC
78590168585
Weight
0.66 lb

Dimensions

Depth
125 mm
Height
4.92 in
Length
4.92 Inch
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCSAus,EAC,KC,RCM,UL
Country of Origin
Philippines
Features
  • Universal 100-240Vac input voltage to match any application
  • Avoid disturbances, restart or shutdowns on your automation system, even in case of micro-breaks and voltage sags
  • Automatic reset allows short-term faults to be cleared and ease systems to restart
  • Power reserve allowing to deliver a current of 150% its nominal rating for a short time
  • Finely adjust the output voltage to take into account the voltage at the end of your auxiliary control circuit
  • Instant fault diagnosis thanks to front side LED indicators
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • M9F22202
  • GB2CD07
  • GV2RT06
