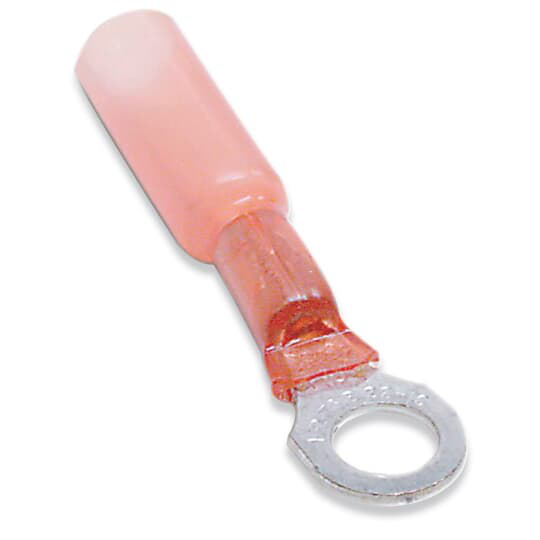

Product image for ABB RAS18-8X HEAT-SHR RING TERM, 22
Image thumbnail 0
Image thumbnail 1
Email

ABB RAS18-8X HEAT-SHR RING TERM, 22

Manufacturer: ABB | Thomas & Betts | Catalog # RAS18-8X | Cooper Electric Part # 534173
$339.44/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Heat Shrinkable Ring Terminal, Length 1.26 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RAS
Type
Long Sleeve, Heat Shrink
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210703305
Color
Red
Finish
Electro Tin Plated
GTiN
00786210703305
Product UPC
78621070330

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Notes
  • Not available on Mylar Tape.
Certifications
  • UL
  • CSA
Features
  • These terminals are self-insulated. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
